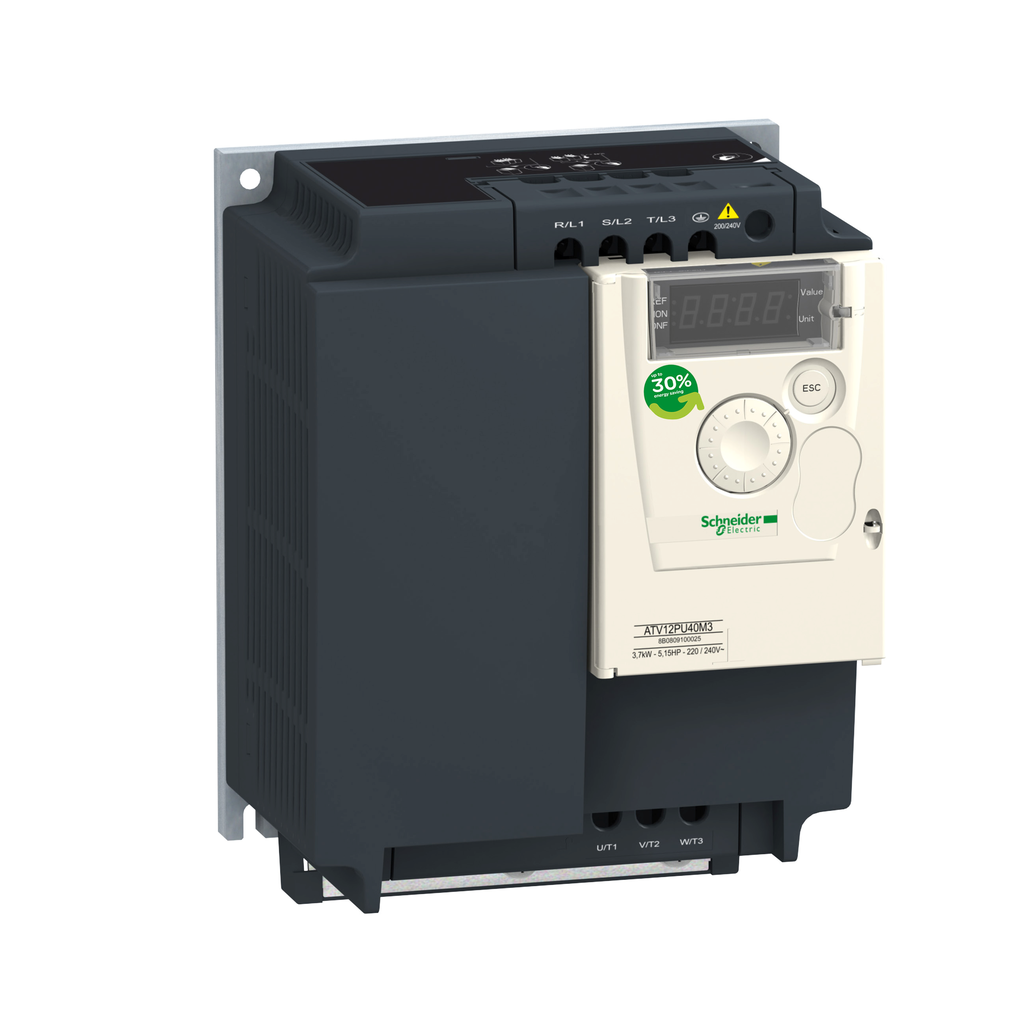

variable speed drive ATV12 - 3kW - 3 hp - 3ph - 200..240V - on base plate | Mayer Electric

SQUARE D . SQDATV12PU30M3

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product Namevariable speed drive ATV12 - 3kW - 3 hp - 3ph - 200..240V - on base plate | Mayer Electric
UPC3606480071256
Weight1.6
WeightUnitkg
Weight_AttribNet Weight
depth, length100.2
height184.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-variable-speed-drive-ATV12-3kW-3-hp-3ph-200-240V-on-base-plate-3606480071256
jsonUrlData269e74eac-7205-4cc8-ba49-aeea0054c417
length_AttribDepth
moq, multiple, tierMinQty1, Relay Output Number, Analogue Input Number, Analogue Output Number1
MPN, SKUSQDATV12PU30M3
qtyInStock0
tierPrice1513.68
width140.0
width_AttribWidth
Range Of ProductAltivar 12
Product Or Component Typevariable speed drive
Ip Degree Of ProtectionIP20
Motor Power Kw3 kW
[Us] Rated Supply Voltage200...240 V - 15...10 %
Communication Port ProtocolModbus
Mounting Modecabinet mount
Nominal Output Current, Base Load Current At High Overload12.2 A
Product Specific Applicationsimple machine
Emc Filterwithout EMC filter
Supply Frequency50/60 Hz +/- 5 %
Warranty18 months
Prospective Line Isc5 kA
Network Frequency50-60 Hz
Maximum Output Frequency, Nominal Switching Frequency4 kHz
With Safety Function Safe Brake Management (Sbc/Sbt), With Safety Function Safe Speed Monitor (Ssm), 4 Quadrant Operation Possible, With Safety Function Safe Torque Off (Sto), With Safety Function Safe Direction (Sdi), With Safety Function Safe Position (Sp), With Safety Function Safely Limited Position (Slp), With Safety Function Safe Operating Stop (Sos), With Safety Function Safe Programmable Logic, Brake Chopper Integrated, With Sft Fct Safe Stop 2 (Ss2), With Safety Function Safe Stop 1 (Ss1), With Safety Function Safely Limited Speed (Sls)false
Height184 mm
Power Dissipation In Wnatural 94.0 W
Line Current19.0 A 100 V heavy duty) || 15.9 A 120 V heavy duty)
Acceleration And Deceleration RampsS || U || linear from 0 to 999.9 s
Time Constant20 ms +/- 1 ms for reference change
Maximum Output Voltage240 V
Speed Drive Output Frequency0.5-400 Hz
Transmission FrameRTU
Asynchronous Motor Control Profilesensorless flux vector control || voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio
Transient Overtorque150-170 % of nominal motor torque depending on drive rating and type of motor
Data Format8 bits, configurable odd, even or no parity
Relative Symmetric Network Frequency Tolerance5 %
Apparent Power6.6 kVA 240 V heavy duty)
Net Weight1.6 kg
Type Of Polarizationno impedance
Frequency Resolutionanalog input converter A/D, 10 bits || display unit 0.1 Hz
Switching Frequency2...16 kHz adjustable || 4...16 kHz with derating factor
Maximum Transient Current18.3 A 60 s heavy duty) || 20.1 A 2 s heavy duty)
Communication Serviceread holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
Connector Type1 RJ45
Motor Slip Compensationpreset in factory || adjustable
Discrete Output Number, Pollution Degree2
Physical Interface2-wire RS 485
Method Of Accessserver Modbus serial
Insulationelectrical between power and control
Tightening Torque1.2 N.m
Number Of Addresses1-247
Continuous Output Current12.2 A 4 kHz
Speed Range1-20
Discrete Input Number4
Linearity Error+/- 0.3 % of maximum value analogue input
Quantity Per Setset of 1
Width140 mm
Transmission Rate9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Braking To Standstillby DC injection
Depth100.2 mm
Sampling Duration20 ms +/- 1 ms logic input || 10 ms analogue input
Rohs Exemption Information, Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsNOM || CSA || C-tick || UL || GOST || RCM || KC
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Acceleration Under Shock Impact (During Operation)150 m/s? at 11 ms
StandardsUL 508C || UL 618000-5-1 || EN/IEC 61800-5-1 || EN/IEC 61800-3
Ambient Air Temperature For Operation-10-40 ?C without derating || 40-60 ?C with current derating 2.2 % per ?C
Vibration Resistance1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6
Shock Resistance15 gn 11 ms EN/IEC 60068-2-27
MarkingCE
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s? at 13...200 Hz
Noise Level0 dB
Regulation Loopadjustable PID regulator
Ambient Air Temperature For Storage, Ambient Air Transport Temperature-25-70 ?C
Relative Humidity5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Assembly Styleon base plate
Operating Positionvertical +/- 10 degree
Overvoltage Categoryclass III
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Electromagnetic Emissionradiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions EN/IEC 61800-3

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDATV12PU30M3111 @ $513.68
