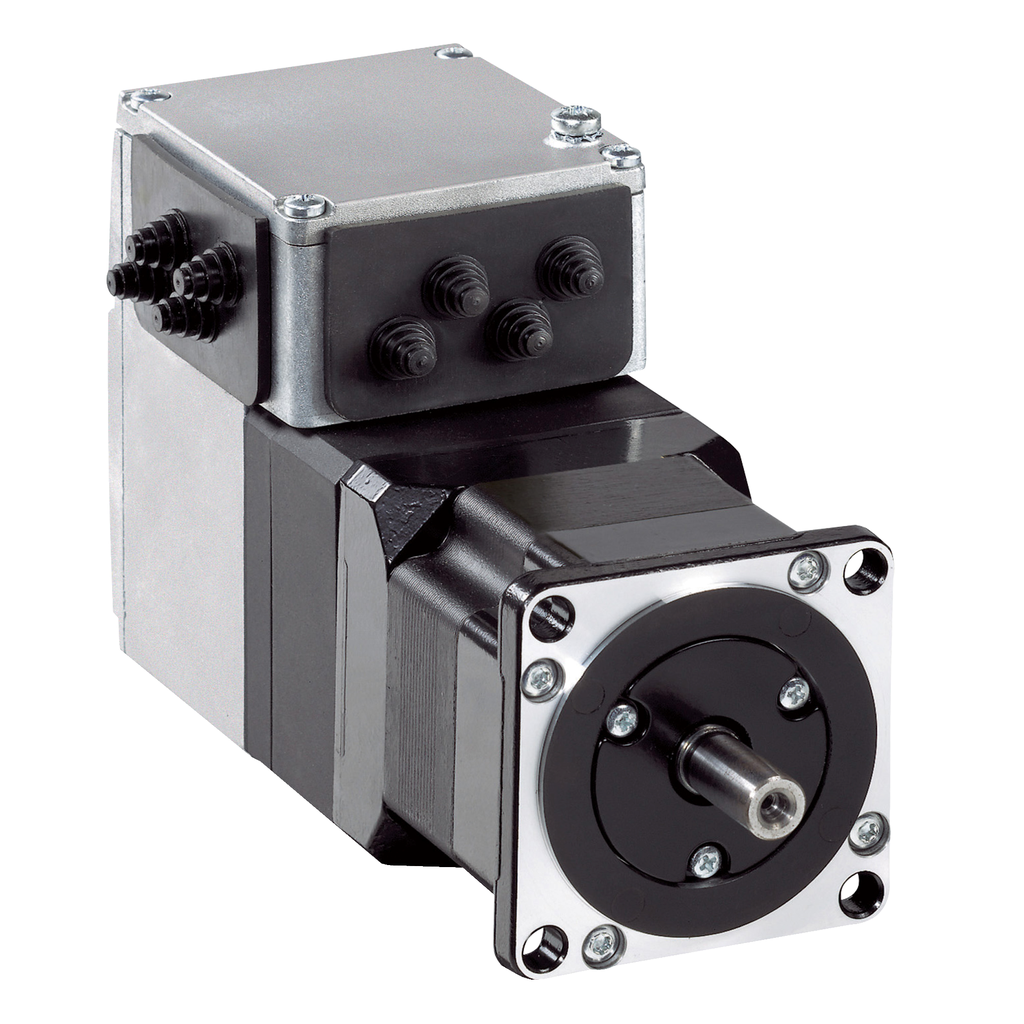

integrated drive ILA with servo motor - 24..36 V - CANopen - indus connector | Mayer Electric

SQUARE D . SQDILA1F572PC1F0

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product Nameintegrated drive ILA with servo motor - 24..36 V - CANopen - indus connector | Mayer Electric
UPC3389119225540
Weight1.7
WeightUnitkg
Weight_AttribNet Weight
diameter, height66.6
height_AttribCircle Diameter Of The Mounting Holes
jsonUrlData/Product/SQUARE-D-integrated-drive-ILA-with-servo-motor-24-36-V-CANopen-indus-connector-3389119225540
jsonUrlData27db7a984-4cd2-44bd-8542-aeea0055fb35
length209.3
length_AttribLength
moq, multiple, tierMinQty11
MPN, SKUSQDILA1F572PC1F0
qtyInStock0
tierPrice12355.39
width1.6
width_AttribCentring Collar Depth
Range Of ProductLexium integrated drive
Holding Torque1.2 N.m holding brake
Network TypeDC
Winding Typemedium speed of rotation and medium torque
Number Of Motor Poles6
Holding Brakewith
Product Or Component Typemotion integrated drive
Phasesingle phase
Length209.3 mm
[Us] Rated Supply Voltage36 V || 24 V
Communication InterfaceCANopen DS301, Integrated
Gear Box Typewithout
Motor TypeAC Synchronous Servo Motor
Nominal Speed2600 rpm 24 V || 4300 rpm 36 V
Electrical Connectionindustrial connector
Nominal Torque, Continuous Stall Torque0.45 N.m
Device Short NameILA
Warranty18 months
Circle Diameter Of The Mounting Holes66.6 mm
Current Consumption7000 mA maximum continuous || 8500 mA peak
Maximum Switching Current100 mA per output || 200 mA total
Maximum Radial Force Fr107 N
Mounting Supportflange
Number Of Motor Stacks2
Rotor Inertia0.25 kg.cm?
Centring Collar Depth1.6 mm
Discrete Input Current10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Second Shaftwithout second shaft end
MarkingCE
Shaft Length20 mm
Brake Pull-In Power10 W
Net Weight1.7 kg
Voltage State 0 Guaranteed-3...4.5 V
Centring Collar Diameter50 mm
Motor Flange Size57 mm
Brake Release Time14 ms
Peak Stall Torque0.72 N.m
Number Of Mounting Holes4
Shaft Diameter9 mm
Discrete Output Voltage23...25 V
Supply Voltage Limits18-40 V
Mounting Holes Diameter5.2 mm
Speed Feedback Resolution16384 points/turn x 4096 turns
Type Of Coolingnatural convection
Service Life In Hours20000 h bearing
Shaft Enduntapped
Feedback Typesingle turn encoder
Protection Typesafe torque off || overload of output voltage || short circuit of the output voltage
Transmission Rate50, 100, 125, 250, 500, 800 and 1000 kbauds
Accuracy Error+/- 0.05 ?
Brake Application Time13 ms
Input/Output Type4 signals (each be used as input or output)
Maximum Axial Force Fa104 N force pressure) || 104 N tensile force)
Associated Fuse Rating10 A
Voltage State 1 Guaranteed15...30 V
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP2011004EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI2011004EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationscUL || T?V || UL
Standards : IEC 61800-3, Ed 2 || EN 61800-3 : 2001-02 || IEC 60072-1 || EN 61800-32001, second environment || EN/IEC 61800-3 || EN 50347 || EN/IEC 50178
Ambient Air Temperature For Operation50-65 ?C with power derating of 2 % per ?C) || 0-50 ?C without derating)
Shock Resistance150 m/s? 1000 shocks EN/IEC 60068-2-29
Vibration Resistance20 m/s? 10-500 Hz) 10 cycles EN/IEC 60068-2-6
Permissible Ambient Air Temperature Around The Device105 ?C power amplifier || 110 ?C motor
Ambient Air Temperature For Storage-25-70 ?C
Relative Humidity15-85 % without condensation
Ip Degree Of Protectionshaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDILA1F572PC1F0111 @ $2355.39
