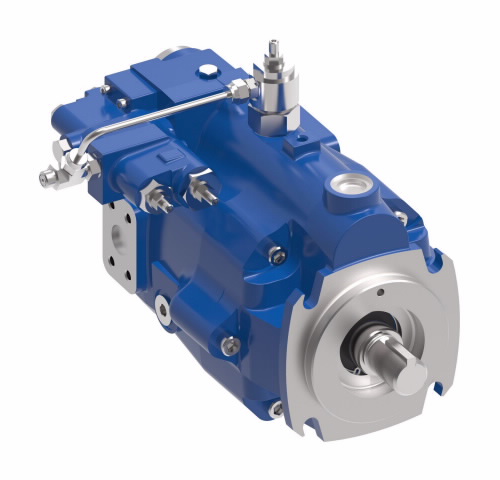

DANFOSS . 123AL02092A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDANFOSS
Extra Product NameSunSource | 123AL02092A DANFOSS Industrial Hydraulics | SunSource.com
jsonUrlData8ec43322-0824-4a87-a0a2-ae2800097221
keywordsPVM106ER09GS02AAA23000001A0A 123AL02092A
moq, multiple, tierMinQty11
MPN, SKU123AL02092A
qtyInStock, tierPrice10
snippet123AL02092A DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
ApplicationMining Machinery, Injection Molding Machines, Metal Forming Machines, Oil and Gas Equipment, Conveyor Lines, Primary Metals, Metal Cutting Equipment
Bearing life at rated pressure8000 hour
Code titleVariable Displacement
Cold start temperature limit104 degree Celsius
Controller typePressure Compensator
Design code11A
Displacement131.1 cubic centimetre per revolution
EccnEAR99
End cover materialDuctile Iron
Fluid cleanlinessISO 18/13
Fluid compatibility13SAE J183 FEB80
Housing materialCast Iron
Icc2Industrial - OC Piston Pumps
IdentificationNone
Input mounting flangeSAE J744-127-4 (C, 4-Bolt)
Input shaftSAE J744-38-1, SAE C-C, Straight Keyed
Input speed at 0 8 bar absolute, Input speed rated1800 revolutions per minute
Input speed at 1 0 bar absolute, Input speed maximum2000 revolutions per minute
Input speed minimum0 revolutions per minute
Main port size locationSide
Maximum case pressure, Peak pressure rating350 bar
Maximum input power113 kilowatt
Maximum recommended oil viscosity40 centistokes
Minimum recommended oil viscosity16 centistokes
Model CodePVM131ER10GS02AAA07000001A0A
Noise64 decibel
Nominal pressure rating315 bar
PaintBlue
Pressure compensator setting70 bar
Product height9.87
Product height uom, Product length uom, Product width uominch
Product length16.98
Product trade namePVM Series
Product weight145
Product weight uompound
Product width9.55
Shaft rotationRight
Special features17Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Sub brandVickers
Valve plateIndustrial
Vsd readyNo
