TB WOOD'S . AK5134

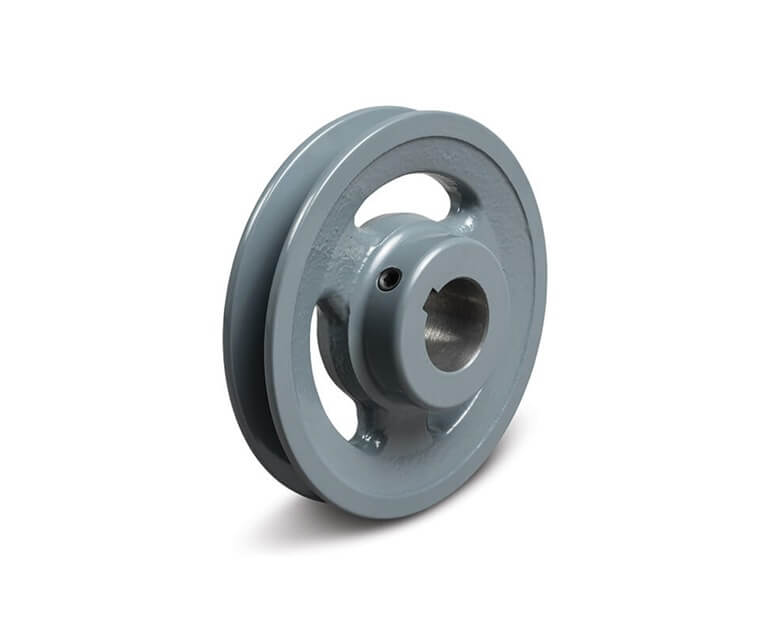

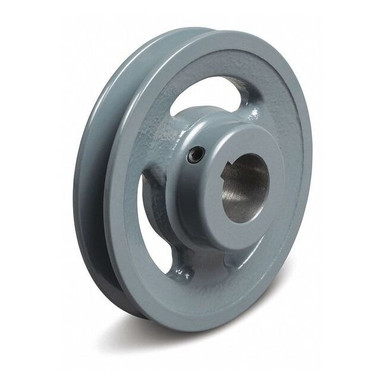

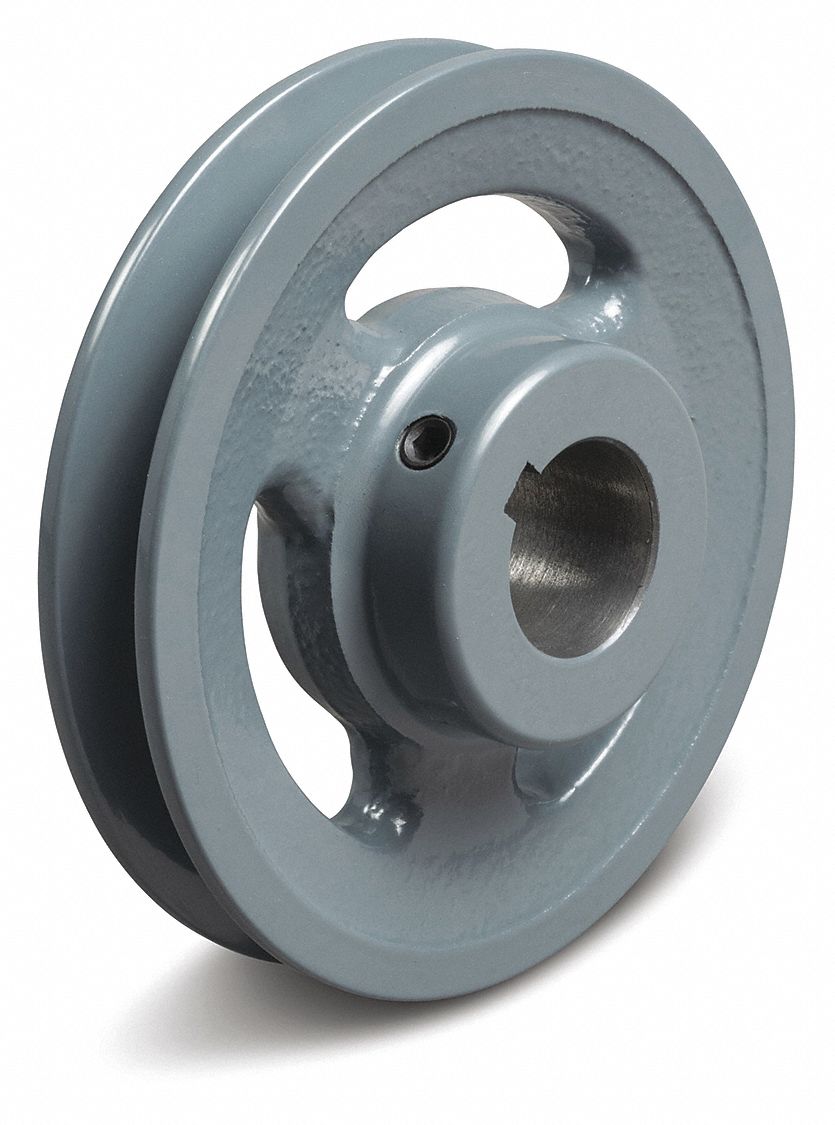

FHPBoredtosize V-Belt Sheave, Cast Iron, 3L Type Belt, 2.0625 inch Hub Dia. | AE6FLT | Worldwide Delivery | +44 203 287 5224 | [email protected]

TB WOOD'S . AK5134

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB WOOD'S
DimensionUnitinch
UNSPSC31171804
Weight2.2
WeightUnitlbs
Weight_AttribWeight
height0.09375
height_AttribKeyway Depth
length1.15625
length_AttribLength through Bore
moq, multiple, tierMinQty1, Number of Grooves1
MPNAK5134
qtyInStock0
SKU5RJD4
tierPrice145.81
width1.25
width_AttribOverall Width
ItemStandard V-Belt Pulley
3L Pitch Diameter4.61 in
3V Pitch Diameter, 3VX Pitch Diameter, 5V Pitch Diameter, 5VX Pitch Diameter, B Pitch Diameter, BX Pitch Diameter, C Pitch Diameter, CX Pitch DiameterNot Applicable
4L Pitch Diameter, A Pitch Diameter, AX Pitch Diameter, Outside Diameter, Pitch Diameter4.95 in
Bore Diameter3/4 in
Bore TypeFixed
StandardsISO 9001:2015
For Belt Trade Size3L, 4L, AX, A
For V-Belt TypeClassical, Cogged
MaterialCast Iron
Maximum Bore Diameter1 5/16 in
Face Width0.75 in
Hub Projection0.47 in
Hub TypeOne Side
IncludesSet Screw
KeywayYes
Keyway Depth3/32 in
Keyway Width3/16 in
Length through Bore1 5/32 in
Material FabricationCast
Overall Width1 1/4 in

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Grainger5RJD4111 @ $45.81
Raptor SuppliesAE6FLT111 @ $63.98
AmazonTPB003N17KZQ111 @ $30.33
Applied Industrial10078373711
grainger.caWWG5RJD4111 @ $30.63
Guardian822234881-211 @ $29.05
MRO Supply346561221 @ $48.12
simsupply.comZO-G287954515711 @ $32.23
National Supply Network822234881-211 @ $26.90
ZoroG2879545146211 @ $22.19
