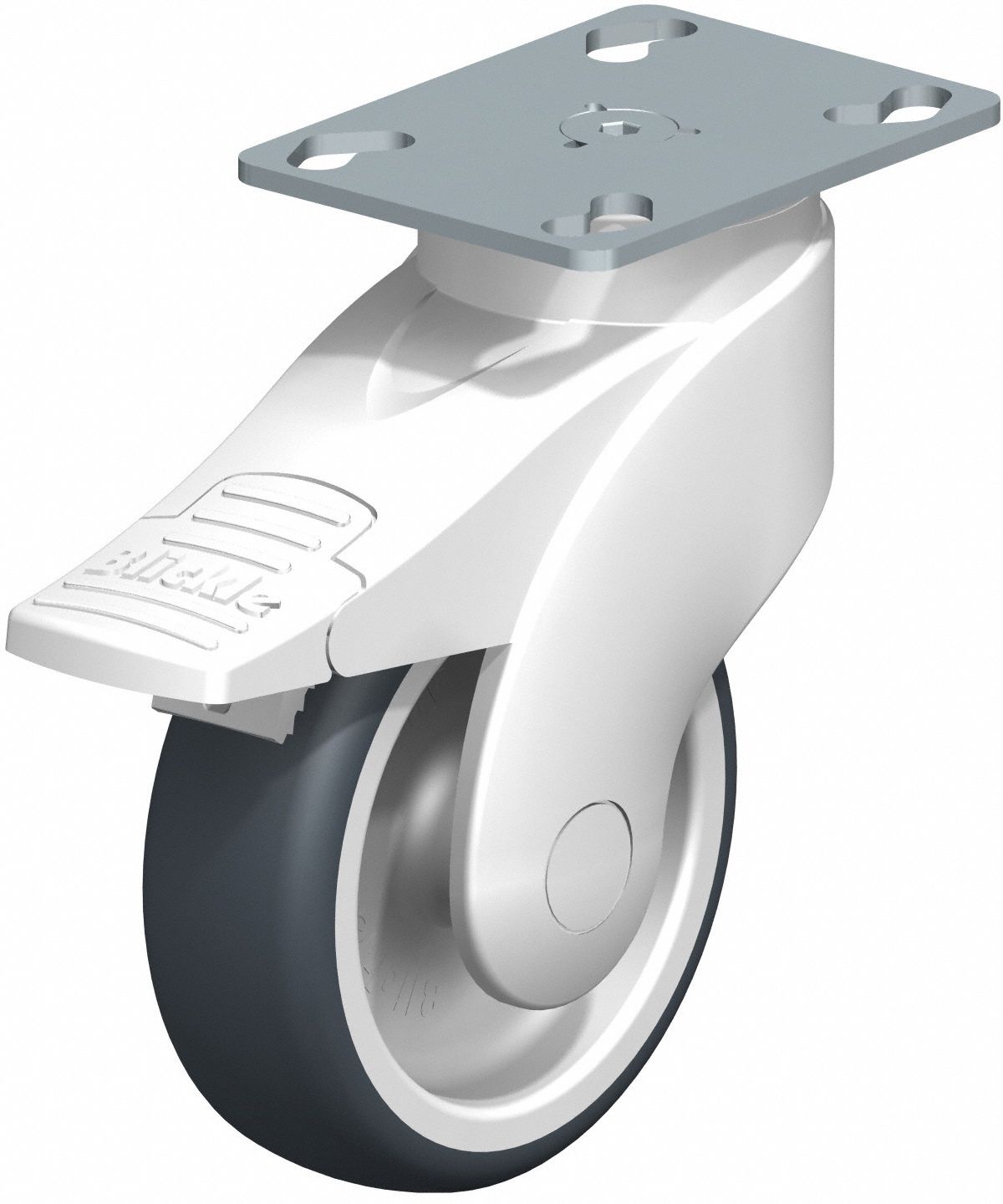

SWIVEL CASTER,TP RUBBER,5 IN WHEEL DIA.

WAVE . LWKX-TPA 126G-FI-PX25

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, SeriesWAVE
DimensionUnitinch
Extra Product NameSWIVEL CASTER,TP RUBBER,5 IN WHEEL DIA.
UNSPSC31160000
Weight1.4
WeightUnitlbs
diameter, length5.0
height75.6
height_AttribMounting Height
length_AttribWheel Dia.
moq, multiple, tierMinQty1, Number of Wheels1
MPNLWKX-TPA 126G-FI-PX25
originalCurrency{'currency': 'CAD', 'tierPrice1': '135.58'}
qtyInStock0
SKUWHLXTPA126GFIPX25
tierPrice198.40477748
width1.25
width_AttribWheel Width
ItemSwivel Caster
Swivel Construction, Caster Sub-TypeSwivel
Wheel Width, Overall Wheel Width1.25 in
Mounting Height6.3' in
Wheel/Tread Hardness RatingNot Rated
Wheel/Tread ColourGrey
Wheel Bearing MaterialSteel
Swivel Lead1.5 in
Mounting Plate Size2 1/2 in x 3 1/2 in
Includes Mounting Fasteners, Includes Thread Guards, Includes Spanner Bushing, NSF Listed, ESD ConductiveNo
Outside Bolt Hole Spacing2" x 2-15/16"
Number of Mounting Holes4
Swivel Lock Type, Caster Brake TypeTotal Lock
Wheel Core TypeSolid
Brake LocationFace
Caster Frame MaterialNylon
Tread ShapeFlat Tread
Core Colour, Frame ColourGray
Operating Temperature Range-10 Degrees to 70 Degrees C, 14 Degrees to 158 Degrees F
ApplicationHospital Carts
Wheel Dia5 in
Wheel/Tread Material, Wheel TypeThermoplastic Rubber
Wheel/Tread Hardness85 Shore A
Wheel Bearing Type, Swivel Raceway TypePrecision Ball
Swivel Radius1 11/16"
Mounting Plate Thickness0.118
Inside Bolt Hole Spacing1-3/4" x 2-11/16"
Mounting Bolt Dia0.33 in
Caster Mounting TypePlate
Swivel Bearing Seal TypeSealed
For Surface TypeAll Surface Types
Wheel Core MaterialHD Polyolefin
Breakaway Force0.1 lbs.
Non-MarkingYes
Replacement WheelTPA 126/12G
FeaturesImpact Resistant, Maintenance Free
