Zoro Select

Zoro Select . B-VLE 250K

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameZoro Select
DimensionUnitinch
GraingerSku22N201
UPCNone
UnitOfMeasureEA
Weight17.1
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginDE
extendedLead, moq, multiple, tierMinQty1, Number of Wheels1
height12
jsonUrlData924526ffbdad25e5923b
length10
MPNB-VLE 250K
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG4538107
tierPrice1281.26
urlhttps://www.zoro.com/zoro-select-rigd-sold-rubr-whl-cstr-9-78-in-1000-lb-b-vle-250k/i/G4538107/
width5

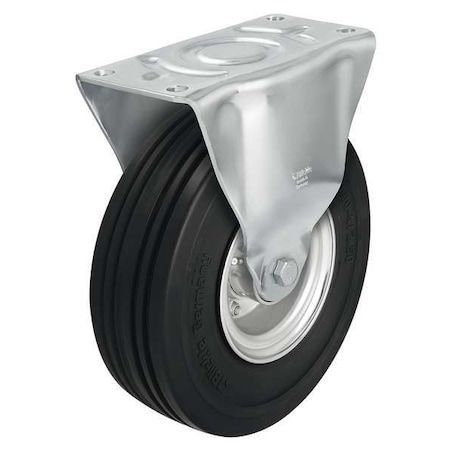

ItemRigid Plate Caster
Caster Sub-TypeRigid
Caster Product GroupRigid Caster
Load Rating990 lb
Wheel Dia250 mm
Wheel Width85 mm
Wheel/Tread MaterialRubber
Wheel/Tread Hardness RatingSoft
Wheel Bearing Type, Caster Wheel BearingsPrecision Ball
Mounting Height11 5/8 in
Mounting Plate Size4-3/4 in x 8-11/16 in
Mounting Plate Bolt Hole Pattern, Plate Caster Bolt Hole Pattern, Caster Plate Hole PatternD
Inside Bolt Hole Spacing, Outside Bolt Hole Spacing75 mm x 190 mm
Mounting Bolt DiaM14
Number of Mounting Holes4
Caster Brake Type, Caster Break TypeNo Brake Included
Non-Marking, Caster Temp Range Available, Includes Thread Guards, Extended Lead, Caster Brake Included, ESD ConductiveNo
Frame FinishZinc Plated
Caster Frame Material, Frame Material, Hub MaterialSteel
Wheel Core MaterialPressed Steel
Core ColorSilver
ApplicationRetail, Industrial, Commercial
StandardsRoHS, ICWM
IncludesTop Grease Seal
Caster Load Rating RangeMedium Duty
Overall Height295 mm
Tread, Tread ShapeRibbed
Plate Thickness5/32"
Caster Wheel/Tread MaterialSuper Elastic Solid Rubber
Hub ColorGray
Plate Size4-3/4 x 8-11/16"
Load Rating Range-
Wheel/Tread Hardness70 Shore A
Replacement WheelMfr. No. VLE 250/20-75K
Tread ColorBlack
Caster Plate Thickness4 mm
Caster Swivel Lock TypeNo Lock Included
Hub TypeCentered
Caster Plate Size120 mm x 220 mm
Caster Mounting TypePlate
Hub Width2-15/16 in
Tire Rim Dia4"
Caster Temp Range-25 Degrees To 80 Degrees C
Ply2
Tire Thickness2-1/2"
Load Capacity450 kg
Operating Temperature Range-20 Degrees to 180 Degrees F
Resistant ToChemical Resistance To Many Aggressive Substances, Except Oils
System of MeasurementMetric
SeriesB Series
Country of Origin (subject to change)Germany

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG4538107111 @ $281.26
ZoroG76288741311 @ $299.66
grainger.caWWG22N201111 @ $433.53
