| Brand name, Manufacturer name, Manufacturer | Uniview |
|---|
| Condition | NEWCONDITION |
|---|
| DimensionUnit | m |
|---|

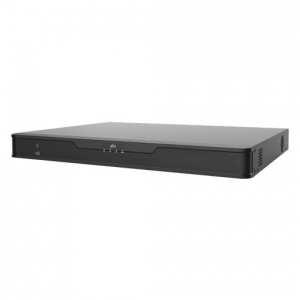

| Extra Product Name | Buy Uniview NVR304-32S, 4 SATA Series 32-Chanel Network Video Recorder - Prime Buy |
|---|
| Weight | 3.15 |
|---|
| WeightUnit | lbs |
|---|
| Weight_Attrib | Weight (without HDD) |
|---|
| moq, multiple, tierMinQty1 | 1 |
|---|
| MPN, SKU | NVR304-32S |
|---|
| qtyInStock | 2 Weeks Factory Lead Time |
|---|
| tierPrice1 | 569.00 |
|---|
| width | 160.0 |
|---|
| width_Attrib | Incoming bandwidth |
|---|
| IP Video Input | 32-ch |
|---|
| Two-Way Audio Input, Audio Output | 1-ch, RCA |
|---|
| Incoming bandwidth | 160Mbps |
|---|
| Outgoing bandwidth | 64Mbps |
|---|
| Remote Users | 128 |
|---|
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
|---|
| Audio Compression | G.711A, G.711U |
|---|
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF |
|---|
| Synchronous Playback | 16ch |
|---|
| Liveview Display | 1/4/6/8/9/16/25/36 |
|---|
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
|---|
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
|---|
| Decoding Format | Ultra 265/H.265/H.264 |
|---|
| Live View/ Playback | 8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF |
|---|
| Capability | 2 x 4K at 30, 3 x 5MP at 30, 4 x 4MP at 30, 5 x 3MP at 30, 8 x 1080p at 30, 16 x 720p at 30, 32 x D1 |
|---|
| SATA | 4 SATA interfaces |
|---|
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
|---|
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection (UMD) |
|---|
| VCA Search | Behavior Search |
|---|
| People Counting | People Flow Counting, Crowd Density Monitoring |
|---|
| Smart Intrusion Prevention (SIP), UMD by Camera | Total 8-ch |
|---|
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
|---|
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|---|
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|---|
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0 |
|---|
| RS232, RS485, Alarm In, Alarm Out | NA |
|---|
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
|---|
| Dimensions (WxDxH) | 440mm x 344mm x50mm (17.3" x 13.5" x2.0") |
|---|
| Weight (without HDD) | ≤ 3.15 Kg (6.94 lb) |
|---|
| Certification | CE, FCC, UL, RoHS, WEEE |
|---|
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
|---|
| FCC | Part15 Subpart B, ANSI C63.4 |
|---|
