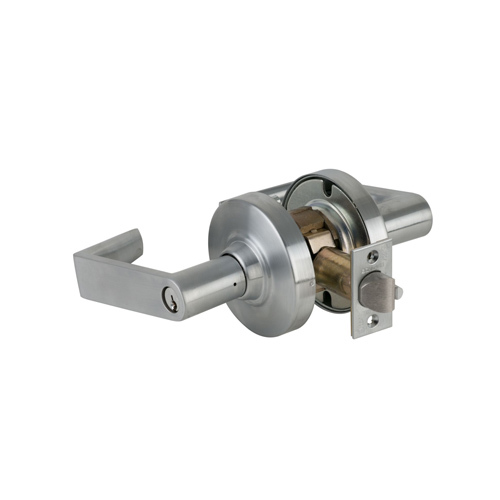

Schlage Commercial ND92PD RHO 626 ND Series Vandlgard Entry C Keyway Rhodes with 13-247 Latch 10-025 Strike Satin Chrome Finish

ND SeriesCylindrical Locks ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles. All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, c

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial ND92PD RHO 626 ND Series Vandlgard Entry C Keyway Rhodes with 13-247 Latch 10-025 Strike Satin Chrome Finish
atoms, moq, multiple, tierMinQty11
diameter, height, width3.4375
height_Attrib, width_AttribRose Diameter
length, Lever Length4.5625
length_AttribLever Length-Inches
MPNND92PD RHO 626
qtyInStock-2
qtySourceFieldMap
tierPrice1657.3
Finish, Finish Description, Finish FamilySatin Chrome
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
DesignRhodes
Function92-Vandlgard Entrance
Color Code626/US26D
Fire Rated3 Hours {A}
OriginMexico
BAA QualifiedYes
Package Height4.75
Package Length9.5
Package Volume372.28125
Package Width8.25
HandingReversible
GradeANSI/BHMA Grade 1
KeywaySchlage C
Cylinder TypeP-6 Pin Conventional (Keyed 5)
Lever StyleRHO-Rhodes
Keyblank GroupingSCHL-C-6-1
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
Projection2.9375
Door Thickness1 5/8" - 2 1/8"
Bore Size2.1250
Latch Number13-247
Strike Number10-025
ADA ApprovedFalse
Keying ChargesCCAM
Warranty10 year mechanical
Aluminium Bottle ContentsSwinging
ProductTypeManual
ApplicationHealthcare; Education; Government; Office; Retail; Other Commercial Applications
Handle TypeLever
Rose Diameter3-7/16 Inch
Latch Throw1/2 Inch
ANSI FunctionF109
Latch TypeDeadlatch
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Cylinder Type UsedConventional
Function DescriptionPushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Front Size1-1/8" x 2-1/4"
Function FamilyEntry/Entrance/Office
Strike Lip1-3/16 Inch
Product Projection2-15/16 Inch
Trim MaterialPressure Cast Zinc (Lever)
FeaturesHeavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Lever Length-Inches4.5625 Inch
Latch CornerSquare
Knob/Lever Size4-9/16 Inch
Latch Bolt MaterialStainless Steel
Lever Style FamilyStraight Return Lever
Sub-SeriesND92PD-RHO-626
Strike TypeANSI Strike
ADA CompliantYES
Strike Size1-1/4" x 4-7/8"
Cylinder MaterialBrass

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareND92PD RHO 6261-211 @ $657.30
