Extech

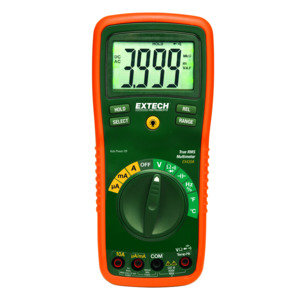

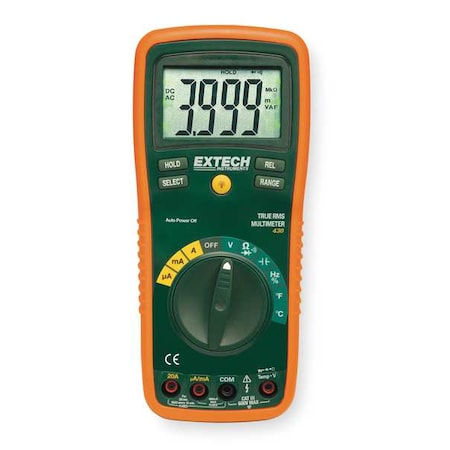

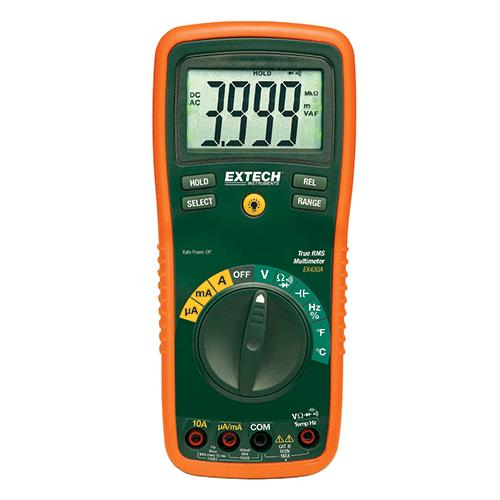

Extech True RMS Professional Multimeter EX430A-NIST. ✅Extech authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Extech . EX430A-NIST

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameExtech
DimensionUnitinch
GraingerSku1GUH7
UPC793950384312
Voltage600V AC/V DC
Weight0.75
WeightUnitlbs
Weight_AttribWeight
depth, length2.0
extendedLead26
extendedQty-2
height7.4
height_AttribOverall Height
jsonUrlData924526ffbdad25e5923b
length_AttribDepth
moq, multiple, tierMinQty11
MPNEX430A-NIST
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG8327216
tierPrice1181.60
urlhttps://www.zoro.com/extech-digital-multimeter-600-max-ac-volts-600-max-dc-volts-10-max-ac-amps-10-max-dc-amps-ex430a-nist/i/G8327216/
width3.2
width_AttribOverall Width
Promotion RestrictionNot eligible for promotion
ItemDigital Multimeter
Multimeter StyleFull Size - Basic Features
Instrument Counts4000
Basic DC Accuracy+/-0.30% of Reading +2 Digits
Instrument Safety Rating, Safety Rating_SUBHEADCAT III 600V
Max AC Volts, Max DC Volts600
Max AC Amps, Max DC Amps10
Audible Continuity, Calibration Certificate Included, Data Hold, Diode Test, Auto Power Off, Auto Ranging, Duty Cycle, Fuse Access, Batteries Included, Battery Access, Pulse WidthYes
Max Ohms40 megohm
Peak Hold, Min /Max Memory, Bar Graph, Data Logging, Intrinsically Safe, Dustproof, Minimum/Maximum Memory, Bar Graph Included, Bluetooth Compatible, Current Leakage Testing, Software Included, Removable Screen, Waterproof, Thermal ImagingNo
Interface, Computer Interface Connection TypeNone
Display, Display TypeBacklit LCD
Instrument Frequency Counter Range0.001 Hz to 10 MHz
IncludesBattery and Instructions, Holster, K-Type Temp Probe, Magnetic Hanging Strap, Multi-Position Tilt Stand, Test Leads
Manufacturers Warranty Length3 yr
AC Response, AC Response CalculationTRMS
NIST Certification By, NIST Certification By ManufacturerFLIR
Battery Type9V Alkaline
SeriesEXTECH (R) EX430
StandardsCE
Temp Range-4 Degrees to 1382 Degrees F
Capacitance Range10 pF to 100 uF
Special FeaturesCapacitance, Frequency Measurement, Input fuse protection and mis-connection warnings, Low current down to 0.1uA
Maximum Resistance Measurement40 megaohm
Minimum Resistance Measurement, Resistance Measurement Resolution0.1 ohm
Frequency Measurement Resolution, Minimum Frequency Measurement0.001 Hz
Multimeter FeaturesStandard
Maximum Temperature Measurement1,382 Degrees F
Maximum DC Current Measurement, Maximum AC Current Measurement10 A
Temperature Measurement Accuracy+/-2%
AC Voltage Measurement Resolution, Minimum DC Voltage Measurement, DC Voltage Measurement Resolution, Minimum AC Voltage Measurement0.1 V
Capacitance Measurement Accuracy+/-0.50%
StyleFull Size
Battery Voltage, Battery Size9V
Basic DC Voltage Accuracy+/-0.30%
Basic AC Current Accuracy+/-3.5%
Minimum Operating Temperature41 Degrees F
Overall Height7.4 in
Maximum AC Voltage Measurement600 V
Capacitance Measurement Resolution, Minimum Capacitance Measurement0.01 nF
Minimum DC Current Measurement, DC Current Measurement Resolution, Minimum AC Current Measurement0.1 uA
Minimum Storage Temperature, Minimum Temperature Measurement-4 Degrees F
Safety Rating_BACKGROUNDEX430A-NIST CAT III 600V
MERCH HOLD ACCURACY+/-0.30% +/-3% +/-2.5% +/-3.5% +/-0.50% +/-0.50% +/-2% +/-1%
Maximum Operating Temperature104 Degrees F
FEATURES HOLD_MERCHBacklit LCD Yes Yes
Maximum Storage Temperature140 Degrees F
Battery ChemistryAlkaline
Maximum Frequency Measurement10 MHz
Resistance Measurement Accuracy+/-1%
Overall Width3.2 in
Basic AC Voltage Accuracy+/-3%
Temperature Measurement Resolution1 Degrees F
Parameters MeasuredAC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Depth2 in
