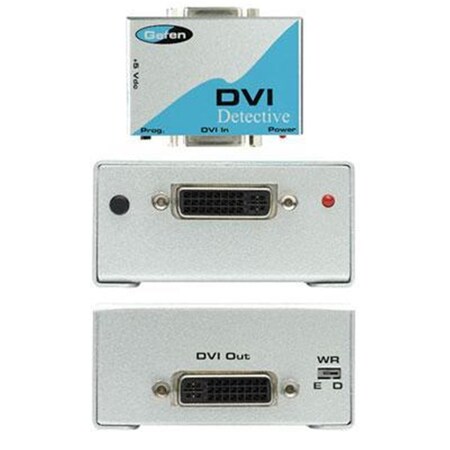

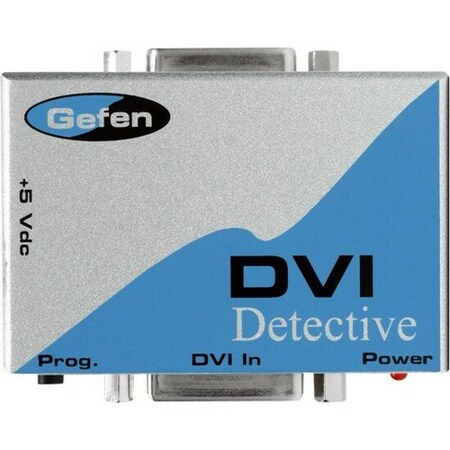

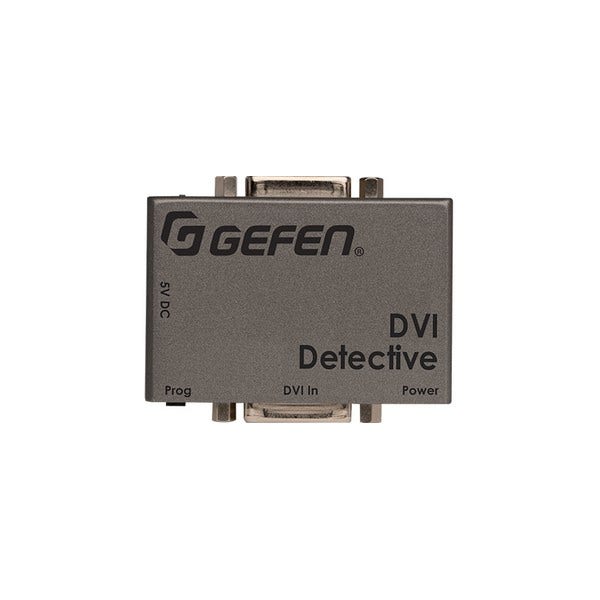

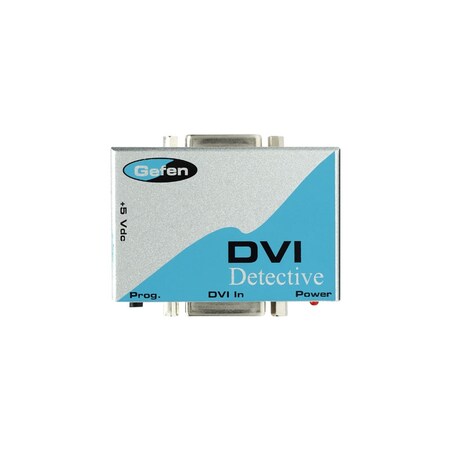

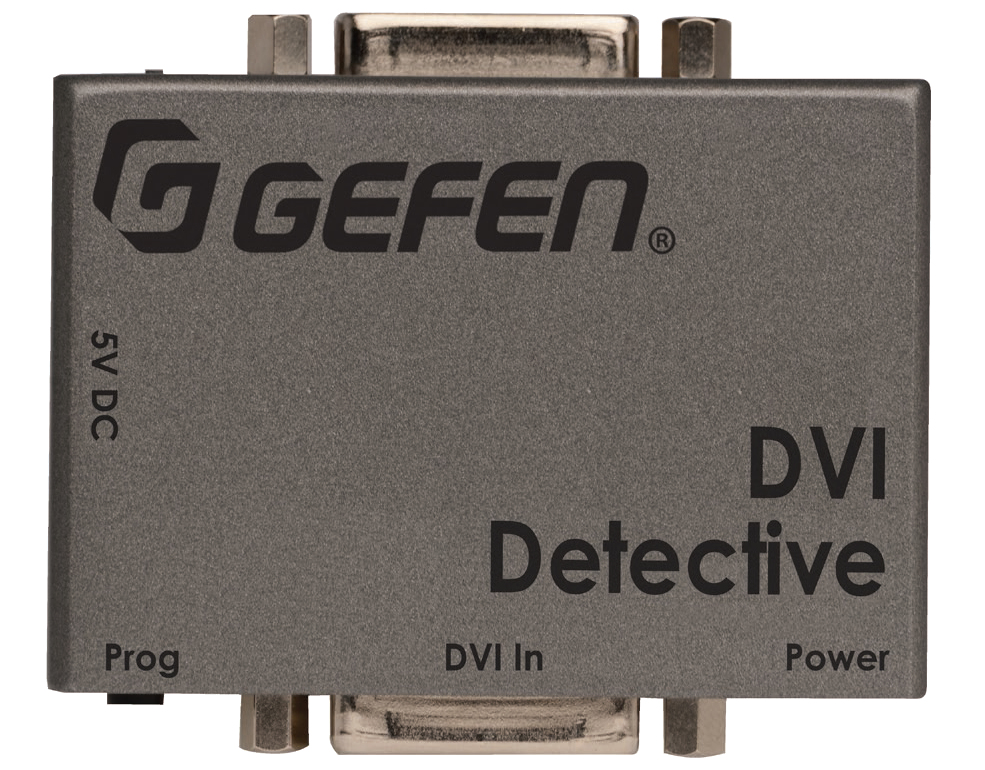

Gefen . EXT-DVI-EDIDN

Shipping Depth: 10.6 Shipping Height: 2.7 Shipping Width: 7.7 Master Pack Qty: 1 General Information Manufacturer: Gefen, Inc Manufacturer Part Number: EXT-DVI-EDIDN Brand Name: Gefen Product Model: EXT-DVI-EDIDN Product Name: EXT-DVI-EDIDN Video Capturing Device Marketing Information: Computers can sometimes lose the EDID -- basically the electronic identification of a display which lists its possible resolutions and frequencies. When displays are switched away or disconnected and then reconnected, the EDID can be lost and the computer can lose the ability to display the image properly. Product Type: Video Capturing Device Technical Information Functions: Video Capturing Functions: Video Processing Maximum Resolution: 3840 x 2400 Interfaces/Ports DVI: Yes Physical Characteristics Form Factor: External Height: 1.2 Width: 2.6 Depth: 1.7 Miscellaneous Package Contents: EXT-DVI-EDIDN Video Capturing Device 1- foot DVI Dual Link M-M Cable 5V Power Supply User's Manual Green Compliant: Yes Green Compliance Certificate/Authority: RoHS

Gefen inc video extender - wired - external video extender - wired - external Manufacturer : Gefen Inc UPC : 845344032719

To program the Detective, first connect it to the DVI or VGA input of the display that is being used. For the programming process only, the Detective is powered by an included 5V DC power supply. Disable the write protect switch, depress the program button, and after a few seconds EDID recording is complete. The Detective can now be disconnected from the display and power supply and relocated in the video distribution chain at the output of the computer's video card. The Detective will receive 5V power from the computer's DVI or VGA output. Features: Quick and easy way to store EDID information from any DVI display Provides a virtual EDID to maintain active monitor status when switching away from a source Supports resolutions up to 1920x1200, 2K, and 3840x2400 (Dual Link) EDID write protection switch No power is required after initial programming

100% Genuine- Computer/Laptop Replacement or Internal parts Part Number: EXT-DVI-EDIDN EXT-DVI-EDIDN Quick and easy way to store EDID information from any DVI display Provides a virtual EDID to maintain active monitor status when switching away from a source Supports resolutions up to 1920x1200, 2K, and 3840x2400 (Dual Link) EDID write protection switch No power is required after initial programming Specifications Maximum Pixel Clock: 2x 165 MHz Video Input Connector: (1) DVI-I 29-pin, female Video Output Connector: (1) DVI-I 29-pin, female Operating temperature range: +5 to +45 deg. Celsius Power Supply: 5V DC (needed for programming only) Power Consumption: 5 Watts (max) Dimensions: 2.6" W x 1.8" D x 1.2" H Note: Picture may not match actual product. Please ensure that your original part number matches this exactly, or check with the manufactuer for compatiblity. Customers are responsible for compatiblity.
