OD8038-12HBIP69K Orion Fans | Fans, Thermal Management | DigiKey

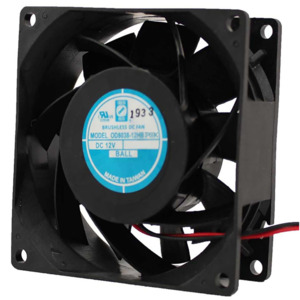

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 71.0 CFM (1.99m?/min) 2 Wire Leads
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| CategoryL1, Category | Fans, Thermal Management |
| CategoryL2 | Fans |
| CategoryL3 | DC Brushless Fans (BLDC) |
| DimensionUnit | mm |
| Extra Product Name | OD8038-12HBIP69K Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| MPN, Manufacturer Product Number | OD8038-12HBIP69K |
| packaging, Package | Box |
| qtyInStock | 219 |
| SKU | 12756344 |
| snippet, Detailed Description | Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 71.0 CFM (1.99m?/min) 2 Wire Leads |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 50 |
| tierMinQty5 | 100 |
| tierMinQty6 | 250 |
| tierPrice1 | 31.87000 |
| tierPrice2 | 29.10800 |
| tierPrice3 | 28.00280 |
| tierPrice4 | 26.16040 |
| tierPrice5 | 24.13390 |
| tierPrice6 | 23.76540 |
| width | 38.0 |
| width_Attrib | Width |
| Digi-Key Part Number | 1053-OD8038-12HBIP69K-ND |
| Description | FAN AXIAL 80X38MM 12VDC WIRE |
| Manufacturer Standard Lead Time | 19 Weeks |
| Series | OD8038-IP69K |
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 38.00mm |
| Air Flow | 71.0 CFM (1.99m?/min) |
| Static Pressure | 0.580 in H2O (144.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Noise | 49.0dB(A) |
| Power (Watts) | 7.2 W |
| RPM | 5000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP69K - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -4 ~ 149?F (-20 ~ 65?C) |
| Approval Agency | CE, cURus, TUV, UR |
| Current Rating (Amps) | 0.600A |
| Voltage Range | - |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp | 70000 Hrs @ 40?C |
| Base Product Number | OD8038 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 12756344 | 1 | 219 | 1 | 1 @ $31.87, 10 @ $29.11, 25 @ $28.00, 50 @ $26.16, 100 @ $24.13, 250 @ $23.77 |
 Newark | 45AJ0135 | 1 | 17 | 1 | 1 @ $32.33, 5 @ $30.07, 10 @ $29.03, 25 @ $27.99, 50 @ $26.42, 100 @ $23.64 |
| 10142058 | 1 | 1 | 1 @ $28.97 | ||
| us.rs-online.com | 72127372 | 1 | 12 | 1 | 1 @ $31.57, 10 @ $28.83, 25 @ $27.74, 50 @ $25.91, 100 @ $23.91, 250 @ $23.54 |
