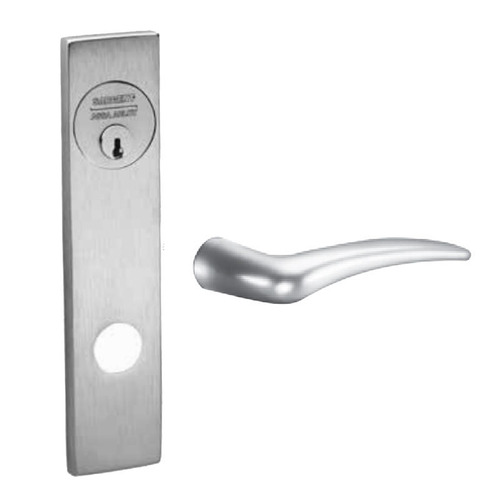

Sargent 60-8271-12V LE1A 4 LH Electric Mortise Lock Satin Brass

Fail Secure, 12V Electrified Mortise Lock, LE1 Escutcheon, A Lever, Left Hand, LFIC Prep Less Core, Satin Brass Featuring Ecoflex Technology, Sargent 8200 Electromechanical Mortise Locks are field changeable between fail safe and fail secure functions and operate off 12v through 24v power. They are designed to handle single opening, stand alone applications. They can also be readily integrated into sophisticated access control systems. They meet ANSI/BHMA A 156.13 Grade 1 requirements, are UL listed on fire doos and sitisfy industry standards for operating temperature, shock an

Sargent . 60-8271-12V LE1A 4 LH

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSargent
CategoryIdL3Electric Locks
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
DimensionUnitinch
Extra Product NameSargent 60-8271-12V LE1A 4 LH Electric Mortise Lock Satin Brass
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorSatin Brass
height4.875
height_AttribStrike Height
length9.25
length_AttribPackage Length
MPN, SKU60-8271-12V LE1A 4 LH
qtyInStock0
tierPrice11185.32
width5.625
width_AttribPackage Width
Strike Number82-0110
Package Volume227.6367188
Amp Draw500mA Peak, 15mA Holding
Function71-Electrical Fail Secure
HandLH
GradeGrade 1
Fire Rated2 Hours {B}
Special MarksFull size/large format interchangeable core, Fire rated 2 Hours {B}
Strike Width1-1/4"
Operating Voltage12VDC/24VDC
Cylinder TypeSargent LFIC Prep Less Core
ApplicationComplete Lock
Package Height4.375"
ScrewsCombination
Door Thickness1-3/4"
Package Width5.625"
Bolt Protection3/4"
Color Code606/US4
Strike TypeASA
OriginUSA
BAA QualifiedYes
Rose/Escutcheon DesignLE1 - Escutcheon
Base MaterialBrass
Strike Height4-7/8"
Lever/Knob DesignA - Lever
PowerHard Wired
Package Length9.25"
HandingLeft Hand

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK Hardware60-8271-12V LE1A 4 LH111 @ $1185.32
