STP45N60DM6 STMicroelectronics | Discrete Semiconductor Products | DigiKey

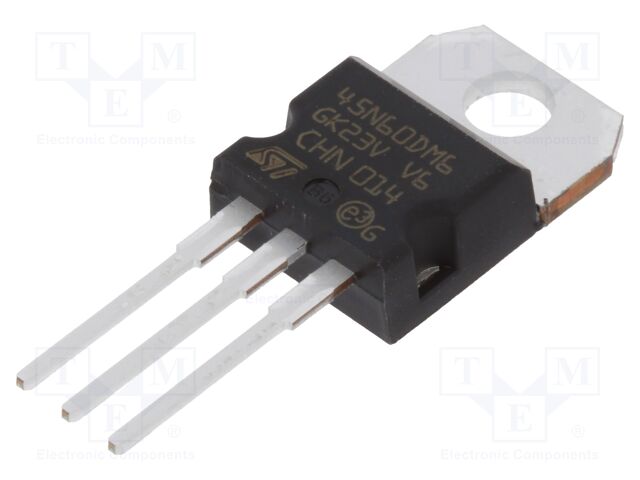

N-Channel 600 V 30A (Tc) 210W (Tc) Through Hole TO-220

STMicroelectronics . STP45N60DM6

Attributes

Brand name, Manufacturer name, Manufacturer, MfrSTMicroelectronics
Extra Product NameSTP45N60DM6 STMicroelectronics | Discrete Semiconductor Products | DigiKey
atoms, moq, multiple, tierMinQty11
extraShipping0
MPNSTP45N60DM6
packaging, PackageTube
qtyInStock17
SKU8258029
snippetN-Channel 600 V 30A (Tc) 210W (Tc) Through Hole TO-220
tierMinQty210
tierMinQty3100
tierMinQty4500
tierPrice19.591
tierPrice28.6618
tierPrice37.17117
tierPrice46.40941
CategoryDiscrete Semiconductor Products
SeriesMDmesh? DM6
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25?C30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs99mOhm @ 15A, 10V
Vgs(th) (Max) @ Id4.75V @ 250?A
Gate Charge (Qg) (Max) @ Vgs44 nC @ 10 V
Vgs (Max)?25V
Input Capacitance (Ciss) (Max) @ Vds1920 pF @ 100 V
FET Feature-
Power Dissipation (Max)210W (Tc)
Operating Temperature-55?C ~ 150?C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220
Package / CaseTO-220-3
Base Product NumberSTP45

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key825802911711 @ $9.59, 10 @ $8.66, 100 @ $7.17, 500 @ $6.41
Newark94AC2368111 @ $4.73
st.comSTP45N60DM61-211 @ $6.17, 10 @ $5.58
TMESTP45N60DM613011 @ $8.46, 3 @ $7.62, 10 @ $6.74, 50 @ $6.05
