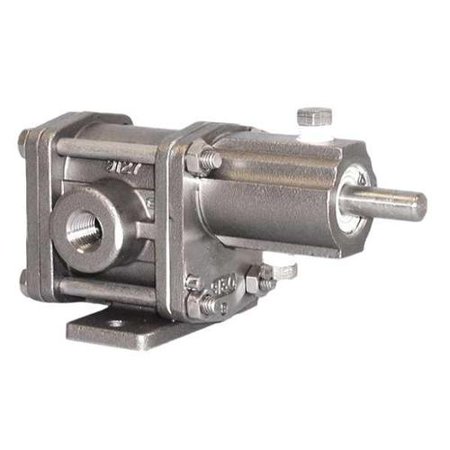

Rotary Gear Pump Head, Duty Rating Intermediate, Pedestal, Pump Body Material 316 Stainless Steel, Port Size 1/4 In., Recommended Motor HP 1/3, Motor Frame 56C, Pump RPM 1725, Temp. Range -50 Degrees to 450 Degrees F, Max. Pressure 150 psi, Max. Viscosity 500 SSU, Relief Valve Without, Seal Mechanical, Shaft Dia. .375 In., Shaft Height 1.88 In., Shaft Material 316 Stainless Steel, Amps AC 6/3, GPM @ Freeflow 1.4, HP @ Free Flow .03 Features Amps AC: 6/3 Item: Rotary Gear Pump Head Pump Body Material: 316 Stainless Steel Temp. Range: -50 Degrees to 450 Degrees F Design: Pedestal GPM @ 100 PSI: 1.1 GPM @ 20 PSI: 1.4 GPM @ 25 PSI: 1.4 GPM @ 40 PSI: 1.3 GPM @ 50 PSI: 1.3 GPM @ 60 PSI: 1.3 GPM @ 80 PSI: 1.2 Motor Frame: 56C Pump RPM: 1725 Recommended Motor HP: 1/3 Seal: Mechanical Shaft Material: 316 Stainless steel GPM @ 75 PSI: 1.2 GPM @ 125 PSI: 1.1 HP @ 80 PSI: .17 HP @ 20 PSI: .06 HP @ Free Flow: .03 HP @ 40 PSI: .10 HP @ 50 PSI: .12 GPM @ Freeflow: 1.4 HP @ 60 PSI: .13 HP @ 75 PSI: .16 HP @ 100 PSI: .20 HP @ 125 PSI: .25 HP @ 25 PSI: .07 Max. Viscosity: 500 SSU Port Size: 1/4" Relief Valve: Without Max. Pressure: 150 psi GPM @ Freeflow @ 1725 RPM: 1.4 HP @ Free Flow @ 1725 RPM: .03 GPM @ 125 PSI @ 1725 RPM: 1.1 HP @ 125 PSI @ 1725 RPM: .25 Shaft Dia.: .375" Duty Rating: Intermediate Suction Lift: 2 ft. Suction Lift @ 1725 RPM: 2 ft. Shaft Height: 1.88"
