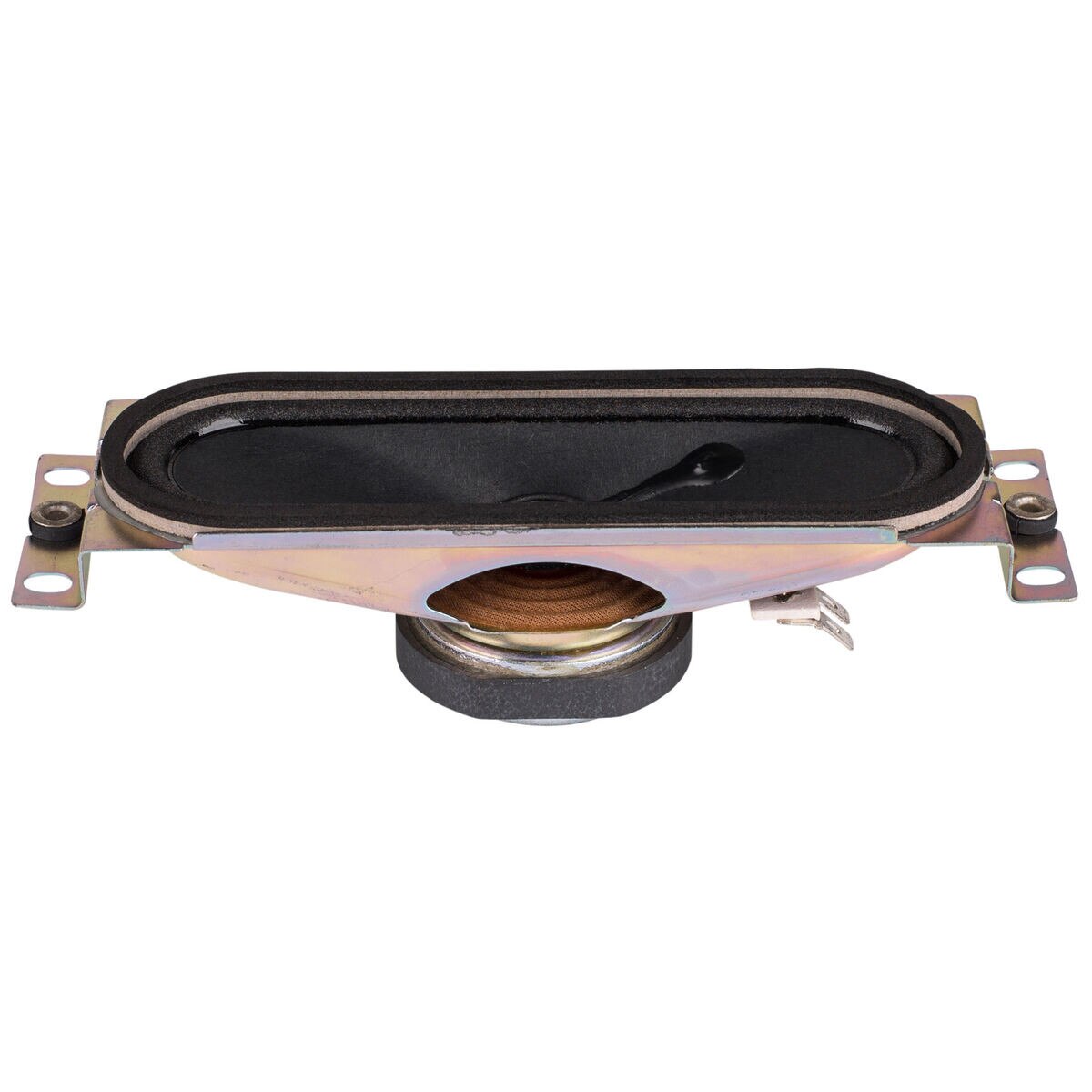

Philips 242226400605 1-3/4" x 5" Paper Cone Full-Range Speaker 6 Ohm

Philips 242226400605 1-3/4" x 5" Paper Cone Full-Range Speaker 6 Ohm. Part Number: 289-2216 by Factory Buyouts.

Factory Buyouts . A Y8M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NamePhilips 242226400605 1-3/4" x 5" Paper Cone Full-Range Speaker 6 Ohm
UPC848864048307
Weight0.32
WeightUnitlbs
depth, length1.5
diameter, height, width6.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelA Y8M
qtyInStock0
SKU, Part Number289-2216
snippetPhilips 242226400605 1-3/4" x 5" Paper Cone Full-Range Speaker 6 Ohm. Part Number: 289-2216 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter1 x 5"
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance6?
Frequency Response75 to 15,000Hz
Sensitivity81.3dB 2.83V/1m
Voice Coil Diameter0.5"
Resonant Frequency (Fs)120Hz
DC Resistance (Re)5.5?
Voice Coil Inductance (Le)0.37mH
Mechanical Q (Qms)5.99
Electromagnetic Q (Qes)2.18
Total Q (Qts)1.6
Compliance Equivalent Volume (Vas)0.027ft?
Mechanical Compliance of Suspension (Cms)0.922mm/N
BL Product (BL)1.9T?m
Diaphragm Mass Inc Airload (Mms)1.91g
Surface Area of Cone (Sd)24.63cm?
Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter6" x 1.75"
Baffle Cutout Diameter4.875" x 1.5"
Depth1.5"
# Mounting Holes2
