Buy ACI 147352, Differential Pressure Transducer, 0-300 PSID, 10' - Prime Buy

Automation Components Differential Pressure Transducer, 0-300 PSID, 10' 147352. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ 1-855-969-9322 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

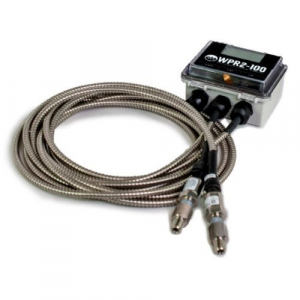

ACI . 147352

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerACI
ConditionNEWCONDITION
DimensionUnitfoot
Extra Product NameBuy ACI 147352, Differential Pressure Transducer, 0-300 PSID, 10' - Prime Buy
length10.0
length_AttribHarness Length
moq, multiple, tierMinQty11
MPN, SKU147352
qtyInStock-2
qtySourceFieldMap
tierPrice1512.00
Response Time (0-100% FSO)8 seconds
Output Update Rate1 second
Output Load Resistance4 to 20 mA 500 ohms maximum / 0-5 VDC / 0-10 VDC 5K ohms minimum
Warm Up Time15 minutes (wait 15 minutes before zeroing)
Accuracy (Three Highest Ranges)±1.0% FSO
Accuracy (Lowest Range)±1.5% FSO
Thermal Effects±2.0% FSO from 32-140°F (0-60°C)
Operating TemperatureTransducer -40 to 257°F (-40 to 125°C) / Electronics/Housing/Cables 32-167°F (0-75°C)
Compensated Temperature Range32 to 140°F (0 to 60°C)
Storage Temperature-13 to 176°F (-25 to 80°C)
Operating Humidity10 to 90% RH, non-condensing
Process Fitting Material304 SS
Process Fitting Size1/4" - 18 NPT Male; Pressure Snubber included for light oils/water
Recommend Torque Specification150 lbs-in (16.95 Nm)
Metal Clad RatingContinuously interlocked Type 304 Stainless Steel core
Enclosure Material / Flammability RatingFlame Retardant PC / PBT Alloy / UL94V-0
Enclosure RatingNEMA 4X/IP66
ApprovalsCE, RoHS2, WEEE, Reach
Product Dimensions (L x W x D)5.30" x 5.07" x 3.00" (13.46 cm x 12.88 cm x 7.62 cm)
Outputs4-20 mA, 0-5 VDC, 0-10 VDC (Default)
Harness Length10'
LCDNo
Armored CableYes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
primebuy.com1473521-211 @ $512.00
