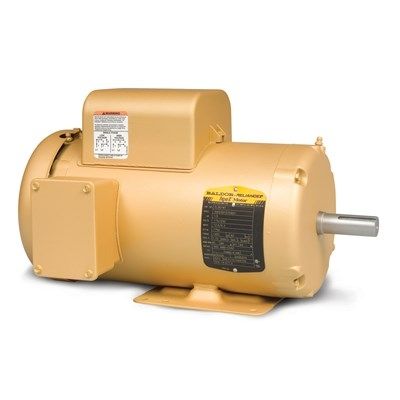

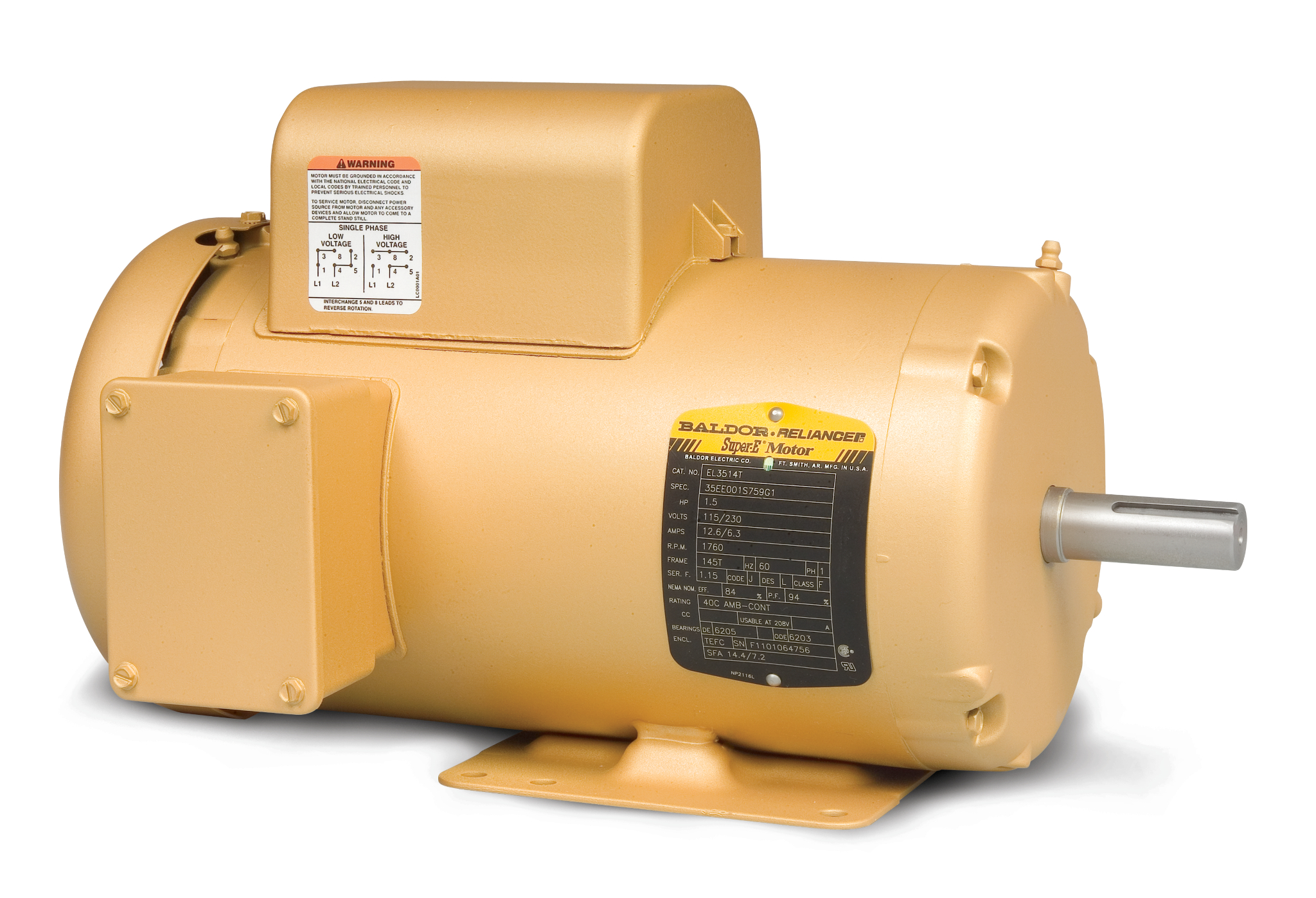

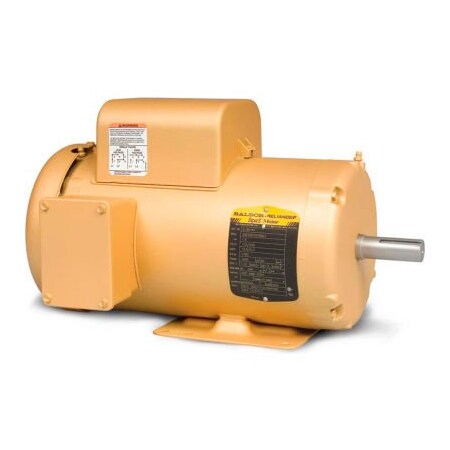

EL3510 1HP, 1760RPM, 1PH, 60HZ, 56H, 3532LC, TEFC, F1

115/230 Volts1.00 hp Output1800 RPMSingle PhaseTEFC Enclosure56H Frame Size4.25 A FL Amps82.5 % FL EfficiencyStandard Drive End Flange TypeMounting: Foot Mounted

Baldor EL35101HP 1760RPM 1PH 60HZ 56H 3532LCTEFC F1

Baldor Electric, EL3510, 1HP, 1760RPM, 1PH, 230V;115V, 56H Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Low-loss electrical-grade lamination steel Heavy-gauge steel frames Three-year warranty Suitable for energy-saving applications where continuous operation is required , Specifications: Motor Phase:-1 ph Motor Horsepower:-1.00 hp, 1 hp Synchronous RPM:-1800 rpm Motor Supply Voltage:-115/230 V Frame Size:-56H Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) Frequency Rating:-60 Hz Mounting Type:-Footed Duty / Condition Type:-Continuous Duty Full Load Current:-4.30 A Full Load Efficiency:-82.50 % Amps @ Voltage:-8.5 A @ 115 V; 4.6 A @ 208 V; 4.3 A @ 230 V Volts @ Frequency:-115 V @ 60 Hz; 230 V @ 60 Hz Shaft Diameter:-0.63 in Overall Length (C-Dimension):-13.81 in Warranty:-3 Year Warranty Bearing Type:-Ball NEMA Design Class:-L Service Factor:-1.15 Frame Material:-Steel Insulation Class:-F IP Rating:-44 Standards Met:-UR, CSA EEV, CSA Weight:-47.00 lbs Applications:-Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others. Additional Details:-Heavy gauge steel frames and a heavy duty base seam welded to the frame, ball bearings, a “Snap Action” starting switch and gasketed conduit box and capacitor cover. Harmonization Code:-8501.40.6040

Specifications: Item:-General Purpose Motor Motor Application:-General Application Motor Design:-Capacitor-Start Motor Enclosure Design:-Totally Enclosed Fan-Cooled HP:-1 Nameplate RPM:-1760 Frame:-56H Voltage:-115/230 Hz:-60 Phase:-1 Full Load Amps:-8.5/4.25 Number of Speeds:-1 Mounting:-Rigid Base Motor Mounting Position:-Horizontal Motor Thermal Protection:-None Insulation Class:-F Service Factor:-1.15 Bearings:-Ball Frame Material:-Rolled Steel Max. Ambient Temp.:-40 Degrees C Rotation:-CW/CCW Shaft Dia.:-5/8" Shaft Length:-1-7/8" Length Less Shaft:-11-15/16" Overall Length:-13-13/16" Motor Shaft Design:-Keyed RPM Range:-1701-1800 Standards:-UL Recognized, CSA Certified Duty:-Continuous Efficiency Group:-Energy Efficient Nominal Efficiency:-82.5% Inverter Rated:-No Capacitor Required:-No Includes:-Conduit Box Warranty (Years):-3 Green/Sustainable Attribute:-Product Contributes to Reducing Energy Consumption RPM Group:-1701-1800 UNSPSC:-26101602
