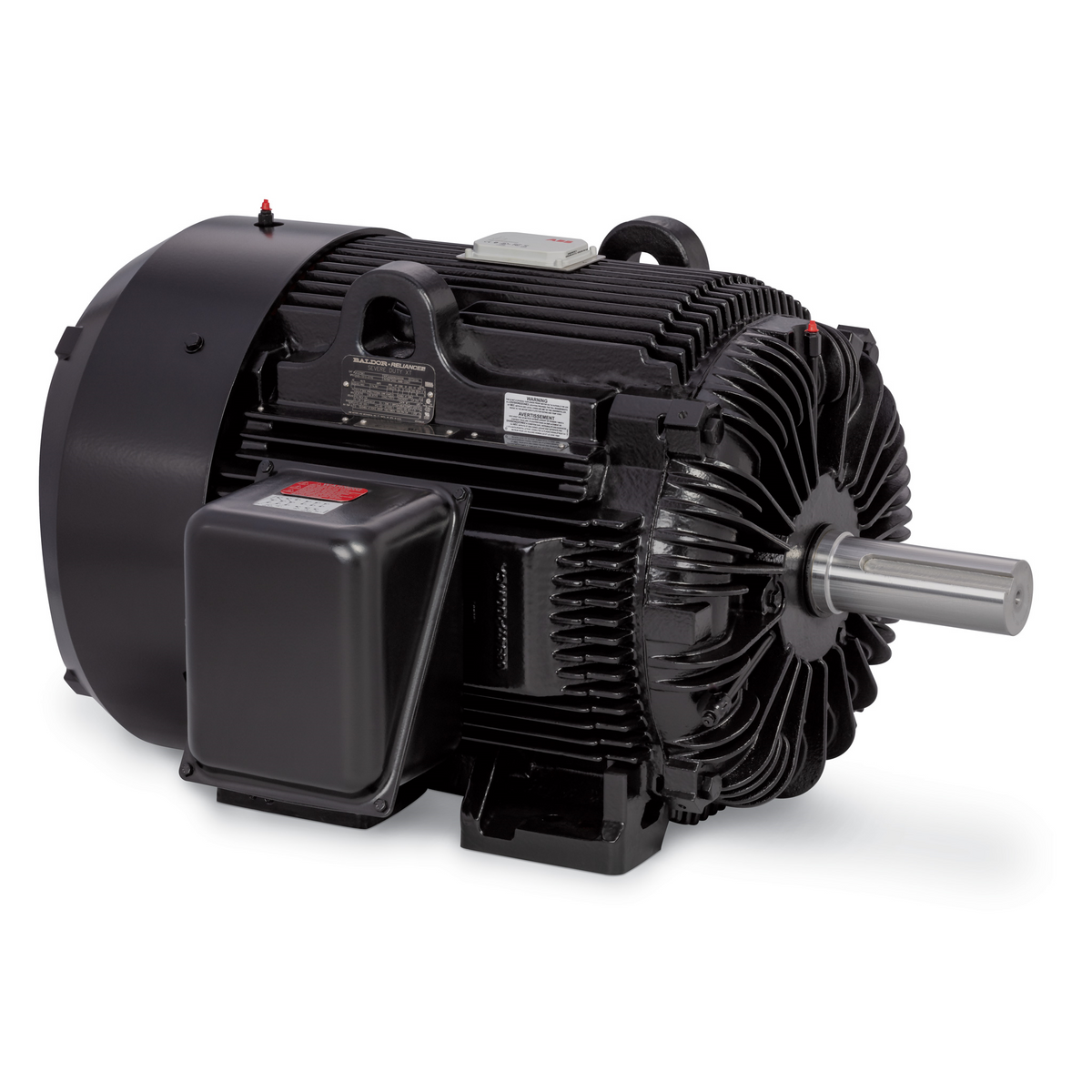

Baldor XT31004T Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 100RPM: 1785Volts: 230/460Amps: 114/228/249Phase: 3Frame: 405TEnclosure Material: IronMounting: RigidShaft Diameter: 2.875"Overall Length: 38.19"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Bearings: BallEfficiency: 95.4%Maximum Ambient Temperature: 40? CInsulation Class: FDut
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor XT31004T Three Phase Severe Duty XT Motor |
| Voltage, Volts | 230/460 |
| Weight | 1375 |
| WeightUnit | lbs |
| diameter, height, width | 2.875 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 38.19 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | XT31004T |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 14682.33 |
| Product Type | Three Phase |
| HP | 100 |
| RPM | 1785 |
| Amps | 114/228/249 |
| Phase | 3 |
| Frame | 405T |
| Enclosure Material | Iron |
| Mounting | Rigid |
| Shaft Diameter | 2.875" |
| Overall Length | 38.19" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Bearings | Ball |
| Efficiency | 95.4% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | A40-0002-5245 |
| Ship Weight | 1375 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| XT31004T | 1 | -2 | 1 | 1 @ $14682.33 | |
 Zoro | G208636732 | 1 | 1 | 1 @ $19344.99 |
