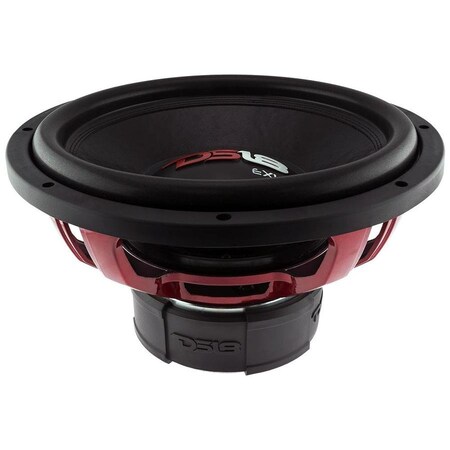

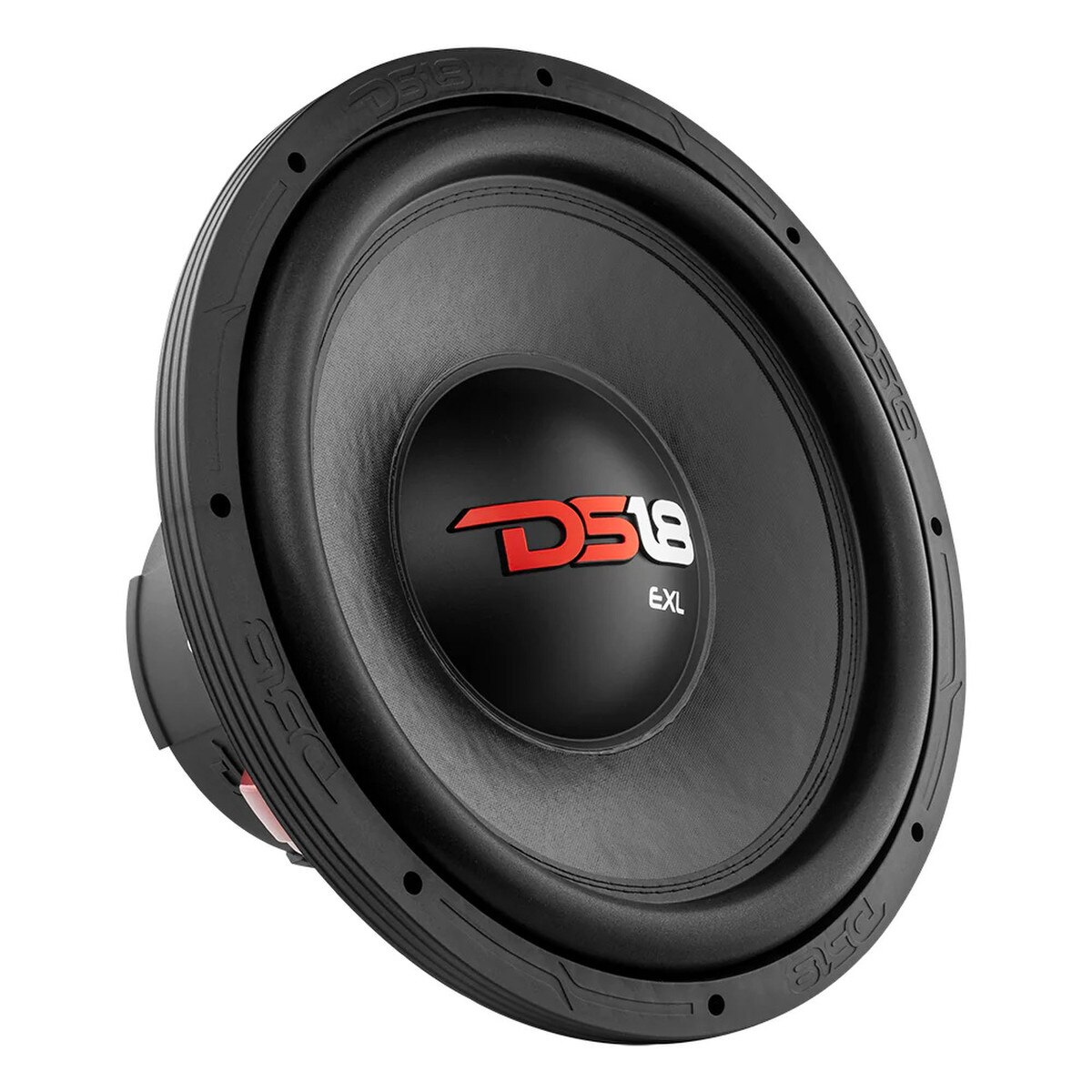

DS18 EXL-X15.2D 15" Cast Frame DVC Subwoofer 2 Ohm

DS18 EXL-X15.2D 15" Cast Frame DVC Subwoofer 2 Ohm. Part Number: 294-8088 by DS18.

DS18 . EXL-X15.2D

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDS18
DimensionUnitinch
Extra Product NameDS18 EXL-X15.2D 15" Cast Frame DVC Subwoofer 2 Ohm
UPC663593064691
Weight39
WeightUnitlbs
depth, length8.07
diameter, height, width15.59
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelEXL-X15.2D
qtyInStockOut of Stock
SKU, Part Number294-8088
snippetDS18 EXL-X15.2D 15" Cast Frame DVC Subwoofer 2 Ohm. Part Number: 294-8088 by DS18.
Unit of MeasureEach
Nominal Diameter15"
Bolt Circle Diameter14.75
Power Handling (RMS)1250 Watts
Power Handling (MAX)2500 Watts
Impedance, DC Resistance (Re)4?
Frequency Response25 to 1,500Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter2.57"
Resonant Frequency (Fs)50Hz
Voice Coil Inductance (Le)5.97mH
Mechanical Q (Qms)5.84
Electromagnetic Q (Qes)0.56
Total Q (Qts)0.513
Compliance Equivalent Volume (Vas)0.87ft?
Mechanical Compliance of Suspension (Cms)0.027mm/N
BL Product (BL)20.5T?m
Diaphragm Mass Inc Airload (Mms)374g
Maximum Linear Excursion (Xmax)15mm
Surface Area of Cone (Sd)804.25cm?
Cone MaterialPaper / Glass Fiber
Surround MaterialFoam
Voice Coil Wire Material, Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter15.59"
Baffle Cutout Diameter13.98"
Depth8.07"
# Mounting Holes8
Sealed Volume1.5ft?
Sealed F378.5Hz
Vented Volume3ft?
Vented F337.6Hz
