TOAM-01F Price: $83.00 Microphone Input module for 900 Series

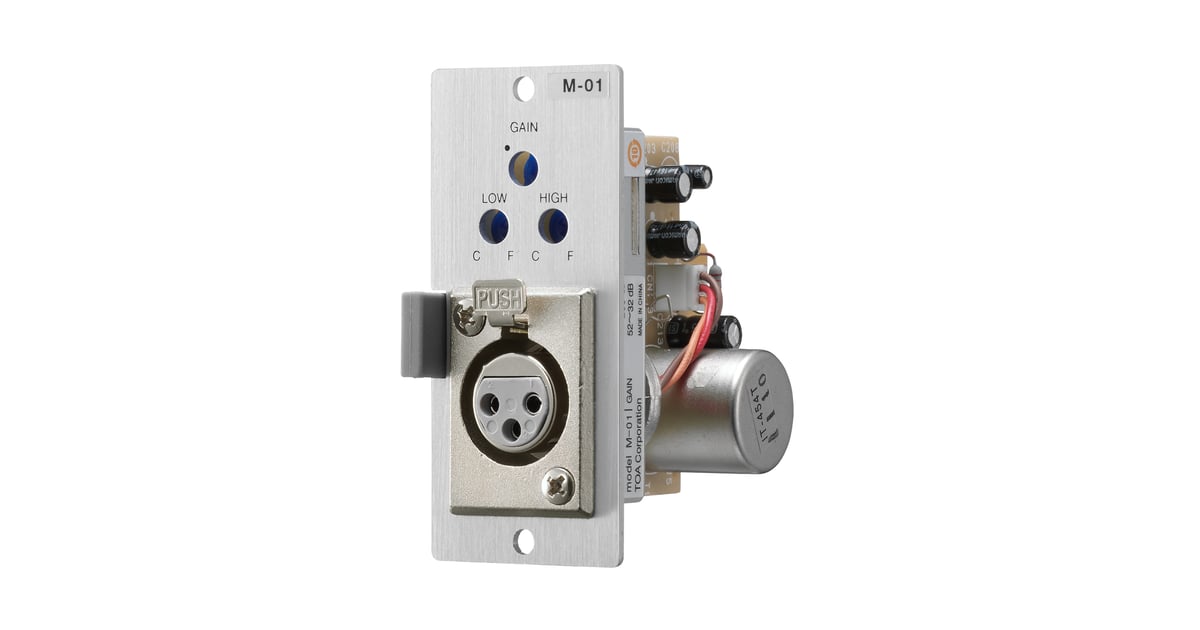

TOA M-01F Microphone Input Module with Female XLR Type Connector For use with 900 Series Components and Other TOA's Equipment, 25Hz - 20kHz ±2.0 dB Frequency Response The M-01F is a microphone input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced microphone input with female XLR type connector, phantom power supply function, and gain and tone controls. Key Features For use with 900 Series Components and Other TOA's Equipment Specifications Power Source: 24 V DC (supplied from the main frame) Current Consumption: 9 mA Input Sensitivity: -60 dB (balanced transformer-isolated) Input Impedance: 600 Ω, balanced Frequency Response: 25 Hz - 20 kHz ±2.0 dB Distortion: 0.05 % or less (1 kHz, output: 0 dB) Noise Level: -86 dB (20 Hz - 20 kHz BPF), input equivalent noise: -126 dB Gain: 32 - 52 dB Phantom Power: +22 V DC (active or disable selectable) Tone Control: 100 Hz: 0 to -10 dB, 10 kHz: 0 to -10 dB Connector: Female XLR connector (XLR-3-31 equivalent) Dimensions: 35 x 78 x 88 mm (1.38" x 3.07" x 3.46") Weight: Max. 110 g (0.24 lb)
