Boneham

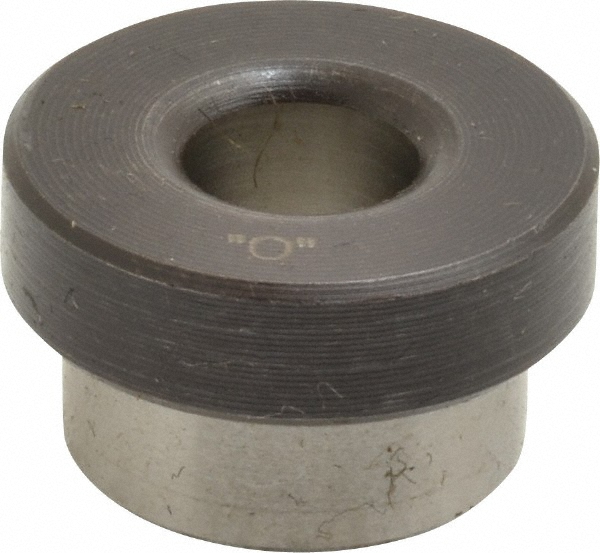

Drill Bushing - Head Press Fit H404IOO Drill Size with STEEL Finish.RC 62-64 to RC 62-64 with 0.316" 8mmH-TYPE Technical Specs*Please contact [email protected] for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*Full DescriptionDrill Bushing

Boneham . H404IO

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameBoneham
DimensionUnitinch
GraingerSku11G704
UnitOfMeasureEA
Weight0.05
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginGB
extendedLead20
extendedQty-2
height0.47
jsonUrlData924526ffbdad25e5923b
length, width0.22
moq, multiple2
MPNH404IO
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3077910
tierMinQty11
tierPrice16.69
urlhttps://www.zoro.com/boneham-drill-bushing-h-drill-size-o-h404io/i/G3077910/
Material - Machining, Head Material, FinishHigh Speed Steel
Heat TreatmentThrough Hardened
Material52100 Thru Hardened
Bushing TypeHead Press Fit
Bushing Head TypeHeaded
Drill Bushing Wall TypeStandard Wall
Size- DecimalO (0.3160)
Decimal Equivalent0.3160
Concentricity Tolerance.0003" T.I.R. Max
Measurement SystemLetter
Inside Dia Tolerance+0.0001 in /+0.0005 in
HardnessRc 62-64
Outside Dia5/8 in
Drill Size, Inside DiaO
Outside Dia Tolerance+0.0017 in /+0.0014 in
Head Dia51/64 in
Rockwell HardnessRC 62-64
Overall Length1/4 in
Head Thickness7/32"
Length under Head1/4"
ItemHeaded Press-Fit Drill Bushing (H)
Head TypeYes
Bushing CodeH
Size - Decimal1-49/64 in - 1.7656
Country of Origin (subject to change)United Kingdom

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3077910221 @ $6.69
National Supply Network073850081-211 @ $14.43
freertool.comBH-H404IO111 @ $8.87
National Supply Network73850081-211 @ $16.23
