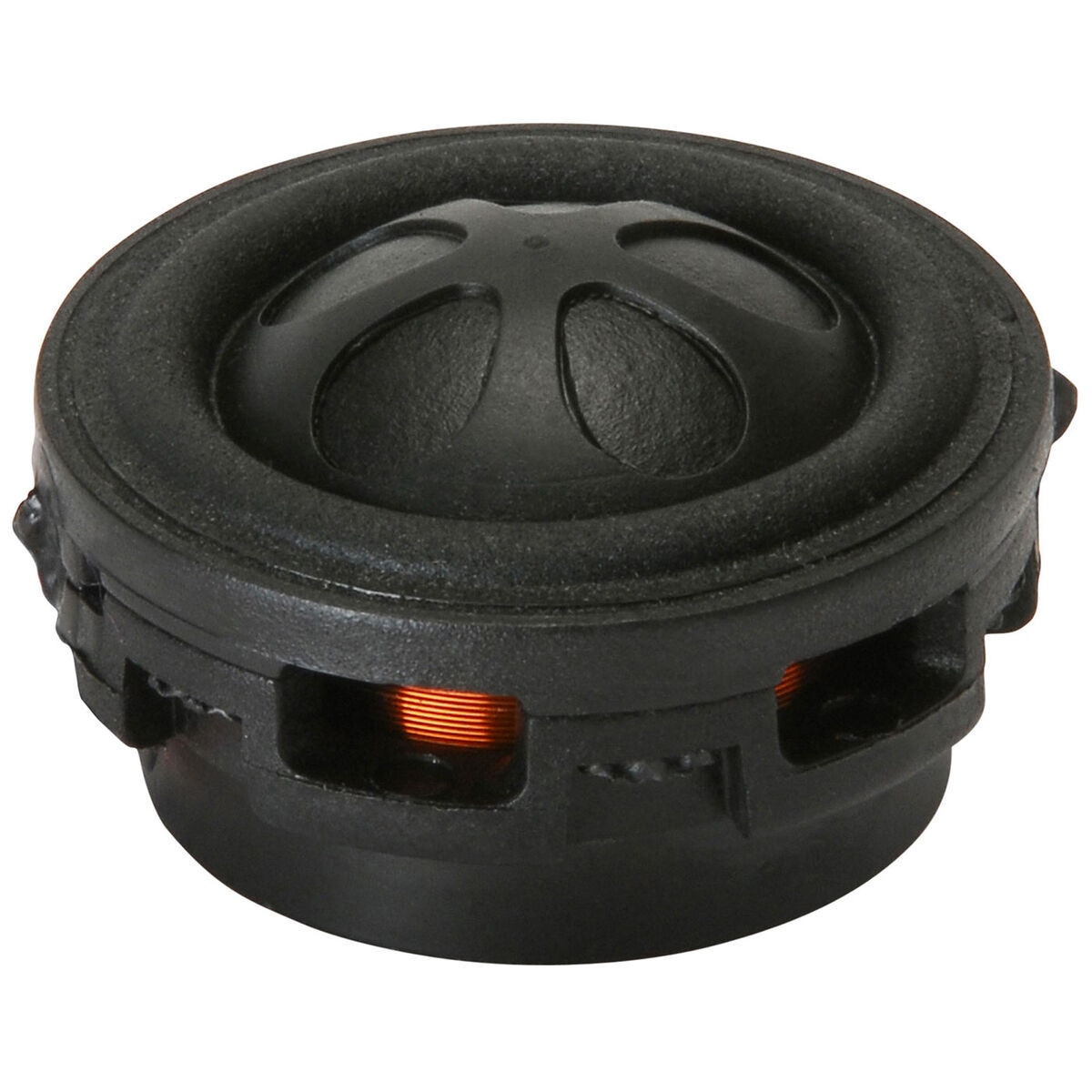

Tang Band W1-1931S 1" Neodymium Full Range Driver

Tang Band W1-1931S 1" Neodymium Full Range Driver. Part Number: 264-923 by Tang Band.

Tang Band . W1-1931S

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTang Band
DimensionUnitinch
Extra Product NameTang Band W1-1931S 1" Neodymium Full Range Driver
UPC844632099410
Weight0.1
WeightUnitlbs
depth, length, Total Q (Qts)0.46
diameter, height, width1.22
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelW1-1931S
qtyInStock-2
qtySourceFieldMap
SKU, Part Number264-923
snippetTang Band W1-1931S 1" Neodymium Full Range Driver. Part Number: 264-923 by Tang Band.
tierMinQty24
tierMinQty310
tierPrice125.98
tierPrice223.38
tierPrice322.08
Unit of MeasureEach
Nominal Diameter1"
Power Handling (RMS)2 Watts
Power Handling (MAX)4 Watts
Impedance4?
Frequency Response170 to 20,000Hz
Sensitivity76dB 2.83V/1m
Voice Coil Diameter0.76"
Resonant Frequency (Fs)170Hz
DC Resistance (Re)3.6?
Voice Coil Inductance (Le)0.06mH
Mechanical Q (Qms)3.11
Electromagnetic Q (Qes)0.54
Compliance Equivalent Volume (Vas)0.0007ft?
Mechanical Compliance of Suspension (Cms)0.85mm/N
BL Product (BL)2.6T?m
Maximum Linear Excursion (Xmax)1.2mm
Surface Area of Cone (Sd)4.5cm?
Cone MaterialPoly Composite
Surround MaterialSantoprene?
Magnet MaterialNeodymium
Overall Outside Diameter, Baffle Cutout Diameter1.22"
Depth0.46"
Sealed Volume, Vented Volume0.002ft?
Sealed F3312.7Hz
Vented F3142.1Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com264-9231-211 @ $25.98, 4 @ $23.38, 10 @ $22.08
