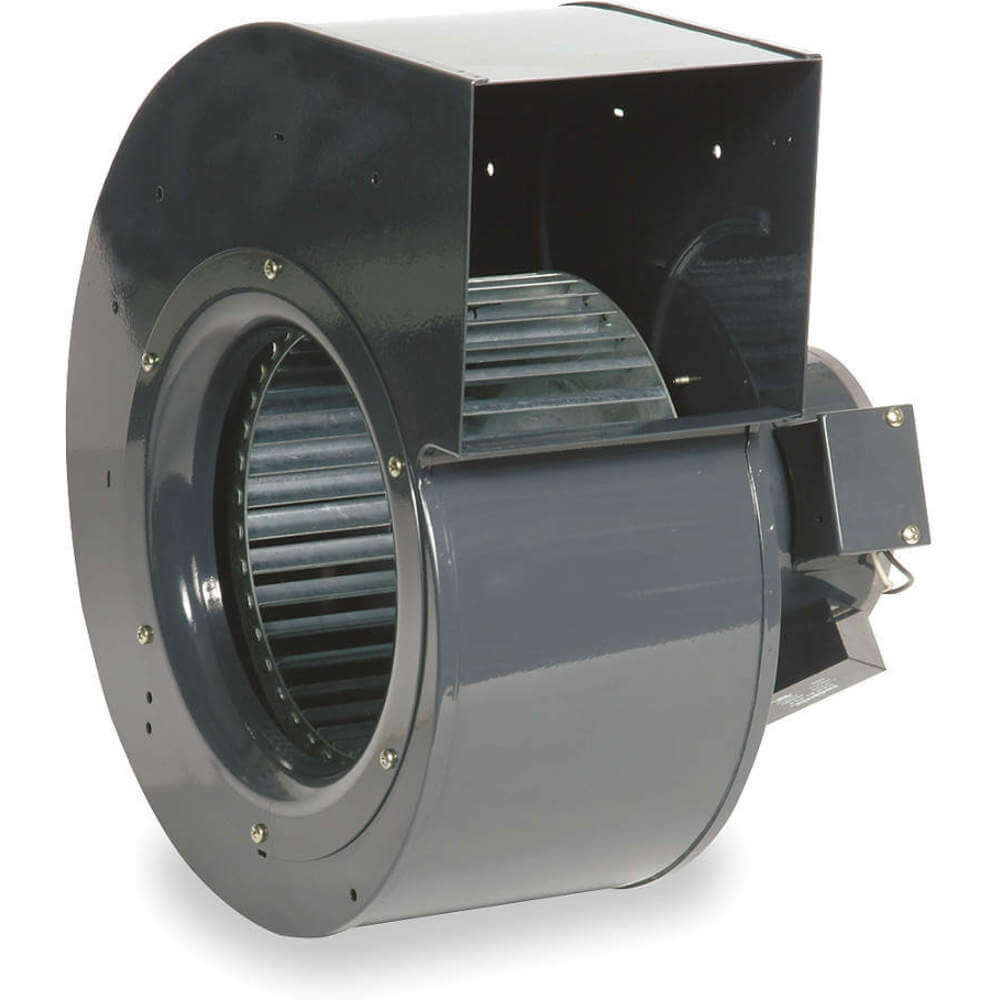

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 8 1/4 in, Airflow @ 0.000 in SP 1,202 cfm, Airflow @ 0.100 in SP 1,170 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 1,164 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 1,120 cfm, Airflow @ 0.500 in SP 1,100 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 8 1/4 in, Airflow @ 0.000 in SP 1,202 cfm, Airflow @ 0.100 in SP 1,170 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 1,164 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 1,120 cfm, Airflow @ 0.500 in SP 1,100 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable

Dayton . 1TDU2

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId, CategoryIdL35000
CategoryIdL130
CategoryIdL24581
CategoryL1Heating & Cooling
CategoryL2Blowers
CategoryL3OEM Specialty Blowers
DimensionUnitinch
GTIN, UPC190735147313
GraingerSku, MPN1TDU2
UnitOfMeasureEA
Weight26.2
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginCN
height15.75
jsonUrlData924526ffbdad25e5923b
length19
moq, multiple, tierMinQty1, Number of Speeds, Phase1
qtyInStock416
qtyInStockOverride-2
SKUG1032927
tierPrice1264.99
urlhttps://www.zoro.com/dayton-rectangular-oem-blower-1390-rpm-1-phase-direct-rolled-steel-1tdu2/i/G1032927/
width18.25
Inlet Dia, Inlet Diameter7 in
Overall Height, Dimension E, Housing Height14 7/8 in
Overall Width, Housing Width11 15/16 in
Blower Wheel Diameter, Wheel Diameter8 1/4 in
Dimension A, Overall Depth, Housing Depth13 1/8 in
Dimension F, Outlet Height5 9/16 in
Dimension B10 in
Outlet Width7 1/8 in
Lead Length13 in
Dimension C11 5/16 in
Blower Wheel Width1 7/8 in
Dimension D7 5/16 in
Dimension J2 1/4 in
Outlet Diameter, Flange Size, Airflow @ 1 250 in SP, Airflow @ 6 000 in SP, Airflow @ 13 00 in SP, Airflow @ 4 500 in SP, Airflow @ 2 000 in SP, Airflow @ 7 000 in SP, Airflow @ 12 00 in SPNot Applicable
Shaft Diameter, Wheel Bore Diameter14 mm
Wheel Dimensions8 1/4 in Dia. x 5 1/4 in W
Outlet Size5 1/2 in x 7 1/8 in
Manufacturer Warranty Length1 yr Limited
Wheel Width5 1/4 in
CFM @ 0 100-In SP1170
Drive TypeDirect
Full Load Amps7.30/3.70
Housing MaterialSteel
Blower ItemOEM Specialty Blower
Blower Outlet Shape, Outlet Shape_broad, Outlet ShapeRectangular
With Flange, Corrosion Resistant, Chemical ResistantNo
Blower Motor TypePermanent Split Capacitor
Blower Voltage, Nameplate Voltage115/230V AC
Blower Thermal ProtectionAuto
Blower Conduit Box, OEM Replacement, Includes Motor, Thermal Overload ProtectionYes
Motor InsulationClass B
CFM @ 0 700-In SP1075
RPM1390
Max Inlet Temp, Max Ambient Temp, Maximum Inlet Air Temperature, Maximum Ambient Temperature104 Degrees F
CFM @ 0 400-In SP1120
Agency Compliance, StandardsCE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Housing Finish, Housing Material FinishEnamel
Motor EnclosureOpen
CFM @ 0 500-In SP1100
Replaces4C831
Housing ColorGray
ItemOEM Blower
CFM @ 0 200-In SP1150
CFM @ 0 000-In SP1202
Mounting PositionAll Position
Bearing TypeBall
CFM @ 0 600-In SP1080
CFM @ 0 800-In SP1040
Hz60
CFM @ 0 300-In SP1140
Wheel TypeForward Curve
For LocationIndoor
AssemblyAssembled
Flange Type_broadOutlet
Minimum Ambient Temperature-10 Degrees C
Airflow @ Static Pressures1,202 cfm @ 0.000 in SP / 1,164 cfm @ 0.250 in SP
Airflow @ 0 400 in SP1,120 cfm
Brake Horsepower1/2 hp
RotationCW
Airflow @ 0 500 in SP1,100 cfm
Resistance PropertiesCorrosion Resistant
Airflow @ 0 500 in SP Range1000 to 1999
Motor LocationOut of Airstream
Airflow @ 0 100 in SP1,170 cfm
Motor Enclosure Design_TableOpen Motor
Motor IP RatingIP20
Motor Insulation ClassB
