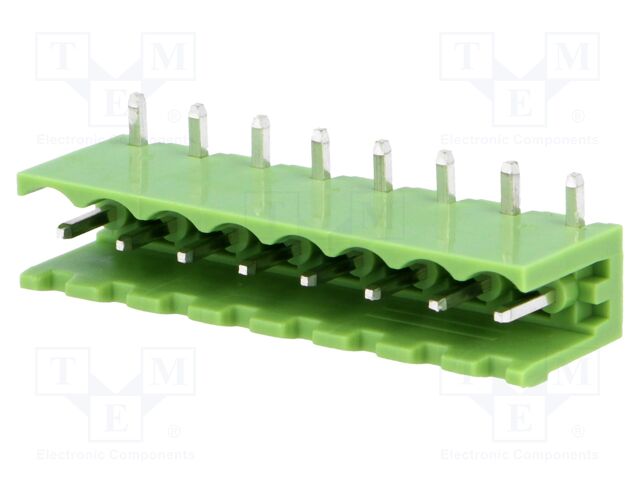

XINYA XY2500R-C(5.08)-8PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 8; socket

XINYA XY2500R-C(5.08)-8PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 8; socke

XINYA . XY2500R-C(5.08)-8PIN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerXINYA
CategoryL1Connectors
CategoryL2Power connectors
CategoryL3Terminal blocks
CategoryL4Pluggable terminal blocks
DimensionUnitmm
Extra Product NameXINYA XY2500R-C(5.08)-8PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 8; socket
atoms1
height8.4
height_AttribHeight
jsonUrlDatab768a95a727f2376c63e8e926dd31a73.
jsonUrlData208a9d26256852c36d1a8
keywordsXINYA, XY2500R-C(5.08)-8PIN, TBG-5-KB-8P-GN
moq, multiple, tierMinQty15
MPNXY2500R-C(5.08)-8PIN
qtyInStock2305
SKUTBG-5-KB-8P-GN
snippetXINYA XY2500R-C(5.08)-8PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 8; socke
tierMinQty225
tierMinQty3100
tierMinQty4500
tierMinQty52000
tierPrice10.392
tierPrice20.358
tierPrice30.341
tierPrice40.308
tierPrice50.275
Type of connectorpluggable terminal block
Contacts pitch5.08mm
Number of ways, Number of pins8
Spatial orientationangled 90?
Connectorsocket
Kind of connectormale
Mechanical mountingon PCBs
Electrical mountingTHT
Colourgreen
Rated voltage300V
Current rating12A
Body materialpolyamide 66
Flammability ratingUL94V-0
Locking systemfriction lock
Connector pinout layout1x8
Conform to the normUL
Contact platingtinned
Operating temperature-40...105?C
Contact materialbrass
Connector variantwithout side walls
Height8.4mm
Connectors featuresassembling possibility

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMETBG-5-KB-8P-GN5230555 @ $0.39, 25 @ $0.36, 100 @ $0.34, 500 @ $0.31, 2000 @ $0.28
