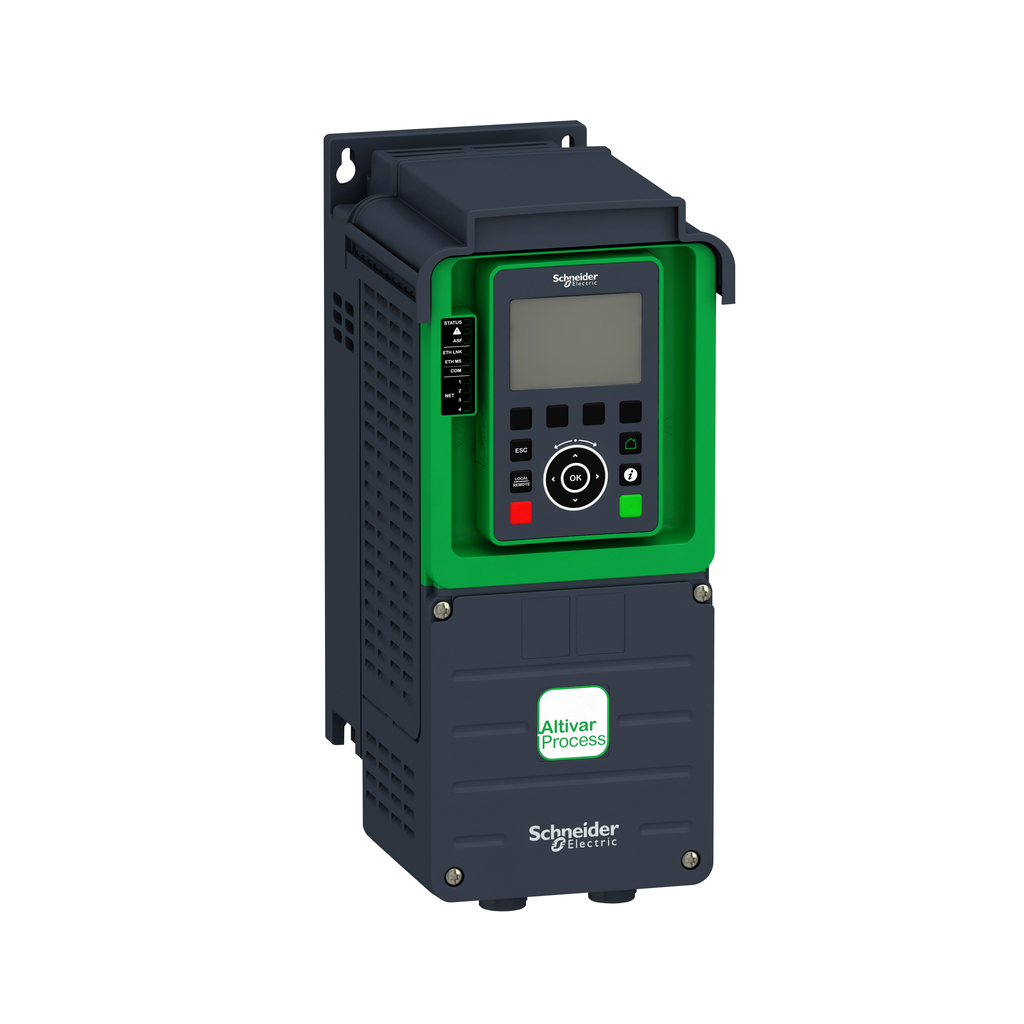

Variable speed drive, Altivar Process ATV600, ATV630, 1.5kW/2 hp, 200...240 V, IP21/UL type 1 | Mayer Electric

SQUARE D . SQDATV630U15M3

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameVariable speed drive, Altivar Process ATV600, ATV630, 1.5kW/2 hp, 200...240 V, IP21/UL type 1 | Mayer Electric
UPC3606480761621
Weight4.3
WeightUnitkg
Weight_AttribNet Weight
depth, length203.0
height350.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Variable-speed-drive-Altivar-Process-ATV600-ATV630-1-5kW-2-hp-200-240-V-IP21-UL-type-1-3606480761621
jsonUrlData27e519392-b229-441a-9292-aeea0054cb4c
length_AttribDepth
moq, multiple, tierMinQty1, Quantity Per Set1
MPN, SKUSQDATV630U15M3
qtyInStock, Discrete Output Number0
tierPrice11314.45
width144.0
width_AttribWidth
Prospective Line Isc50 kA
Product Destinationasynchronous motors || synchronous motors
Line Current5.9 A 200 V normal duty) || 5 A 240 V normal duty) || 3.3 A 200 V heavy duty) || 3 A 240 V heavy duty)
Emc Filterwithout EMC filter
Asynchronous Motor Control Profileconstant torque standard || variable torque standard || optimized torque mode
Variantstandard version
Product Or Component Typevariable speed drive
Apparent Power2.1 kVA 240 V normal duty) || 1.2 kVA 240 V heavy duty)
Switching Frequency2...12 kHz adjustable || 4...12 kHz with derating factor
Communication Port ProtocolModbus serial || Ethernet || Modbus TCP
Product Specific Applicationprocess and utilities
Safety FunctionSTO (safe torque off) SIL 3
Maximum Horse Power Rating2 hp normal duty || 1 hp heavy duty
Supply Frequency50...60 Hz - 5...5 %
Degree Of ProtectionUL type 1 UL 508C
Range Of ProductAltivar Process ATV600
Speed Drive Output Frequency0.1-500 Hz
Ip Degree Of ProtectionIP21IEC 61800-5-1 || IP21IEC 60529
Motor Power Kw1.5 kW normal duty) || 0.75 kW heavy duty)
[Us] Rated Supply Voltage200...240 V
Maximum Transient Current8.8 A 60 s normal duty) || 6.9 A 60 s heavy duty)
Discrete Input Logic16 preset speeds
Type Of Coolingforced convection
Continuous Output Current8 A 4 kHz normal duty || 4.6 A 4 kHz heavy duty
Nominal Switching Frequency4 kHz
Device Short NameATV630
Synchronous Motor Control Profilepermanent magnet motor || synchronous reluctance motor
Exchange Modehalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Power Range1.1-2 kW 200-240 V 3 phase
Phase3 phase
Net Weight4.3 kg
Type Of Polarizationno impedance
Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles
Frequency Resolutiondisplay unit 0.1 Hz || analog input 0.012/50 Hz
Analogue Input Number, Relay Output Number3
Motor Slip Compensationautomatic whatever the load || can be suppressed || adjustable || not available in permanent magnet motor law
Method Of Accessslave Modbus TCP
Discrete Input Number8
Local Signallingfor local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)
Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
Number Of Addresses1-247 Modbus serial
Width144 mm
Transmission Rate10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Depth203 mm
Sampling Duration2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Electrical Connectioncontrol removable screw terminals 0.5...1.5 mm? AWG 20...AWG 16 || motor screw terminal 2.5...6 mm? AWG 14...AWG 10 || line side screw terminal 2.5...6 mm? AWG 14...AWG 10
Maximum Output Frequency500 kHz
Height350 mm
Acceleration And Deceleration Rampslinear adjustable separately from 0.01...9999 s
Transmission FrameRTU
Data Format8 bits, configurable odd, even or no parity
Accuracy+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 ?C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 ?C analog output
Connector TypeRJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
Input CompatibilityDI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
Permissible Temporary Current Boost1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
Mounting Modewall mount
Analogue Output Number, Pollution Degree2
Physical InterfaceEthernet || 2-wire RS 485
Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
Enclosure Mountingwall mounted
Isolationbetween power and control terminals
Braking To Standstillby DC injection
Mercury Free, Rohs Exemption InformationYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
UpgradeabilityUpgraded components available
Environmental DisclosureENVPEP1501005EN
Sustainable Offer StatusGreen Premium product
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileENVEOLI1501005EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsATEX INERIS || CSA || T?V || ATEX zone 2/22 || DNV-GL || UL
Power Dissipation In Wnatural convection 29 W 200 V 4 kHz || forced convection 53 W 200 V 4 kHz
StandardsUL 508C || EN/IEC 61800-3 || EN/IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth
Shock Resistance15 gn 11 ms IEC 60068-2-27
Vibration Resistance1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
Noise Level54.5 dB 86/188/EEC
Regulation Loopadjustable PID regulator
Overvoltage CategoryIII
Ambient Air Temperature For Operation-15-50 ?C without derating) || 50-60 ?C with derating factor)
Volume Of Cooling Air38 m3/h
MarkingCE

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDATV630U15M3111 @ $1314.45
