OD6038-12HBVXC Orion Fans | Fans, Thermal Management | DigiKey

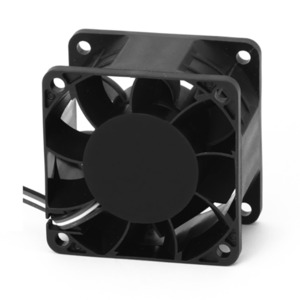

Fans Fan 60x38 12VDC Ball HiSpeed 61cfm 64dBA
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD6038-12HBVXC Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD6038-12HBVXC |
| qtyInStock | 77 |
| SKU | 1053-1249-ND |
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 60mm L x 60mm H |
| Width | 38.00mm |
| Air Flow | 61.0 CFM (1.71m?/min) |
| Static Pressure | 1.590 in H2O (396.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Noise | 64.0dB |
| RPM | 10000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection, Weight, Voltage Range | - |
| Operating Temperature | 14 ~ 158?F (-10 ~ 70?C) |
| Approval Agency | cURus, TUV |
| Current Rating (Amps) | 1.42A |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Lifetime @ Temp | 50000 Hrs @ 40?C |
| Power (Watts) | 17 W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1249-ND | 1 | 77 | 1 | |
| OD6038-12HBVXC | 1 | 27 | 1 | 1 @ $14.87, 25 @ $14.13, 100 @ $13.49, 250 @ $13.11, 500 @ $12.93 | |
| Heilind Electronics | OD6038-12HBVXC | 1 | 19 | 1 | 1 @ $21.00 |
| Hotenda | H1901320 | 1 | 54 | 1 | 1 @ $18.51, 10 @ $16.83, 25 @ $16.27, 100 @ $14.03, 250 @ $13.74, 500 @ $13.69 |
 Carlton Bates Company | 40308486149 | 1 | 1 | 1 @ $0.00 | |
 AmazonTP | B00MEJ92I6 | 1 | 1 | 1 @ $24.55 | |
 Newark | 89AH2598 | 1 | 1 | 1 | 1 @ $12.84, 5 @ $12.84, 10 @ $12.84, 25 @ $12.84, 50 @ $12.84, 100 @ $12.84 |
| Digi-Key | 2621154 | 1 | 1196 | 1 | 1 @ $24.80, 10 @ $22.64, 25 @ $21.79, 50 @ $20.35, 100 @ $18.78, 250 @ $18.49, 500 @ $18.35 |
 Galco | OD6038-12HBVXC-ORIN | 20 | 20 | 1 @ $26.76 | |
| 10141362 | 1 | 30 | 1 | 1 @ $22.70 |
