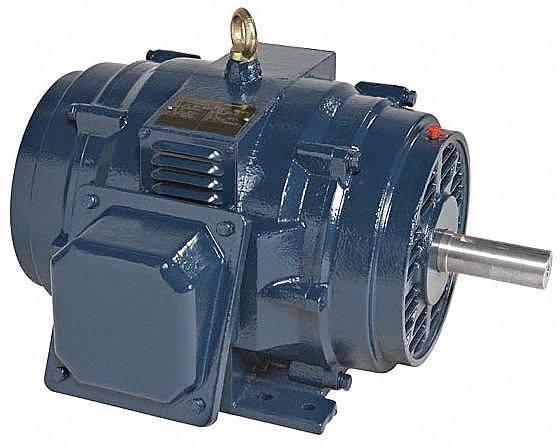

MOTOR, 5HP,1200RPM,3/60/208-230/460

HUB CITY . GT0014

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHUB CITY
DimensionUnitinch
Extra Product NameMOTOR, 5HP,1200RPM,3/60/208-230/460
UNSPSC26101112
Voltage230/460V AC
Weight127.0
WeightUnitlbs
diameter, length, width1.375
length_Attrib, width_AttribShaft Dia.
moq, multiple, tierMinQty1, No of Speeds1
MPNGT0014
originalCurrency{'currency': 'CAD', 'tierPrice1': '1612.32'}
qtyInStock0
SKUAOSGT0014
tierPrice11170.23152992
ItemGeneral Purpose Motor
PhaseThree
HP5
Full Load Amps13.8/6.9
Usable @ 208V, Usable @ 200VNo
Hz60
Max Ambient Temp40 Degrees C
Duty CycleContinuous
NEMA DesignB
Motor Shaft RotationCW/CCW
Motor Mounting PositionHorizontal
Motor Shaft DesignKeyed
Shaft Dia1 3/8 in
Motor BearingsBall
Overall Length17 1/2 in
Nominal Efficiency91.7 %
StandardsUL (E49747), CSA (LR2025), CE
Green Certification or Other RecognitionNEMA Premium(R) Rated
Motor ApplicationGeneral Application
Motor Design3-Phase
Nameplate RPM1,180
Frame215T
Motor Service Factor1.15
Motor Thermal ProtectionNone
Ins ClassF
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeRigid Base
Inverter RatedYes
Motor Frame MaterialSteel
Shaft Length3 3/8 in
Length Less Shaft14 1/8 in
IncludesConduit Box
Motor Efficiency GroupNEMA Premium Efficient
CC NumberCC003A
Manufacturers Warranty Length1 yr

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caAOSGT0014111 @ $1170.23
