G125-MS12605M3P Harwin Inc. | Connectors, Interconnects | DigiKey

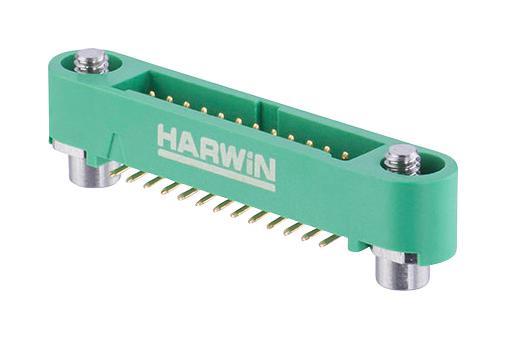

Connector Header Surface Mount 26 position 0.049\

Harwin Inc. . G125-MS12605M3P

Attributes

Brand name, Manufacturer name, Manufacturer, MfrHarwin Inc.
DimensionUnitmm
Extra Product NameG125-MS12605M3P Harwin Inc. | Connectors, Interconnects | DigiKey
atoms, moq, multiple1
extraShipping, qtyInStock0
height7.3
height_AttribMated Stacking Heights
MPNG125-MS12605M3P
packaging, PackageStrip
SKU9739343
snippetConnector Header Surface Mount 26 position 0.049\
tierMinQty1250
tierPrice115.19344
CategoryConnectors, Interconnects
SeriesGecko SL Reverse Fix
Product StatusActive
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating, Row Spacing - Mating0.049" (1.25mm)
Number of Positions26
Number of Rows2
Number of Positions LoadedAll
StyleBoard to Board or Cable
ShroudingShrouded - 4 Wall
Mounting TypeSurface Mount
TerminationSolder
Fastening TypeScrew Lock
Contact Length - Mating, Contact Length - Post, Overall Contact Length, Ingress Protection, Applications-
Insulation Height0.193" (4.90mm)
Contact ShapeCircular
Contact Finish - Mating, Contact Finish - PostGold
Contact Finish Thickness - Mating, Contact Finish Thickness - Post8.00?in (0.203?m)
Contact MaterialPhosphor Bronze
Insulation MaterialPolyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
FeaturesMating Flange, Mounting Flange, Pick and Place
Operating Temperature-65?C ~ 150?C
Material Flammability RatingUL94 V-0
Insulation ColorGreen
Current Rating (Amps)2A
Voltage Rating450V
Mated Stacking Heights7.3mm, 7.44mm
Base Product NumberG125-MS1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key973934311250 @ $15.19
Newark89AH533320201 @ $23.92, 25 @ $21.91, 50 @ $20.36, 100 @ $19.69, 250 @ $19.02
Newark84AC1660111 @ $19.93, 10 @ $18.45, 50 @ $16.13, 100 @ $14.19, 250 @ $13.26, 500 @ $12.98, 1000 @ $12.33
