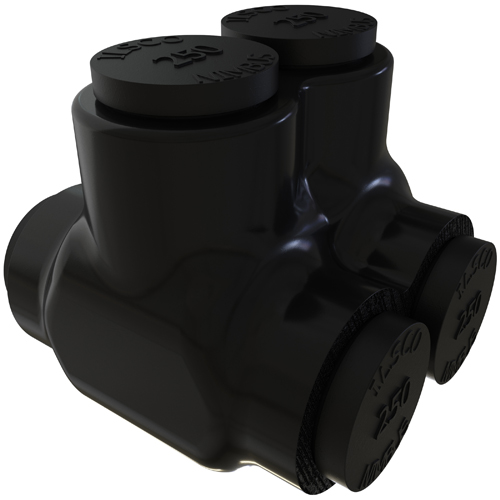

Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 250-6, 2 Ports, Dual Sided Entry, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . PBTD-2-250

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameNimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 250-6, 2 Ports, Dual Sided Entry, Tin Plated, UL, CSA | Mayer Electric
UPC783669077889
Weight0.261
WeightUnitlbs
Weight_AttribWeight
height2.041
height_AttribHeight
jsonUrlData/Product/ILSCO-Nimbus-Insulated-Aluminum-Multi-Tap-Connector-Conductor-Range-250-6-2-Ports-Dual-Sided-Entry-Tin-Plated-UL-CSA-783669077889
jsonUrlData223ef0513-9b34-4cf1-98b0-abb200c8eddc
length2.094
length_AttribLength
moq, multiple, tierMinQty1, Number of Poles, Number of Wire Binding Screws per Port, Bag Quantity1
MPNPBTD-2-250
qtyInStock0
SKUILSPBTD2250
tierPrice149.07
width2.318
width_AttribWidth
Height2.041 in | 51.8414 mm
Length2.094 in | 53.1876 mm
Width2.318 in | 58.8772 mm
ConnectionMechanical
Contains DE-OX?, Dual RatedYes
Number of Conductors, Number of Ports / Wireways, Number of Usable Ports, Number of Usable Taps2
Replacement Part(s)PORTPLUG-250, SCREWCAP-250
Drive Size Main5/16
Drive Type MainInternal Hex
Height BX (IN)2.75
Height (mm)51.8414
Length (mm)53.1876
Max Insulation OD (IN)0.75
Max Insulation OD (mm)19.05
Weight BX (LB)2.365
Width BX (IN)5
Width (mm)58.8772
Conductor TypeStranded
Conductor MaterialCopper, Aluminum
Connector Finish, Wire Binding Hardware FinishTin
InsulationPlastisol
Material, Wire Binding Hardware MaterialAluminum
Wire Binding Screw Size9/16
Wire Binding Torque275
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)250 kcmil - 6 Str
Voltage Rating600 V
Cap Color Main, Cap Color Tap, ColorBlack
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 Compliance : WARNINGCancer and Reproductive Harm - www.P65warnings.ca.gov
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 6
NEMA CodeS-588-4
UPC Code78366907788
Environmental ConditionsCold temperature rated to -45?C
Flammability RatingInsulation rated per UL 94
Temperature Rating90?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSPBTD2250111 @ $49.07
