MPX1D1770L1R5 KEMET | Inductors, Coils, Chokes | DigiKey
KEMET MPX1D1770L1R5 | Inductor: wire; SMD; 1.5uH; Ioper: 38A; 1.8m?; ?20%; Isat: 45A; 100kH

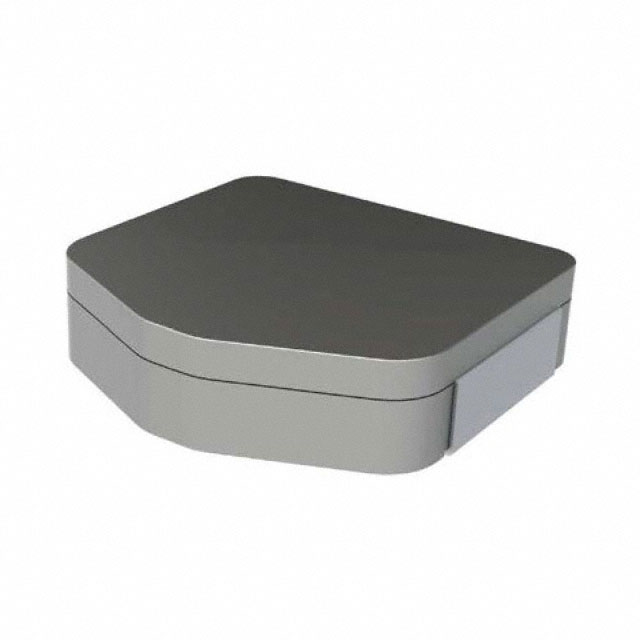

Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | KEMET |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | MPX1D1770L1R5 KEMET | Inductors, Coils, Chokes | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 0.276 |
| height_Attrib | Height - Seated (Max) |
| MPN | MPX1D1770L1R5 |
| qtyInStock | 100 |
| SKU | 10441356 |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 50 |
| tierPrice1 | 5.59000 |
| tierPrice2 | 5.30800 |
| tierPrice3 | 5.02880 |
| tierPrice4 | 4.02300 |
| Category | Inductors, Coils, Chokes |
| Series | METCOM MPX |

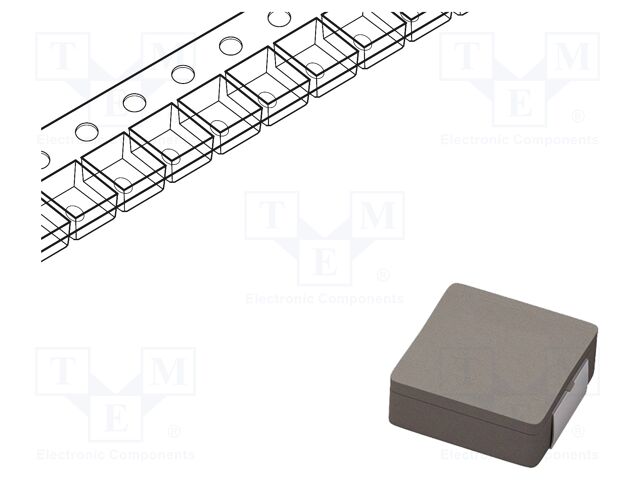

| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal Composite |
| Tolerance | ?20% |
| Current - Saturation (Isat) | 45A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.8mOhm Max |
| Q @ Freq, Ratings, Features, Supplier Device Package | - |
| Frequency - Self Resonant | 18MHz |
| Operating Temperature | -55?C ~ 155?C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.669"" L x 0.673"" W (17.00mm x 17.10mm) |
| Height - Seated (Max) | 0.276"" (7.00mm) |
| Inductance | 1.5?H |
| Current Rating (Amps) | 38A |
| Inductance Frequency - Test | 100kHz |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 10441356 | 1 | 100 | 1 | 1 @ $5.59, 10 @ $5.31, 25 @ $5.03, 50 @ $4.02 | |
| MPX1D1770L1R5 | 10 | 10 | 10 @ $4.80, 100 @ $3.66 | ||
 Newark | 65AH8458 | 1 | 50 | 1 | 1 @ $5.21, 10 @ $3.95, 25 @ $3.57, 50 @ $3.18, 100 @ $2.80, 250 @ $2.71, 500 @ $2.58 |
| Digi-Key | 10441235 | 1 | 97 | 1 | 1 @ $6.21, 10 @ $5.64, 25 @ $5.08, 50 @ $4.06, 100 @ $2.94 |
| Digi-Key | 10441330 | 50 | 97 | 50 | 1 @ $6.21, 10 @ $5.64, 25 @ $5.08, 50 @ $4.06 |
