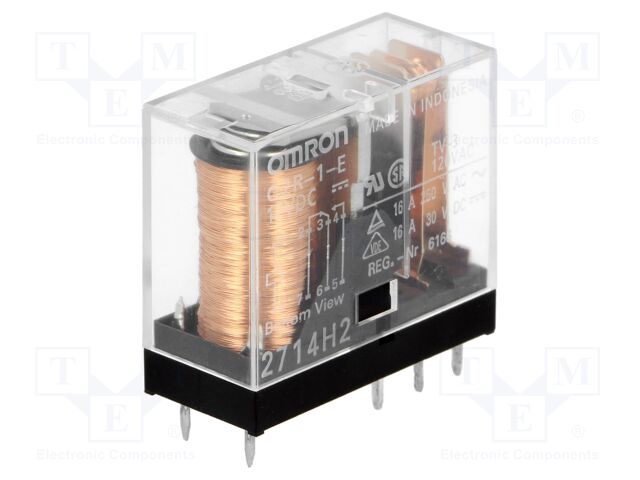

OMRON OCB G2R-1-E 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
OMRON OCB G2R-1-E 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2R-1-E 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 5311481aaaf4e49002fd6a3529abfa66. |
| jsonUrlData2 | 2792b63d672dc7b488f8 |
| keywords | OMRON OCB, G2R-1-E 12VDC, G2R-1-E-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | G2R-1-E 12VDC |
| qtyInStock | 3988 |
| SKU | G2R-1-E-12DC |
| snippet | OMRON OCB G2R-1-E 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.49 |
| tierPrice2 | 3.18 |
| tierPrice3 | 2.47 |
| tierPrice4 | 2.3 |
| tierPrice5 | 2.14 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 12V DC |
| Contact current max | 16A |
| AC contacts rating @R | 16A / 250V AC |
| DC contacts rating @R | 16A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature, |
| Mounting | PCB |
| Coil resistance | 275? |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Operating temperature | -40...70?C |
| Relay series | G2R |
| Contact resistance | 30m? |
| Terminal pitch | 5mm |
| Coil current | 43.6mA |
| Enclosure description | standard seal |
| Leads | for PCB |
| Related items | PODST-3 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-1-E-12DC | 1 | 3988 | 1 | 1 @ $3.49, 5 @ $3.18, 25 @ $2.47, 100 @ $2.30, 500 @ $2.14 | |
 TME | G2R-1-E-12VDC | 1 | 1 |
