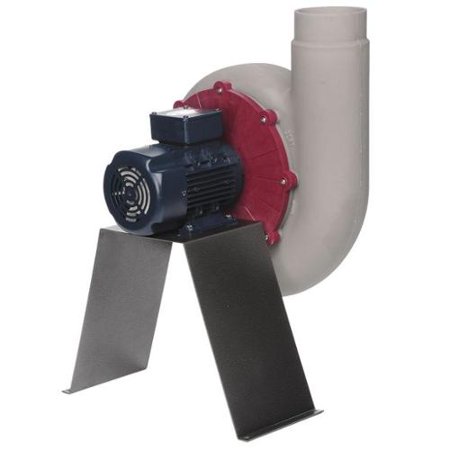

Blower, Direct Drive Forward Curve, Wheel Dia. (In.) 9.75, Wheel Width (In.) 3.50, 69.1 dBA @ 5 Feet, Max. Inlet Temp. (Deg. F) 140, Max. Ambient Temp. (F) 102, Voltage 230/460, 50/60 Hz, 3 Phase, Full Load Amps 1.8/0.90, Motor HP 1/2, Motor RPM 1725, Motor Type General Purpose, Motor Enclosure Totally Enclosed Fan Cooled, Motor Frame 56YZ, Bearing Type Ball Bearing, Shaft Dia. (In.) 19 mm, Height (In.) 19.52, Width (In.) 16.53, Depth (In.) 19.05, Inlet Dia. (In.) 4.53, Outlet Dia. (In.) 4.53 Features Applications, Comments: Designed to Exhaust Fumes from Highly Corrosive Environments Such as Laboratories, Chemical Plants and Hospitals Bearing Type: Ball Bearing CFM @ 1.500-In. SP: 400 CFM @ 2.000-In. SP: 125 dBA @ 5 Feet: 69.1 Depth (In.): 19.05 Full Load Amps: 1.8/0.90 Height (In.): 19.52 Includes: Metal Stand Inlet Dia. (In.): 4.53 Item: Blower Motor HP: 1/2 Motor RPM: 1725 Outlet Dia. (In.): 4.53 Phase: 3 Shaft Dia. (In.): 19 mm Type: Direct Drive Forward Curve Wheel Dia. (In.): 9.75 Wheel Width (In.): 3.50 Width (In.): 16.53 Blower RPM: 1725 Housing Finish: Polypropylene Housing Material: Polypropylene Hz: 50/60 Max. Ambient Temp. (F): 102 Motor Enclosure: Totally Enclosed Fan Cooled Motor Frame: 56YZ Motor Type: General Purpose Rotation: CCW Voltage: 230/460 Wheel Type: Polypropylene Max. Inlet Temp. (Deg. F): 140 Wheel Material: Polypropylene

Blower, Direct Drive Forward Curve, Wheel Dia. (In.) 9.75, Wheel Width (In.) 3.50, 69.1 dBA @ 5 Feet, Max. Inlet Temp. (Deg. F) 140, Max. Ambient Temp. (F) 102, Voltage 230/460, 50/60 Hz, 3 Phase, Full Load Amps 1.8/0.90, Motor HP 1/2, Motor RPM 1725, Motor Type General Purpose, Motor Enclosure Totally Enclosed Fan Cooled, Motor Frame 56YZ, Bearing Type Ball Bearing, Shaft Dia. (In.) 19 mm, Height (In.) 19.52, Width (In.) 16.53, Depth (In.) 19.05, Inlet Dia. (In.) 4.53, Outlet Dia. (In.) 4.53 Features Applications, Comments: Designed to Exhaust Fumes from H
