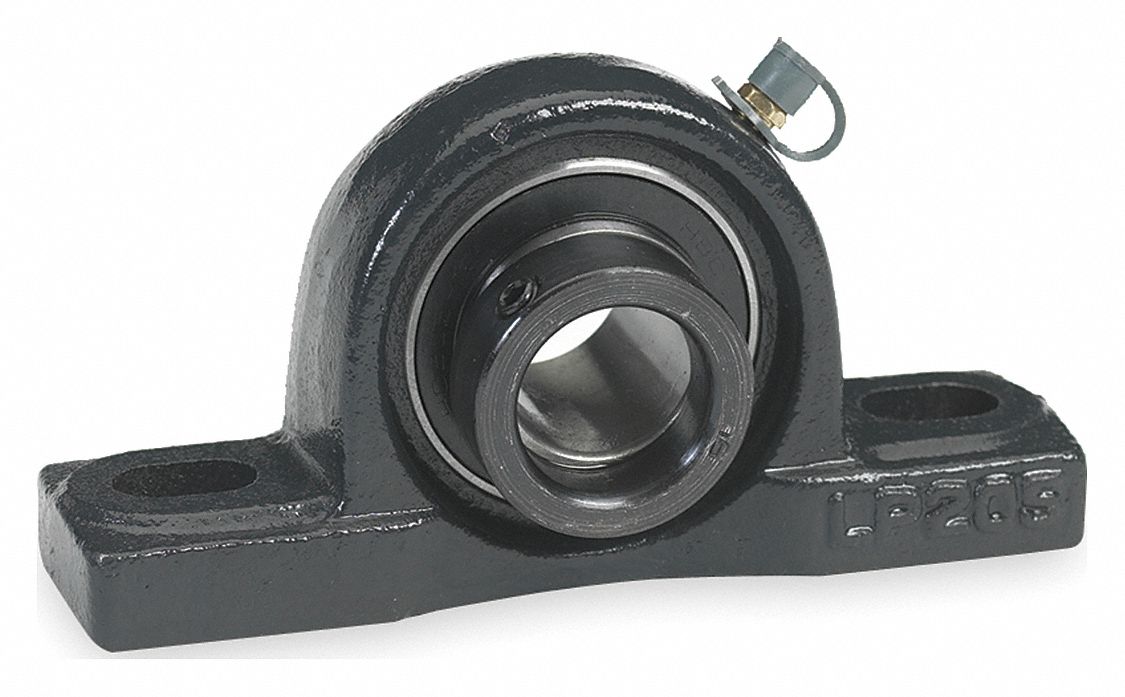

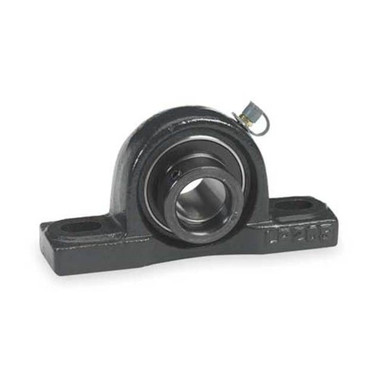

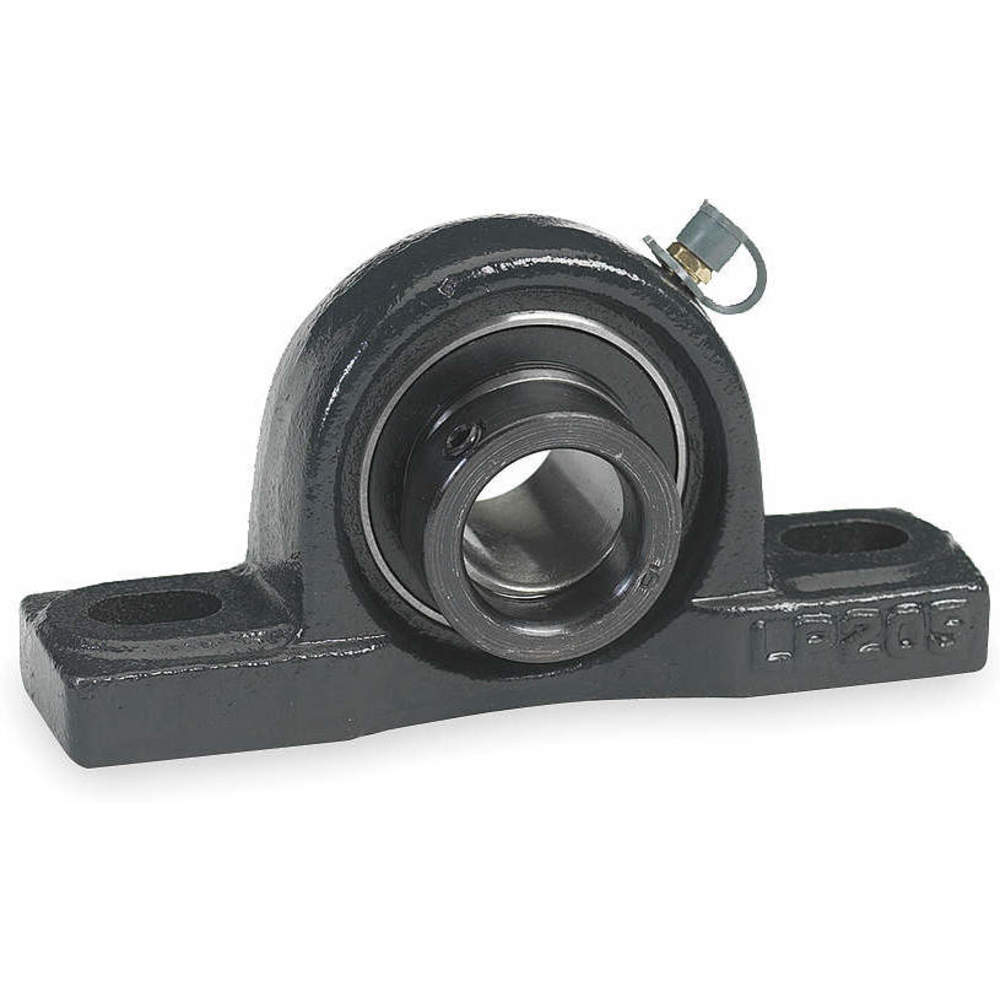

Pillow Block Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Center Height 1 13/16 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NGLI #2 Equivalent, Maximum Temperature 200 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Length 5 3/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 3.687 in, Overall Length 7 in, Overall Width 2 in

Pillow Block Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Center Height 1 13/16 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NGLI #2 Equivalent, Maximum Temperature 200 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Length 5 3/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 3.687 in, Overall Length 7 in, Overall Width 2 in

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId, CategoryIdL39348
CategoryIdL131
CategoryIdL217014
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Pillow Block & Flange Bearings
CategoryL4Pillow Block Bearings
DimensionUnitinch
GTIN, UPC190735282663
GraingerSku, MPN3FCT8
UnitOfMeasureEA
Weight4.1
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginCN
height2.4
jsonUrlData924526ffbdad25e5923b
length7.7
moq, multiple, tierMinQty11
qtyInStock51
qtyInStockOverride-2
SKUG2092142
tierPrice154.59
urlhttps://www.zoro.com/dayton-pillow-block-bearing-ball-1-716-bore-3fct8/i/G2092142/
width4.6
Bore Dia, Bore Diameter1 7/16 in
Bolt Size, Mounting Bolt Size1/2 in
Overall Height, Dimension B3 11/16 in
Overall Width, Dimension G2 in
Dimension E19/32 in
Overall Length, Dimension C7 in
Dimension D, Mount Hole Center-to-Center Length, Bolt Hole Center-to-Center5 3/8 in
Dimension A, Center Height, Mounting Surface to Shaft Center1 13/16 in
Bearing Insert TypeBall
Shaft Locking TypeEccentric Collar
Bearing Housing Material TypeCast Iron
Bearing Insert Material52100 Chrome Steel
SeriesStandard Duty
Number of Bolts2
Temp Range-20 Degrees to 200 Degrees F

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG209214215111 @ $54.59
Grainger3FCT811
Raptor SuppliesAC9ADG111 @ $89.67
grainger.caGGF3FCT8111 @ $60.31
sustainablesupply.comC27747361-211 @ $57.71
simsupply.comZO-G209214212211 @ $65.96
