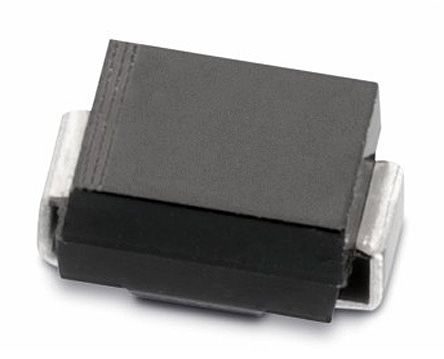

Wurth Elektronik . 824501851
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | Wurth Elektronik |
|---|---|
| jsonUrlData | 9217373 |
| moq, multiple, Number of Elements per Chip | 1 |
| MPN | 824501851 |
| SKU | 921-7373 |
| Diode Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Length | 4.24mm |
| Maximum Clamping Voltage | 137V |
| Minimum Breakdown Voltage | 99.2V |
| Maximum Peak Pulse Current | 2.9A |
| Package Type | DO-214AC (SMA) |
| Mounting Type | Surface Mount |
| Minimum Operating Temperature | -65 °C |
| Width | 2.67mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
| Height | 2.14mm |
| Pin Count | Pin Count |
| Dimensions | Dimensions |
| Direction Type | Direction Type |
| Peak Pulse Power Dissipation | Peak Pulse Power Dissipation |
| Stock | Stock |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 921-7373 | 1 | 1 | |||
| 732-9971-1-ND | 1 | 1 | |||
 Newark | 81Y9969 | 5 | 5 | 1 @ $0.31, 10 @ $0.31, 25 @ $0.30, 50 @ $0.30, 100 @ $0.29 | |
| Digi-Key | 5870777 | 1 | 1 | ||
| Digi-Key | 5871124 | 1 | 1 |
