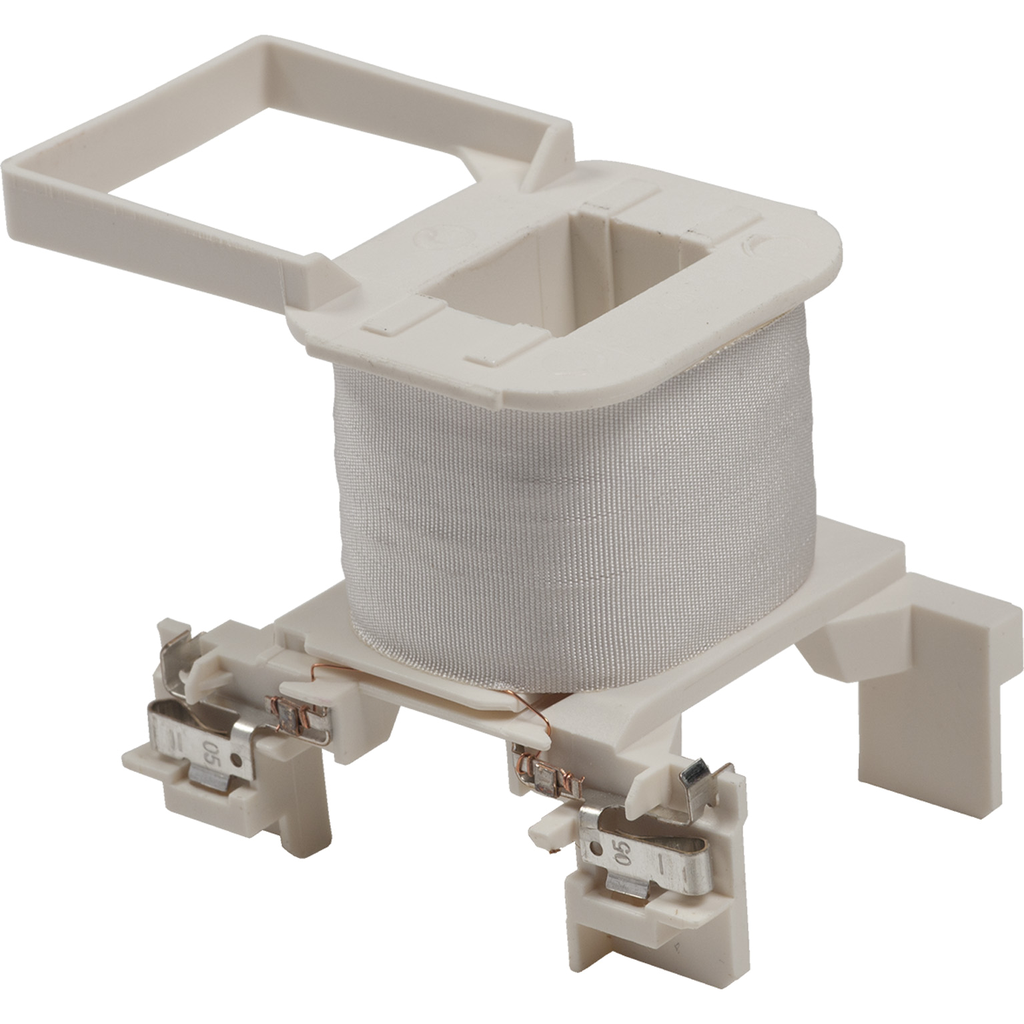

Contactor coil,TeSys Deca,208V AC 60Hz,for contactors D40A-D80A DT60A-DT80A | Mayer Electric

Mayer Electric Supply . LXD3LE7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameContactor coil,TeSys Deca,208V AC 60Hz,for contactors D40A-D80A DT60A-DT80A | Mayer Electric
UPC785901677109
Weight0.07
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Contactor-coil-TeSys-D-208-V-AC-60-Hz-for-contactors-D40A-D80A-DT60A-DT80A-785901677109
jsonUrlData2c3901fef-df79-4cc7-b163-abd200627838
moq, multiple, tierMinQty11
MPNLXD3LE7
qtyInStock0
SKUSQDLXD3LE7
tierPrice158.66
Average Resistance105 Ohm 20 ?C
[Uc] Control Circuit Voltage208 V AC 60 Hz
Control Circuit TypeAC 60 Hz
Product Or Component Typecontactor coil
RangeTeSys
Inductance Of Closed Circuit6.22 H
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability6 Mcycles
Product CompatibilityLC1D40A...D80A || LC2D40A...D80A || LC1DT60A...DT80A
Device Short NameLXD3
Warranty18 months
Control Circuit Voltage Limitsdrop-out 0.3...0.6 Uc 60 Hz 60 ?C) || operational 0.85...1.1 Uc 60 Hz 60 ?C)
Inrush Power In Va160-160 VA 60 Hz 0.75 20 ?C)
Coil Technologywithout built-in suppressor module
Hold-In Power Consumption In Va15-15 VA 60 Hz 0.3 20 ?C)
Heat Dissipation4-5 W 60 Hz
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1501004
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Circularity ProfileENVEOLI1501004
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation-5-60 ?C
Net Weight0.07 kg

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLXD3LE7111 @ $58.66
