OD8015-12HB Orion Fans | Fans, Thermal Management | DigiKey

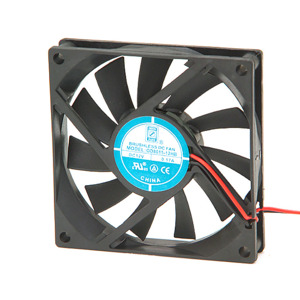

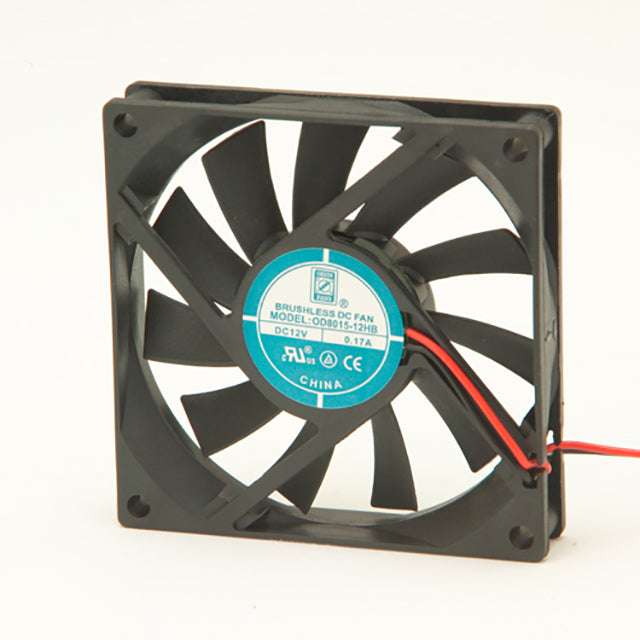

The Orion OD8015-12HB fan measures 80 x 80 mm and has a height of 15 mm. It operates at 12 VDC and draws 0.19 A. The fan's maximum airflow is 30 CFM and it produces 33 dBA of noise. The OD8015-12HB features a ball bearing design and operates at 3200 RPM.
OD8015-12HB In-Stock. Request a quote for the part number# OD8015-12HB. Call 877-240-8595 to order. Same day shipping on in-stock parts.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD8015-12HB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD8015-12HB |
| qtyInStock | 440 |
| SKU | 1053-1250-ND |
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 15.00mm |
| Air Flow | 30.0 CFM (0.840m?/min) |
| Static Pressure | 0.110 in H2O (27.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features, Ingress Protection, Weight | - |
| Noise | 33.0dB |
| RPM | 3200 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C) |
| Approval Agency | cURus, TUV |
| Current Rating (Amps) | 0.090A |
| Voltage Range | 8 ~ 16VDC |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Lifetime @ Temp | 60000 Hrs @ 45?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1250-ND | 1 | 440 | 1 | |
| Onlinecomponents.com | OD8015-12HB | 1 | 1 | 1 @ $8.07, 2 @ $7.67, 26 @ $7.29, 101 @ $6.92, 501 @ $6.68, 1001 @ $6.35 | |
 Radwell | OD8015-12HB | 1 | 3 | 1 | |
 arcade-electronics.com | ORI-OD8015-12HB | 1 | -2 | 1 | 1 @ $10.29 |
| Hotenda | H1900743 | 1 | 57 | 1 | 1 @ $9.98, 10 @ $9.50, 25 @ $8.91, 100 @ $7.90, 250 @ $7.42, 500 @ $7.28 |
 Carlton Bates Company | 40308486293 | 1 | 1 | 1 @ $0.00 | |
| OD801512HB | 1 | 1 | |||
| AmazonSC | B00KI3QDZK | 1 | 1 | 1 @ $30.23 | |
| Newark | 89AH2603 | 1 | 1 | ||
| Digi-Key | 2621155 | 1 | 1992 | 1 | 1 @ $12.36, 10 @ $11.80, 25 @ $11.10, 50 @ $10.68, 100 @ $9.83, 250 @ $9.20, 500 @ $9.06 |
 Arrow | OD8015-12HB | 1 | 1 | 1 | 1 @ $11.78, 10 @ $11.29, 100 @ $9.23, 1000 @ $8.99, 10000 @ $8.99 |
| Mouser | 670-OD801512HB | 1 | 67 | 1 | 1 @ $11.89, 10 @ $11.35, 100 @ $9.45, 1000 @ $8.36, 10000 @ $8.71 |
 we-supply.com | OD8015-12HB | 1 | 1 | 1 @ $12.89 | |
 Newark | 51AK1731 | 1 | 23 | 1 | 1 @ $14.77, 5 @ $14.43, 10 @ $13.94, 25 @ $13.18, 50 @ $12.42, 100 @ $11.67 |
 Galco | OD8015-12HB-ORIN | 1 | 1 | 1 @ $13.12 | |
| 10141982 | 1 | 1 | 1 @ $11.15 | ||
| us.rs-online.com | 70103611 | 1 | 75 | 1 | 1 @ $12.36, 10 @ $11.80, 25 @ $11.10, 50 @ $10.68, 100 @ $9.83, 250 @ $9.20 |
| OD8015-12HB | 1 | 23 | 1 | 1 @ $14.95 | |
 maraindustrial.com | 78790-86705 | 1 | 1 |
