Hamilton

Hamilton . S-SECK-83HMB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55GZ94
UnitOfMeasureEA
Weight38
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height6
jsonUrlData924526ffbdad25e5923b
length, width12
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-SECK-83HMB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9075130
tierPrice1520.14
urlhttps://www.zoro.com/hamilton-plate-caster-1040-lb-load-rating-s-seck-83hmb/i/G9075130/
Caster Sub-TypeSwivel
Load Rating1040 lb
Wheel Dia8 in
Wheel Width, Overall Wheel Width3 in
Wheel/Tread Hardness188 BHN
Leveling Caster, With Toe Plate, Non-Marking, NSF Listed, Includes Thread Guards, Includes Mounting FastenersNo
For Surface TypeConcrete
ESD Conductive, Includes Spanner BushingYes
Swivel Bearing Seal TypeOpen
StandardsICWM
Caster Frame MaterialSteel
Mounting Bolt Dia, Mounting Plate Thickness1/2 in
Caster Mounting TypePlate
FeaturesDurable, High Heat, Quiet Operation, Reliable
Tire StyleTubeless
TreadFlat
Tread ShapeStandard
Inside Bolt Hole Spacing3-3/8 in x 5-1/4 in
Outside Bolt Hole Spacing4-1/8 in x 6-1/8 in
Wheel/Tread Hardness RatingExtra Hard
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts

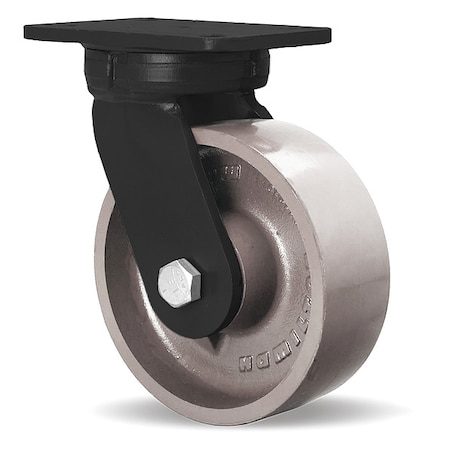

ItemHeat-Resistant Kingpinless Plate Caster
Mounting Plate Size5 1/4 in x 7 1/4 in
Operating Temperature Range-50 Degrees to 200 Degrees F
Swivel Lead2 1/4
Wheel TypeFlat-Free
For Axle Dia3/4 in
Swivel Raceway TypeSingle Ball
Wheel Bearing TypePrecision Ball
Wheel Core MaterialCast Iron
Wheel/Tread MaterialIron
Wheel Core TypeSolid
SeriesMagmaMax
Number of Mounting Holes4
Wheel/Tread Color, Core ColorSilver
Swivel Radius6 1/4 in
Wheel Bearing MaterialStainless Steel
Frame ConstructionForged
Frame FinishEnamel
Frame ColorBlack
Mounting Plate Bolt Hole PatternA
Swivel Lock TypeNo Lock Included
Caster Product GroupKingpinless Caster
Mounting Height10 1/2 in
Caster Brake TypeNo Brake Included
Load Rating Range1000 to 2999 lb
Swivel ConstructionKingpinless
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9075130111 @ $520.14
Grainger55GZ9411
