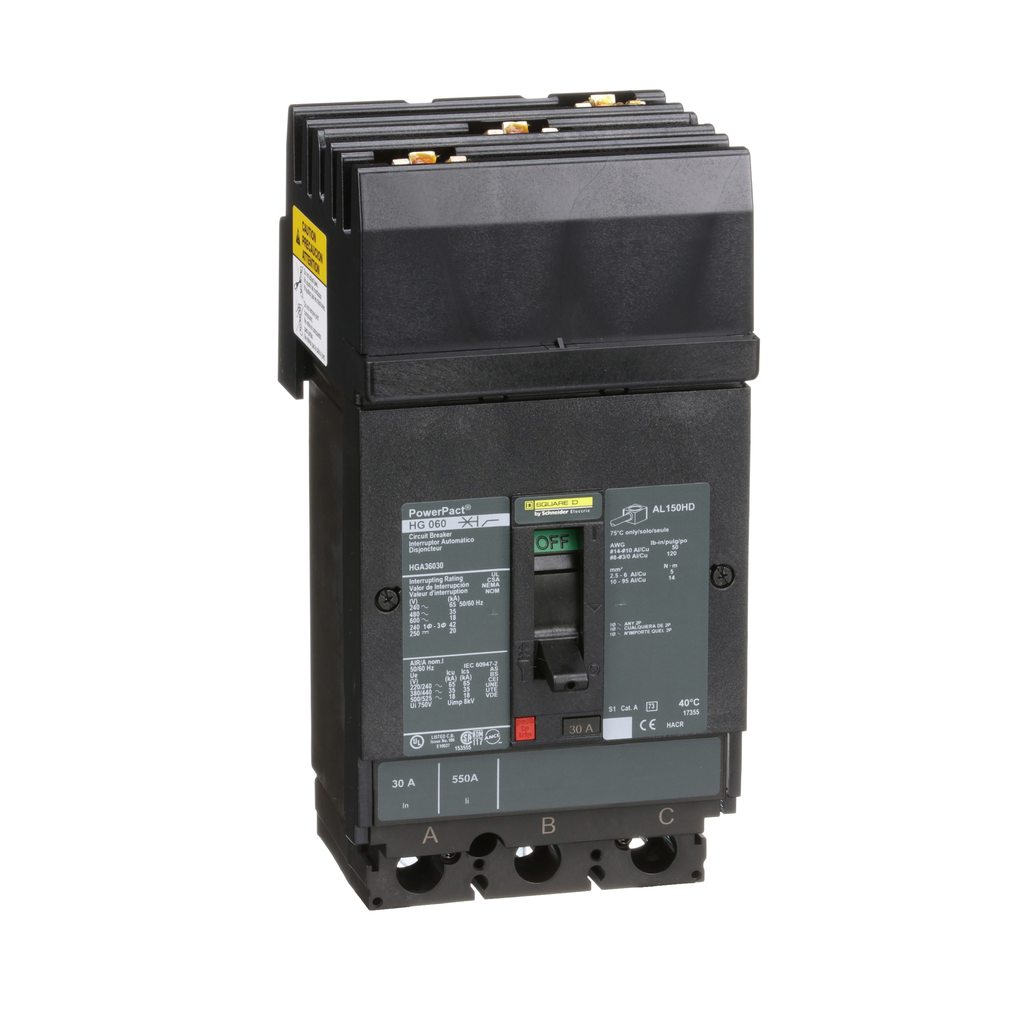

Circuit breaker, PowerPact H, 30A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC | Mayer Electric

Mayer Electric Supply . HGA36030

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameCircuit breaker, PowerPact H, 30A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC | Mayer Electric
UPC785901601364
Weight2.2
WeightUnitkg
Weight_AttribNet Weight
depth, length86.0
height163.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Circuit-breaker-PowerPacT-H-thermal-magnetic-I-Line-30A-3-pole-18-kA-600-VAC-phase-ABC-80-rated-785901601364
jsonUrlData29002cd57-8759-45d4-a37f-abb200c9d2ad
length_AttribDepth
moq, multiple, tierMinQty1, Quantity Per Set1
MPNHGA36030
qtyInStock0
SKUSQDHGA36030
tierPrice11019.10
width104.0
width_AttribWidth
Product Or Component Typecircuit breaker
Product NamePowerPact H
RangePowerPact
Device Applicationdistribution
Warranty18 months
Mounting ModeI-Line bracket)
Network Frequency50/60 Hz
Terminal IdentifierAL150HD
[Ics] Rated Service Breaking Capacity65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit Technologythermal-magnetic
Height163 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3
Tightening Torque5-5 N.m 2.5-6 mm? (AWG 14...AWG 10) || 14-14 N.m 10-95 mm? (AWG 8...AWG 3/0)
Mounting Supportbracket
Breaking Capacity CodeG
Magnetic Tripping Current750-750 A
Local Signallingswitched off (OFF) 1 trip indicator green)
Number Of Slots2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Protected Poles Description3t
Electrical ConnectionI-Line connection line || lugs load
Mounting Height4.5 in
Net Weight2.2 kg
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Magnetic Hold Current350 A
Control Typetoggle
Wire Stripping Length16 mm
Utilisation Categorycategory A
Line Rated Current30-30 A
Continuous Current Rating80 %
Breaking Capacity65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Suitability For Isolationyes IEC 60947-2
Communication InterfaceModbus || Ethernet
Poles Description3P
Awg GaugeAWG 14...AWG 3/0 aluminium/copper terminal
ColorBlack
Width104 mm
Depth86 mm
Phase ConnectionABC
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP1311006EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI1311006EN
Eu Rohs DirectiveCompliant
Ambient Air Temperature For Operation-2-70 ?C
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product CertificationsUL || CSA || NOM
Ip Degree Of Protectionfront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Ambient Air Temperature For Storage-50-85 ?C
Quality LabelsCE

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDHGA36030111 @ $1019.10
