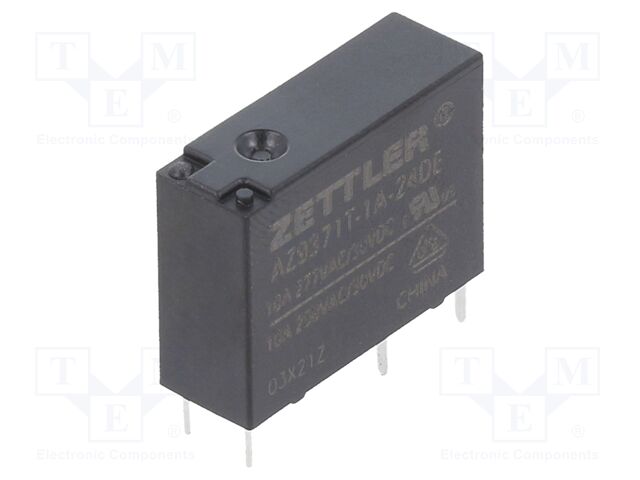

ZETTLER AZ9371T-1A-24DE | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A; 10A/277VAC
ZETTLER AZ9371T-1A-24DE | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A; 10A/277VA
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ9371T-1A-24DE | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A; 10A/277VAC |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 15c4d1f1f4718f353a05b984d9dadb4b. |
| jsonUrlData2 | a92261a44bd243973a72 |
| keywords | ZETTLER, AZ9371T-1A-24DE |
| MPN, SKU | AZ9371T-1A-24DE |
| qtyInStock | 202 |
| snippet | ZETTLER AZ9371T-1A-24DE | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A; 10A/277VA |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 0.97 |
| tierPrice2 | 0.82 |
| tierPrice3 | 0.75 |
| tierPrice4 | 0.69 |
| tierPrice5 | 0.63 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 24V DC |
| Contact current max | 10A |
| AC contacts rating @R | 10A / 277V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 30V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 2.88k? |
| Body dimensions | 20.5x7.2x15.3mm |
| Coil power consumption | 113mW |
| Operating temperature | -40...105?C |
| Relay series | AZ9371 |
| Contact resistance | 100m? |
| Terminal pitch | 7mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ9371T-1A-24DE | 1 | 202 | 1 | 1 @ $0.97, 5 @ $0.82, 25 @ $0.75, 100 @ $0.69, 500 @ $0.63 |
