Tritan

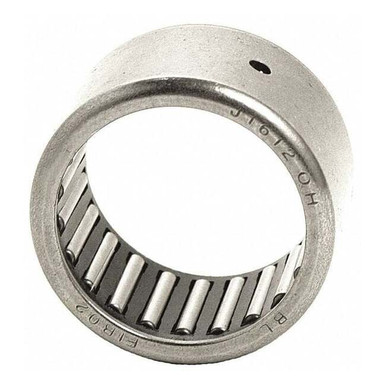

Needle Roller Bearing, Drawn Cup, Bore Dia. (In.) 1.000, Outside Dia. (In.) 1.250 model JTT1614 by Bearings Limited and other Needle Roller Bearingss.

Tritan . JTT1614

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameTritan
DimensionUnitinch
GraingerSku35TX81
UPC888569026156
UnitOfMeasureEA
Weight0.1
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height0.88
jsonUrlData924526ffbdad25e5923b
length, width1.25
moq, multiple, tierMinQty11
MPNJTT1614
qtyInStock177
qtyInStockOverride-2
SKUG2097448
tierPrice19.19
urlhttps://www.zoro.com/tritan-needle-brg-drawn-cup-bore-1000-in-jtt1614/i/G2097448/
ItemNeedle Roller Bearing
TypeDrawn Cup
Bore Dia (In )1.0 in
Bore Dia (mm)25.4 mm
Outside Dia (In )1.25 in
Outside Dia (mm)31.75 mm
Width (In ), Overall Width0.875 in
Width (mm)22.225 mm
Static Load Capacity (N)37,600 N
Dynamic Load Capacity (Lb )5,130 lb
Max RPM7,300 RPM
Temp Range (F)-5 Degrees to 250 Degrees F
Static Load Capacity (Lb )8,450 lb
Dynamic Load Capacity (N)22,840 N
Cage MaterialSteel
Number of RowsOne
Bearing DesignJTT
Needle Bearing TypeDrawn Cup Needle Roller Bearing
Seal MaterialNBR
Cage Material Grade, Ring Material Grade, Roller Material GradeANSI 52100
Static Radial Load Capacity6,480 lbf
Maximum Temperature250 Degrees F
Seal TypeContact
Full ComplementNo
System of MeasurementInch
Lubrication OpeningsOil Hole
Lubricant MaterialGrease, Oil
Outside Diameter1 1/4 in
Minimum Temperature-5 Degrees F
Maximum Speed12,000 RPM Oil, 7,600 RPM Grease
Bore Diameter1 in
Dynamic Radial Load Capacity4,080 lbf
Bearing Industry Number1614
Ring Material, Roller MaterialAlloy Steel
ClosureDouble Sealed
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2097448117711 @ $9.19
simsupply.comZO-G209744815711 @ $17.63
Grainger35TX8111
