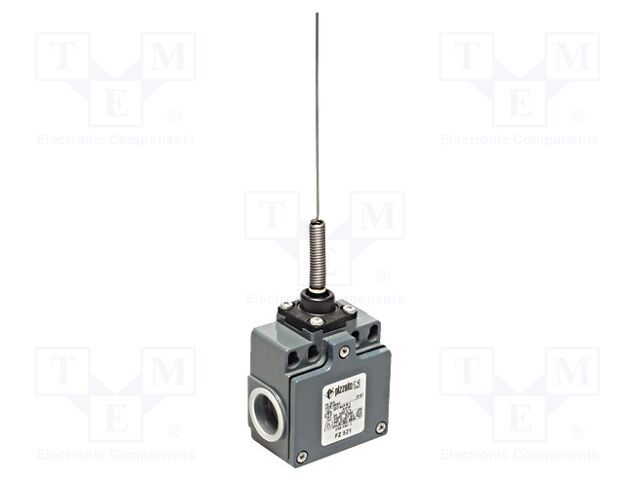

PIZZATO ELETTRICA FZ 521 | Limit switch; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5; IP67
PIZZATO ELETTRICA FZ 521 | Limit switch; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5; IP6
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PIZZATO ELETTRICA |
|---|---|
| CategoryL1 | Automation |
| CategoryL2 | Regulation and Control |
| CategoryL3 | Limit Switches |
| Extra Product Name | PIZZATO ELETTRICA FZ 521 | Limit switch; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5; IP67 |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | d11fa106f5641258c92d3d85782351e9. |
| jsonUrlData2 | 88f80a7f66e3f192405f |
| keywords | PIZZATO ELETTRICA, FZ 521, FZ521 |
| MPN | FZ 521 |
| qtyInStock | 3 |
| SKU | FZ521 |
| snippet | PIZZATO ELETTRICA FZ 521 | Limit switch; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5; IP6 |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierPrice1 | 15.13 |
| tierPrice2 | 14.12 |
| tierPrice3 | 13.11 |
| Type of sensor | limit switch |
| Kind of actuator | plunger on spring loaded element, total length 116,5mm |
| Output configuration | NO + NC |
| Contact current max | 10A |
| Switched voltage | max. 250V DC, |
| Connection | PG13,5 |
| IP rating | IP67 |
| Body dimensions | 44.5x50x31.5mm |
| Number of mounting holes | 4 |
| Operating temperature | -25...80?C |
| Body material | metal |
| AC contacts rating @R | 6A / 250V AC |
| DC contacts rating @R | 6A / 24V DC |
| Mechanical durability | 20000000 cycles |
| Mounting holes pitch | 20...22mm, |
| Switches features | snap action contacts |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| FZ521 | 1 | 3 | 1 | 1 @ $15.13, 5 @ $14.12, 10 @ $13.11 | |
| FZ 521 | 1 | 1 | 1 @ $27.51 |
