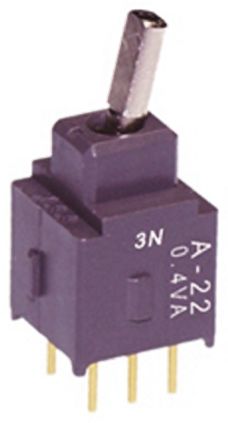

NKK . A-22HP
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | NKK |
|---|---|
| moq, multiple | 1 |
| MPN | A-22HP |
| SKU | 475-1875 |
| Switch Operation | Latching |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -30 ? +85°C |
| Contact Current Rating | 100 mA @ 28 V ac/dc |
| Actuator Length | 6.3mm |
| Actuator Material | Nickel Plated Brass |
| Mounting Type | PCB |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Contact Material | Gold Plated Brass (Stationary); Gold Plated Phosphor Bronze (Movable) |
| Terminal Type | Through Hole |
| Contact Resistance | 50m? |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 475-1875 | 1 | 1 |
