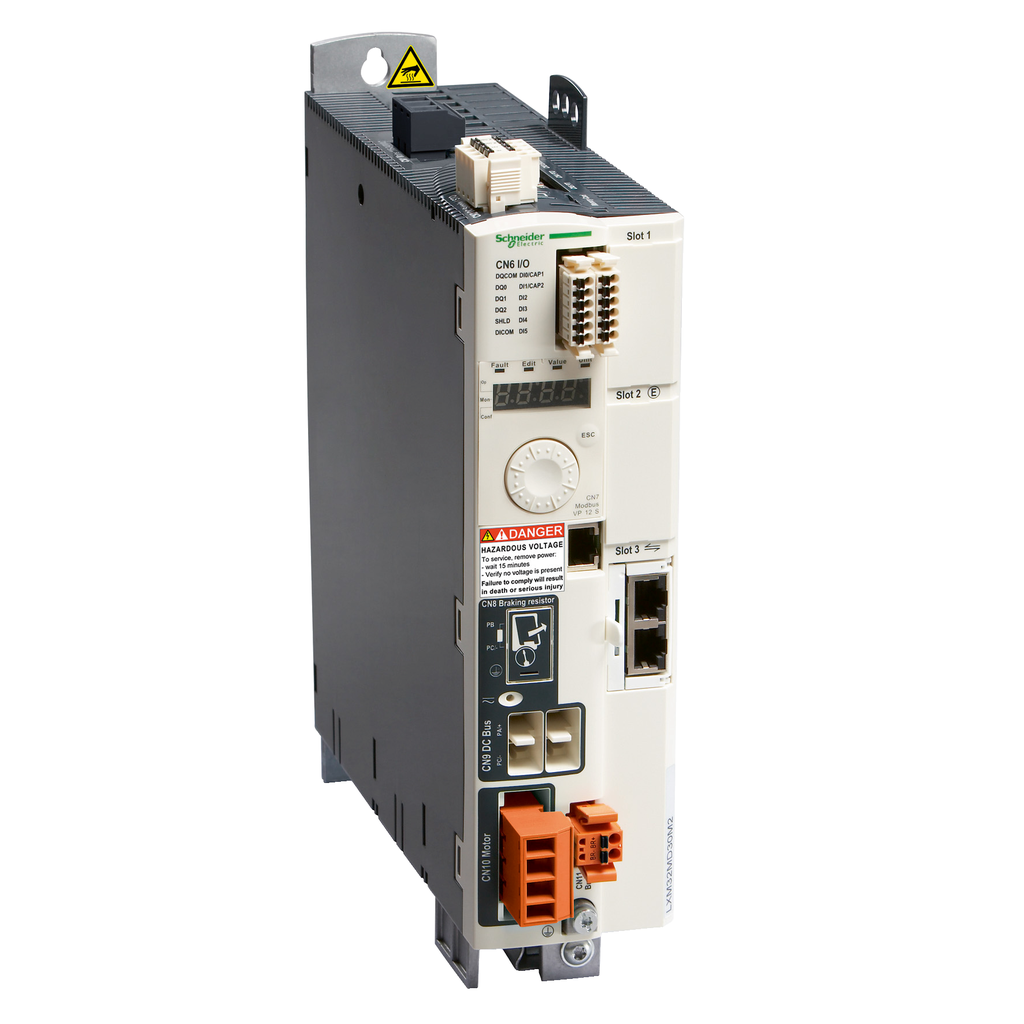

motion servo drive, Lexium 32, 10A, single phase, supply voltage 115 to 230V, 0.5 to 1kW | Mayer Electric

Shop SQUARE D at Mayer. Motion servo drive - Lexium 32 - single phase supply voltage 115/230V - 0.5/1kW

Mayer Electric Supply . LXM32MD18M2

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product Namemotion servo drive, Lexium 32, 10A, single phase, supply voltage 115 to 230V, 0.5 to 1kW | Mayer Electric
UPC3606480076848
Weight1.9
WeightUnitkg
Weight_AttribNet Weight
depth, length237.0
height270.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Motion-servo-drive-Lexium-32-single-phase-supply-voltage-115-230V-0-5-1kW-785901672685
jsonUrlData26ee4b680-fad3-4acd-bde7-abde00f7b64c
keywordsSQUARE D, Mayer SQUARE D, 785901672685, LXM32MD18M2
length_AttribDepth
moq, multiple, tierMinQty11
MPNLXM32MD18M2
qtyInStock0
SKUSQDLXM32MD18M2
snippetShop SQUARE D at Mayer. Motion servo drive - Lexium 32 - single phase supply voltage 115/230V - 0.5/1kW
tierPrice11808.61
width68.0
width_AttribWidth
StandardsEN/IEC 61800-5-1 || EN/IEC 61800-3
Product CertificationsT?V || UL || CSA
Ip Degree Of ProtectionIP20 EN/IEC 60529 || IP20 EN/IEC 61800-5-1
Ambient Air Temperature For Operation0-50 ?C UL
Shock Resistance15 gn 11 ms EN/IEC 60028-2-27
Vibration Resistance1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
Relative HumidityClass 3K3 (5 to 85 %) without condensation IEC 60721-3-3
Environmental Characteristicclasses 3C1 IEC 60721-3-3
Ambient Air Temperature For Storage-25-70 ?C
Pollution Degree2 EN/IEC 61800-5-1
Type Of Coolingintegrated fan
Warranty18 months
Mercury Free, Pvc Free, Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
China Rohs RegulationX
Environmental DisclosureENVPEP110705EN
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110605EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Protection Typeagainst reverse polarity inputs signal || against short-circuits outputs signal
Discrete Output Logicpositive or negative DO)EN/IEC 61131-2
Number Of Addresses1-247 Modbus
Connector TypeRJ45 (labelled CN7) Modbus
Maximum Leakage Current30 mA
Response Time On Output250 ?s DO)discrete
Physical Interface2-wire RS485 multidrop Modbus
Sampling DurationDI 0.25 ms discrete || 0.25 ms
Signalling Functiondisplay of faults 7 segments
Switching Frequency8 kHz
Discrete Input Voltage24 V DC capture || 24 V DC logic || 24 V DC safety
Height270 mm
Electrical Isolationbetween power and control
Product Compatibilityservo motor BMH 70 mm, 1 || servo motor BMH 70 mm, 3 || servo motor BSH 70 mm, 3 || servo motor BSH 100 mm, 1 || servo motor BMH 100 mm, 2 || servo motor BSH 100 mm, 2
Type Of Cablesingle-strand IEC cable 50-50 ?C) copper 90 ?C XLPE/EPR
Width68 mm
Overvoltage CategoryIII
Tightening TorquePA/+, PBI, PBe 0.5-0.5 N.m || CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m
Depth237 mm
Discrete Output Number3
Discrete Input Number2 capture || 2 safety || 4 logic
Discrete Output Typelogic DO)24 V DC
Operating Positionvertical +/- 10 degree
Safety LevelSIL 3 EN/IEC 61508 || PL = e ISO 13849-1
Transmission Rate9600, 19200, 38400 bps 40-40 m Modbus
Discrete Input Typecapture CAP || logic DI || safety compliment of STO_A, compliment of STO_B
Status Led1 LED (Red) servo drive voltage
Electrical Connectionterminal 3 mm?, AWG 12 PA/+, PBI, PBe) || terminal 5 mm?, AWG 10 CN1) || terminal 5 mm?, AWG 10 CN10)
MarkingCE
Braking Current50 mA
Net Weight1.9 kg
Emc Filterintegrated
Output Current 3S Peak10 A 115 V 5 s
[Us] Rated Supply Voltage100...120 V - 15...10 % || 200...240 V - 15...10 %
Nominal Power0.5 kW 115 V 8 kHz || 1 kW 230 V 8 kHz
Network Frequency47.5...63 Hz
Phasesingle phase
Format Of The Drivebook
Line Current7.2 A 88 % 380 V, with external line choke 1 mH || 6 A 98 % 480 V, with external line choke 1 mH || 8.5 A 147 % 115 V, without line choke || 6.2 A 159 % 380 V, without line choke
Continuous Power500 W 115 V || 3300 W 230 V
Supply Frequency50/60 Hz - 5...5 %
Range Of ProductLexium 32
Supply Voltage Limits85-132 V || 170-264 V
Continuous Output Current6 A 8 kHz
Device Short NameLXM32M
Product Or Component Typemotion servo drive

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLXM32MD18M2111 @ $1808.61
