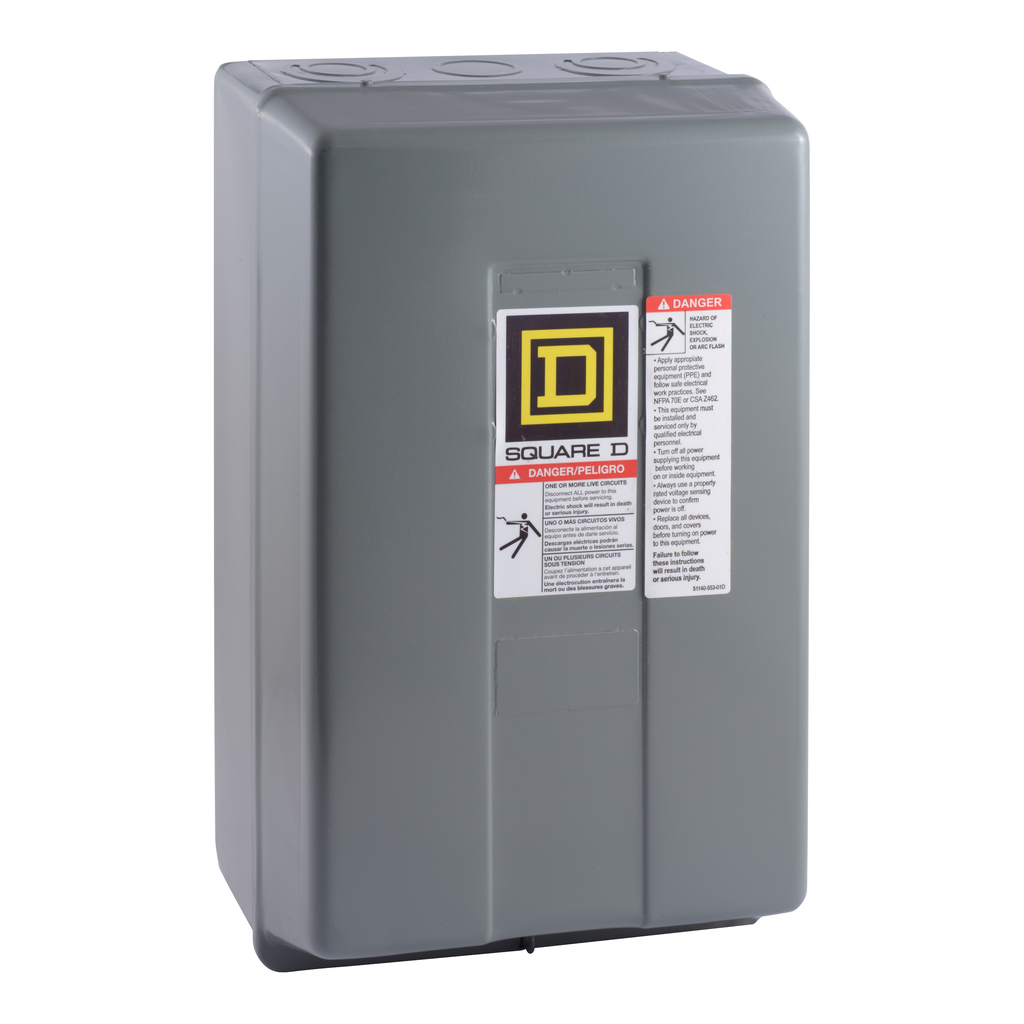

Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600 V, 24 VAC 60 Hz coil, NEMA 1 | Mayer Electric

Mayer Electric Supply . 8903LG60V01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameContactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600 V, 24 VAC 60 Hz coil, NEMA 1 | Mayer Electric
UPC785901459200
depth, length153.0
height322.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Contactor-Type-L-multipole-lighting-electrically-held-30A-6-pole-600-V-24-VAC-60-Hz-coil-NEMA-1-785901459200
jsonUrlData2253f5014-a829-4aea-a9f4-abd200613800
length_AttribDepth
moq, multiple, tierMinQty11
MPN8903LG60V01
qtyInStock0
SKUSQD8903LG60V01
tierPrice1777.97
width198.0
width_AttribWidth
Range Of Product8903L
Control Circuitseparate control circuit
Product Or Component TypeElectrically Held Lighting Contactor
Warranty18 months
Local Signallingno indicator
Height322 mm
Control Typeno control units
[Uc] Control Circuit Voltage24 V AC 60 Hz
Hold-In Power Consumption In Va30-30 VA 60 Hz
Electrical Connectionscrew-clamp terminals
Width198 mm
Depth153 mm
Line Rated Current20-20 A tungsten || 30-30 A fluorescent
Inrush Power In Va150-150 VA 60 Hz
Poles Description6P 6 NO
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1407018EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above the threshold
Halogen Content PerformanceHalogen free plastic parts product
Product CertificationsUL Listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD8903LG60V01111 @ $777.97
