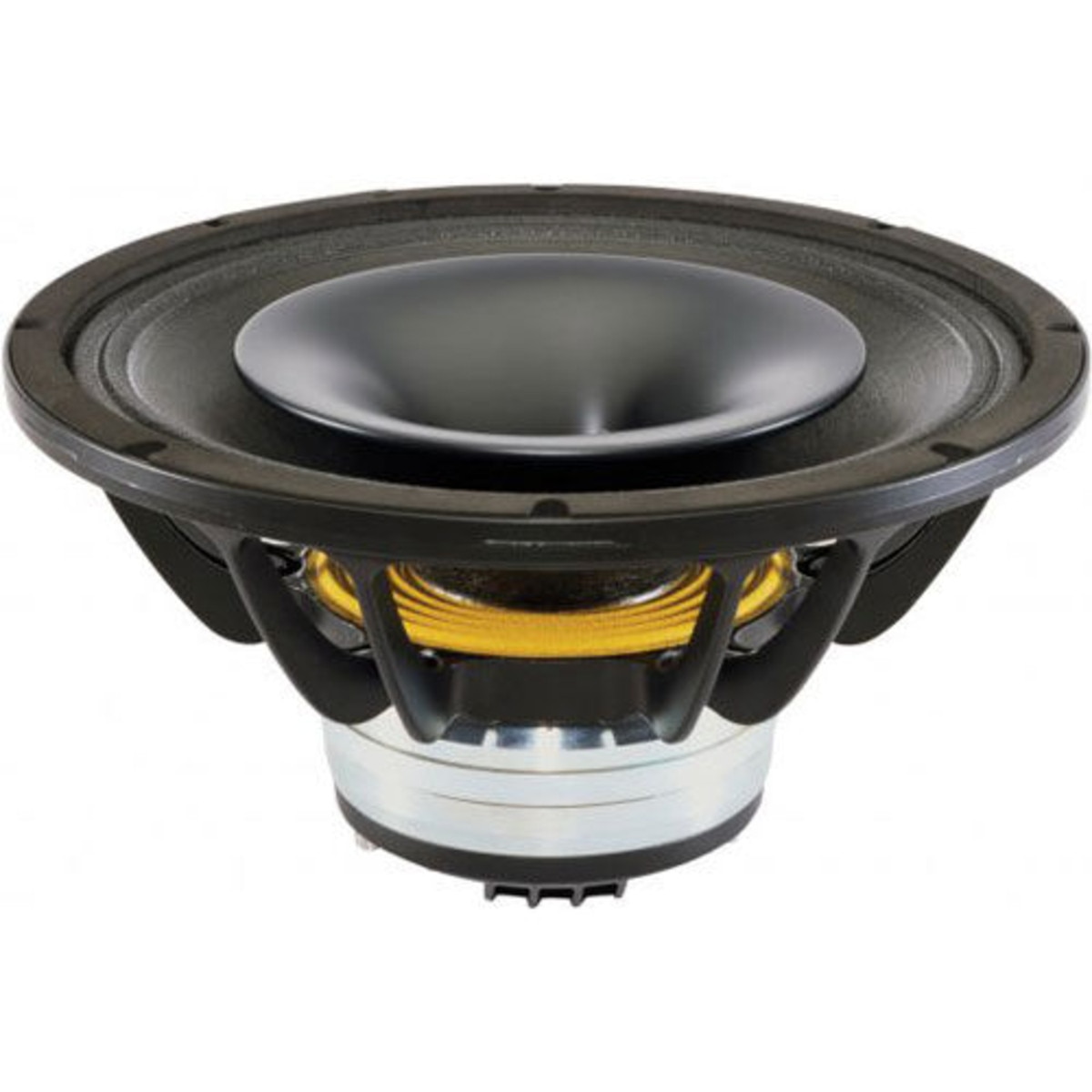

B&C 12HCX76 12" Neodymium Coaxial Speaker 60 x 40 Degree

B&C 12HCX76 12" Neodymium Coaxial Speaker 60 x 40 Degree. Part Number: 294-577 by B&C Speakers.

B&C Speakers . 12HCX76

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12HCX76 12" Neodymium Coaxial Speaker 60 x 40 Degree
UPC844632086168
Weight14.45
WeightUnitlbs
depth, length6.6
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12HCX76
qtyInStockOut of Stock
SKU, Part Number294-577
snippetB&C 12HCX76 12" Neodymium Coaxial Speaker 60 x 40 Degree. Part Number: 294-577 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance8?
Frequency Response45 to 18,000Hz
Sensitivity107dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)42Hz
DC Resistance (Re)5?
Voice Coil Inductance (Le)0.8mH
Mechanical Q (Qms), # Mounting Holes8
Electromagnetic Q (Qes)0.2
Total Q (Qts)0.19
Compliance Equivalent Volume (Vas)4.2ft?
BL Product (BL)17.6T?m
Diaphragm Mass Inc Airload (Mms)47g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)522cm?
Cone MaterialPaper
Voice Coil Wire MaterialCopper
Magnet MaterialNeodymium
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.14"
Depth6.6"
Sealed Volume0.5ft?
Sealed F3182.3Hz
Vented Volume1.5ft?
Vented F362.7Hz
