LVR055K-2 Littelfuse Inc. | Circuit Protection | DigiKey

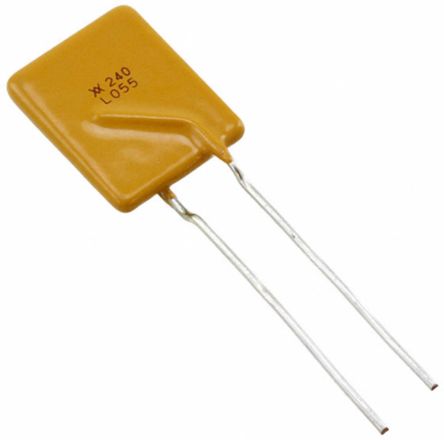

Polymeric PTC Resettable Fuse 240V (265V Int) 550 mA Ih Through Hole Radial, Disc
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Littelfuse Inc. |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | LVR055K-2 Littelfuse Inc. | Circuit Protection | DigiKey |
| atoms, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 0.882 |
| height_Attrib | Height - Seated (Max) |
| moq, multiple | 1,000 |
| MPN | LVR055K-2 |
| qtyInStock | 380 |
| SKU | 1773053 |
| snippet | Polymeric PTC Resettable Fuse 240V (265V Int) 550 mA Ih Through Hole Radial, Disc |
| tierMinQty10, tierMinQty5 | 100 |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierMinQty4, tierMinQty9 | 50 |
| tierMinQty6 | 250 |
| tierMinQty7 | 500 |
| tierPrice1 | 1.541 |
| tierPrice10 | 0.83970 |
| tierPrice2 | 1.4972999999999999 |
| tierPrice3 | 1.4006999999999998 |
| tierPrice4 | 1.1587399999999999 |
| tierPrice5 | 0.9656549999999999 |
| tierPrice6 | 0.9415279999999999 |
| tierPrice7 | 0.796674 |
| tierPrice9 | 1.00760 |
| Category | Circuit Protection |
| Series | PolySwitch?, LVR |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V (265V Int) |
| Current - Max | 7 A |
| Current - Hold (Ih) (Max) | 550 mA |
| Current - Trip (It) | 1.25 A |
| Time to Trip | 26 s |
| Resistance - Initial (Ri) (Min) | 450 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.45 Ohms |
| Operating Temperature | -20?C ~ 85?C |
| Ratings, Thickness (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.551" L x 0.161" W (14.00mm x 4.10mm) |
| Height - Seated (Max) | 0.882" (22.40mm) |
| Lead Spacing | 0.200" (5.08mm) |
| Approval Agency | CQC, CSA, TUV, UL |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1773053 | 1000 | 380 | 1000 | 1 @ $1.54, 5 @ $1.50, 10 @ $1.40, 50 @ $1.16, 100 @ $0.97, 250 @ $0.94, 500 @ $0.80 |
| iodParts | LVR055K-2 | 1000 | 3000 | 1000 | 1000 @ $0.39, 2000 @ $0.38 |
| 869-7378 | 1 | 1 | |||
| Future Electronics | C010663052 | 1000 | 1000 | 1000 @ $0.57 | |
| Newark | 34AC3142 | 1000 | 1000 | 1000 @ $0.72, 2000 @ $0.65, 4000 @ $0.59, 6000 @ $0.57, 10000 @ $0.55 | |
| Win Source | LVR055K-2 | 1 | 100 | 1 | |
| Digi-Key | 3592845 | 1 | 380 | 1 | 1 @ $1.54, 5 @ $1.50, 10 @ $1.40, 50 @ $1.16, 100 @ $0.97, 250 @ $0.94, 500 @ $0.80, 1000 @ $0.70, 2000 @ $0.58, 3000 @ $0.57 |
| Digi-Key | 7496942 | 1000 | 992 | 1000 | 1 @ $1.53, 5 @ $1.48, 10 @ $1.39, 50 @ $1.15, 100 @ $0.96, 250 @ $0.93, 500 @ $0.79 |
| RS Online | 8697378 | 1 | 1 | ||
| RS Online | 1648207 | 1 | 1 |
