Where can I buy YA30L90?

YA30L90 is available from Megadepot, usmegastore.com, Platt.com, Galco. See pricing comparison above.

What is the price of YA30L90?

Pricing ranges from $28.78 to $38.79 depending on quantity and distributor.

Yes, YA30L90 is currently in stock at multiple distributors with immediate availability.

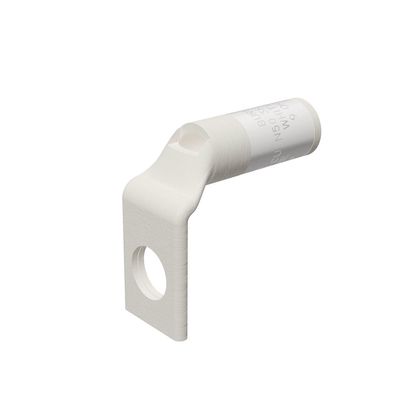

Burndy 25020127 Copper Compression Lug, 1 Hole, 300 Kcmil YA30L90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM

Name: Burndy 25020127 Copper Compression Lug, 1 Hole, 300 Kcmil YA30L90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Brand: Burndy
Availability: OutOfStock

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Burndy
DimensionUnit	mm
height	48.00599999999999
height_Attrib	Dimension - Height inch
length	41.0
length_Attrib	Dimension - L Length Overall mm
moq, multiple, Physical Attribute - Number of Holes	1
MPN, SKU	YA30L90
qtyInStock	0
snippet	Burndy 25020127 Copper Compression Lug, 1 Hole, 300 Kcmil YA30L90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width	30.479999999999997
width_Attrib	Dimension - Pad Width inch
Color Code	White
Connector Type	Terminal
Die Index	17;298
Feature - Barrel Type	Standard
Material, Conductor - Material	Copper
Plated	Y
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
Type	Standard Barrel, Tin Plated
Dimension - B Length fraction, Dimension - Strip Length inch	1 in
Dimension - B Length inch	1.03 in
Dimension - Bolt Hole Size inch	0.52 in
Dimension - Bolt Size fraction, Dimension - Stud Size inch	1/2
Dimension - D inch	1.08 in
Dimension - Height inch	1.89 in
Dimension - Hole Size mm	13 mm
Dimension - L Length Overall mm	41 mm
Dimension - Length Overall inch	1.61 in
Dimension - N inch	0.53 in
Dimension - Outside Diameter inch	0.81 in
Dimension - Pad Width inch	1.20 in
Dimension - Z inch	0.55 in
Physical Attribute - Tongue Angle	90 Degree
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000
Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range	300 (91) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range	300 kcmil
Certification - CSA Approved, UL Listed	Yes
Certification - UL Recognized, Certification - cULus	No
Industry Standard(s)	UL467
Standards - RoHS Compliance Status	CM

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Megadepot	YA30L90	1		1
usmegastore.com	YA30L90	1	-2	1	1 @ $28.78
Platt.com	2099431	1		1
Galco	YA30L90-BURN	10		10	1 @ $38.79
