IXGR48N60C3D1 IXYS | Discrete Semiconductor Products | DigiKey

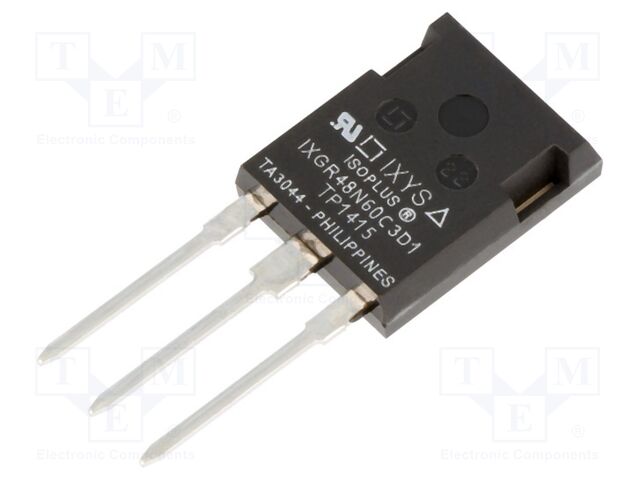

IXGR48N60C3D1 SemiConductor - CASE: TO247 MAKE: IXYS
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXGR48N60C3D1 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | IXGR48N60C3D1 |
| qtyInStock | 0 |
| SKU | IXGR48N60C3D1-ND |
| Part Status | Active |
| IGBT Type | PT |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 30A |
| Switching Energy | 410?J (on), 230?J (off) |
| Input Type | Standard |
| Td (on/off) @ 25?C | 19ns/60ns |
| Test Condition | 400V, 30A, 3Ohm, 15V |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Package / Case, Supplier Device Package | ISOPLUS247? |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 56 A |
| Current - Collector Pulsed (Icm) | 230 A |
| Power - Max | 125 W |
| Gate Charge | 77 nC |
| Reverse Recovery Time (trr) | 25 ns |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXGR48N60C3D1-ND | 1 | 1 | ||
| Little Diode | IXGR48N60C3D1 | 1 | 1 | 1 @ $29.71 | |
| IXGR48N60C3D1 | 1 | 128 | 1 | 1 @ $10.58, 3 @ $9.52, 10 @ $8.41, 30 @ $7.05 | |
| Win Source | IXGR48N60C3D1 | 1 | 4870 | 1 | |
| Future Electronics | 4001562 | 30 | 30 | 30 @ $8.06, 60 @ $6.65, 150 @ $6.37 | |
| Digi-Key | 2117159 | 1000 | 883 | 1000 | 1 @ $11.58, 10 @ $10.46, 100 @ $8.66, 500 @ $7.54, 1000 @ $6.89 |
