Tritan

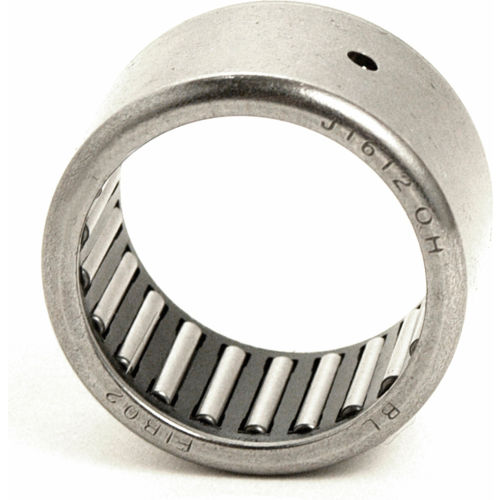

Needle Roller Bearing, Drawn Cup, Bore Dia. (In.) 0.688, Outside Dia. (In.) 0.875 model J116 OH by Bearings Limited and other Needle Roller Bearingss.

Tritan . J116 OH

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameTritan
DimensionUnitinch
GraingerSku35TX22
UPC888569026286
UnitOfMeasureEA
Weight0.06
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height, length2.8
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty11
MPNJ116 OH
qtyInStock18
qtyInStockOverride-2
SKUG2704847
tierPrice15.50
urlhttps://www.zoro.com/tritan-needle-brg-drawn-cup-bore-0688-in-j116-oh/i/G2704847/
width0.8
ItemNeedle Roller Bearing
TypeDrawn Cup
Bore Dia (In )0.688 in
Bore Dia (mm)17.475 mm
Outside Dia (In )0.875 in
Outside Dia (mm)22.225 mm
Width (In ), Overall Width0.375 in
Width (mm)9.525 mm
Dynamic Load Capacity (N)6,910 N
Max RPM20,300 RPM
Dynamic Load Capacity (Lb )1,550 lb
Static Load Capacity (N)11,380 N
Temp Range (F)-5 Degrees to 250 Degrees F
Static Load Capacity (Lb )2,560 lb
Cage MaterialSteel
Number of RowsOne
Maximum Temperature250 Degrees F
Ring Material Grade, Roller Material Grade, Cage Material GradeANSI 52100
Lubrication OpeningsOil Hole
ClosureOpen
Lubricant MaterialGrease, Oil
Static Radial Load Capacity2,100 lbf
Outside Diameter7/8 in
Full ComplementNo
Ring Material, Roller MaterialAlloy Steel
System of MeasurementInch
Maximum Speed11,000 RPM Grease, 18,000 RPM Oil
Bearing Industry Number116
Minimum Temperature-5 Degrees F
Bore Diameter11/16 in
Seal Type, Seal MaterialNot Applicable
Needle Bearing TypeDrawn Cup Needle Roller Bearing
Dynamic Radial Load Capacity1,600 lbf
Bearing DesignJ
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG270484711811 @ $5.50
simsupply.comZO-G2704847111 @ $12.23
Global IndustrialWBB20786041Usually ships in 5 to 8 days11 @ $4.49
