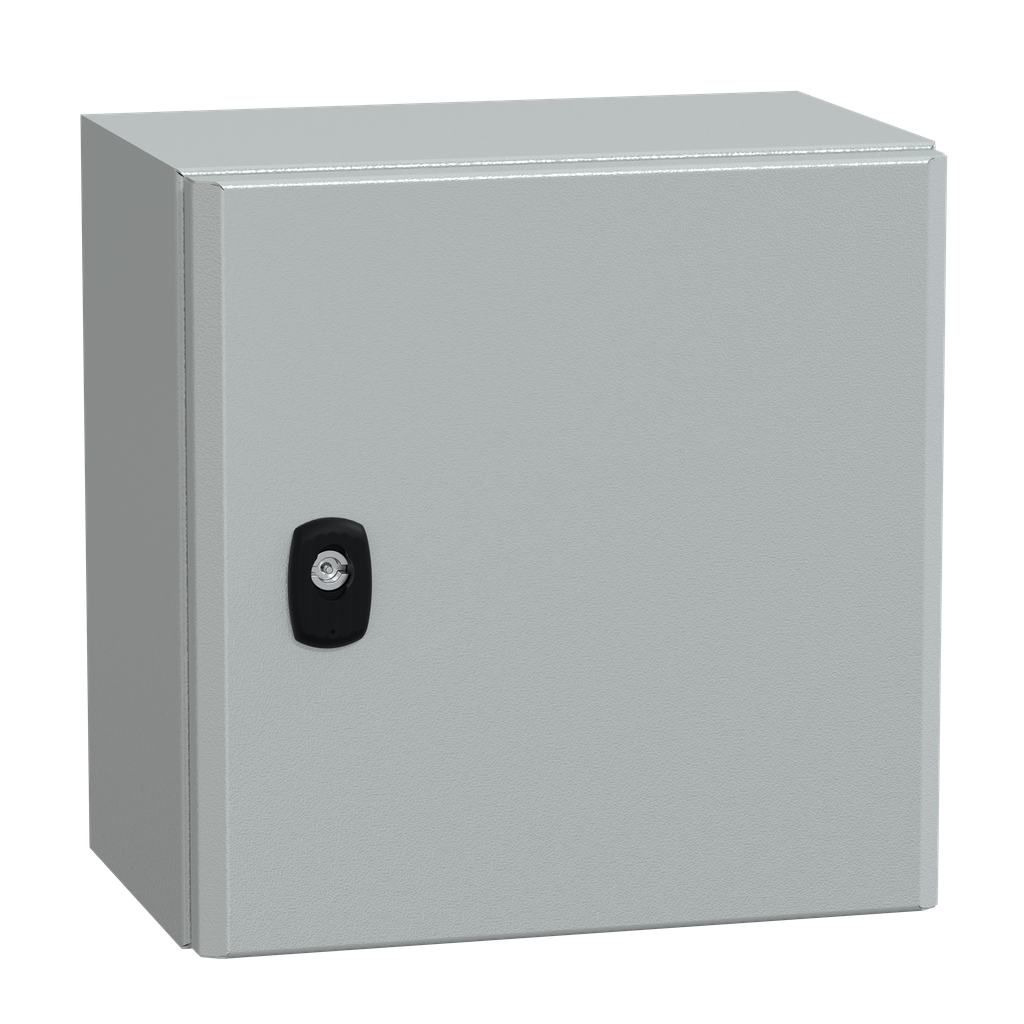

Wall mounted steel enclosure, Spacial S3D, plain door, without mounting plate, 300x300x200mm, IP66, IK10 | Mayer Electric

SQUARE D . SQDNSYS3D3320

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameWall mounted steel enclosure, Spacial S3D, plain door, without mounting plate, 300x300x200mm, IP66, IK10 | Mayer Electric
UPC3606480159725
Weight4.562
WeightUnitkg
Weight_AttribNet Weight
color, ColorGray RAL 7035)
height, width300.0
height_AttribEnclosure Nominal Height
jsonUrlData/Product/SQUARE-D-Spacial-S3D-plain-door-w-o-mount-plate-H300xW300xD200-IP66-IK10-RAL7035-3606480159725
jsonUrlData2975239ae-aa95-4f2b-aa82-aeea0056d601
length200.0
length_AttribEnclosure Nominal Depth
moq, multiple, tierMinQty11
MPN, SKUSQDNSYS3D3320
qtyInStock0
tierPrice169.34
width_AttribEnclosure Nominal Width
Type Of Gland Platestandard
Installation Accessory Typewall-mounting
Product Or Component Typecompact enclosure
Product NameSpacial S3D
Device Composition1 body || 1 door || 1 lock || 1 cable gland plate
Enclosure Nominal Height, Enclosure Nominal Width300 mm
RangeSpacial
Door TypeSolid
Enclosure Nominal Depth200 mm
Device Applicationmulti-purpose
Mounting Plate Descriptionwithout mounting plate
Warranty18 months
Product CertificationsDNV || BV || UL || LR || cUL || GL
Accessibility For Operationfront
Removable Partsdoor by hinges || cable gland plate by screws
StandardsIEC 62208
Variant Particularitysingle piece body || gutter-shaped front rail double sheet thickness
Lock Type3 mm double-bar lock
Net Weight4.562 kg
Door Opening Sidereversible 120 ?)
Number Of Doorsfront face 1
Materialsteel
Surface Finishepoxy-polyester powder
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP100104EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ik Degree Of ProtectionIK10 IEC 62262
Nema Degree Of ProtectionNEMA 4X/13
Ip Degree Of ProtectionIP66 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDNSYS3D3320111 @ $69.34
